JBL L75ms Music System

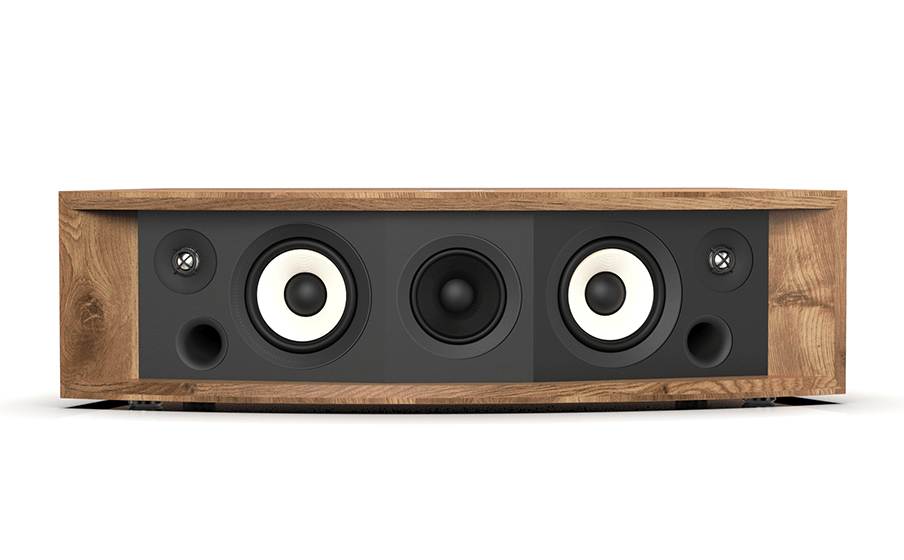

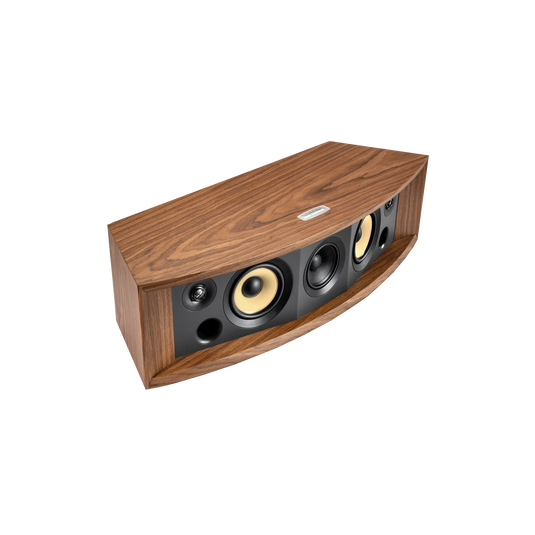

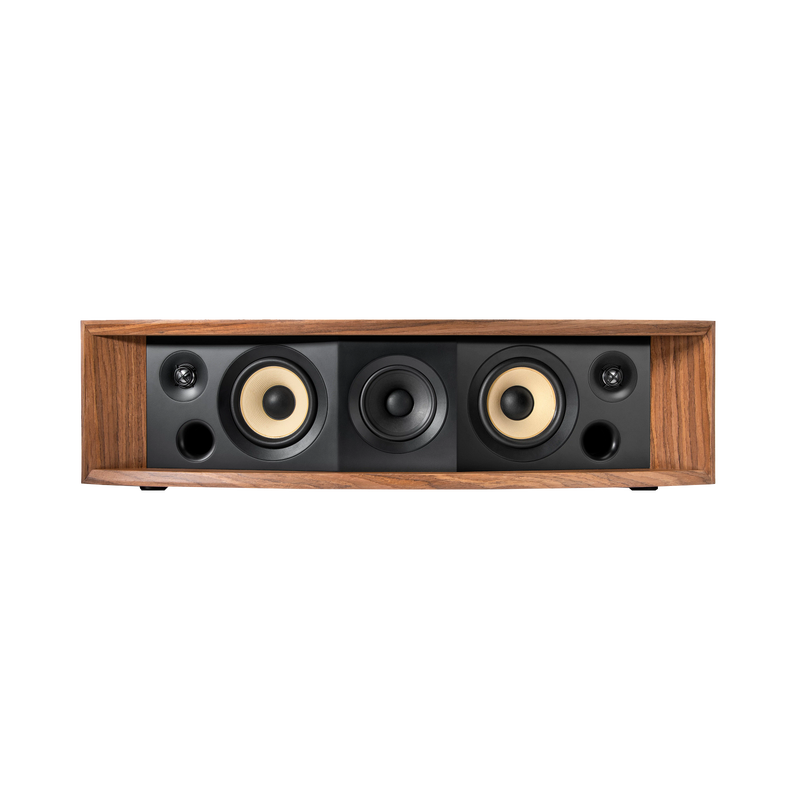

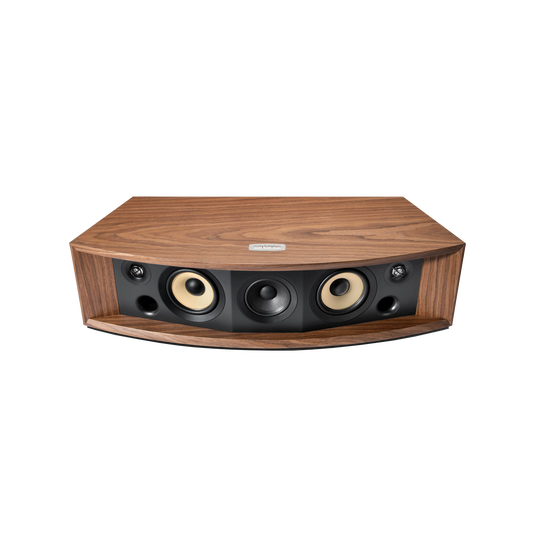

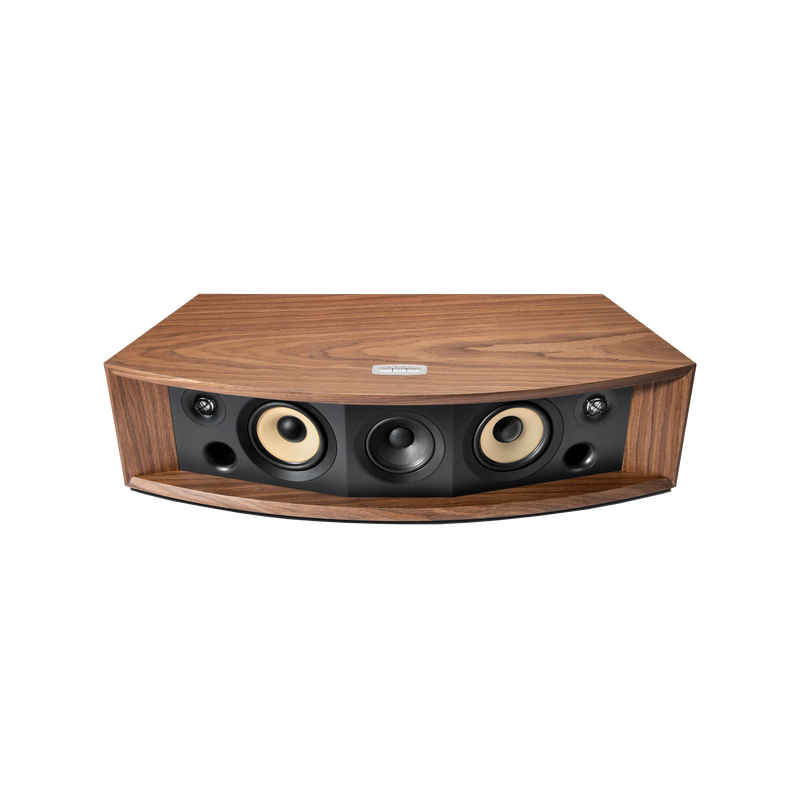

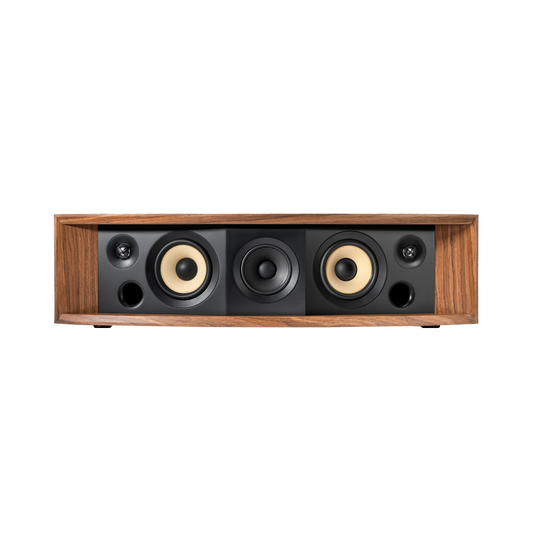

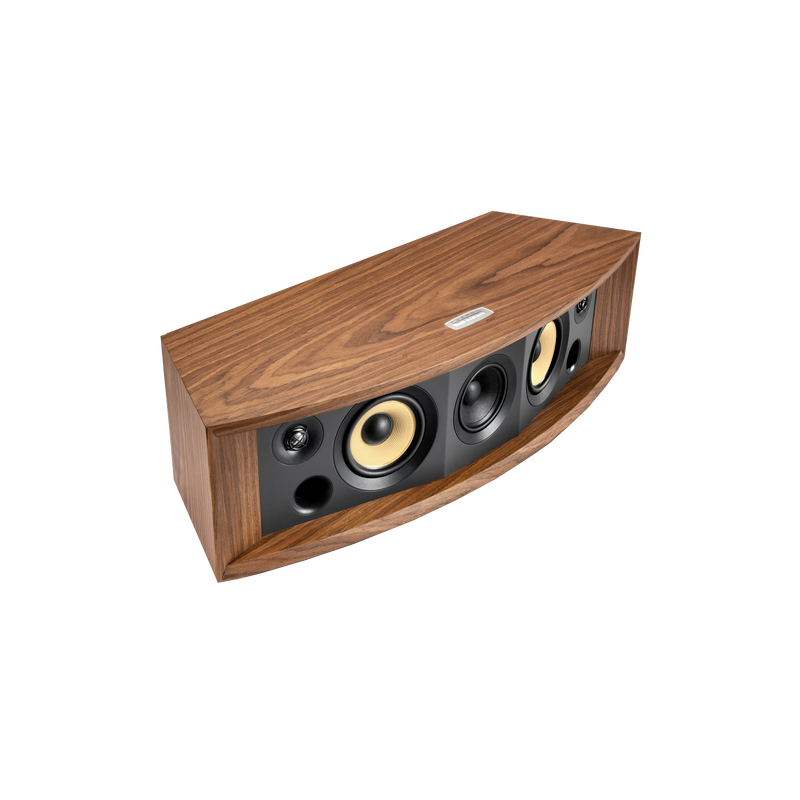

5 Driver design: dual 5.25-inch woofers, dual 1-inch Aluminum tweeters and a central 4-inch midrange driver

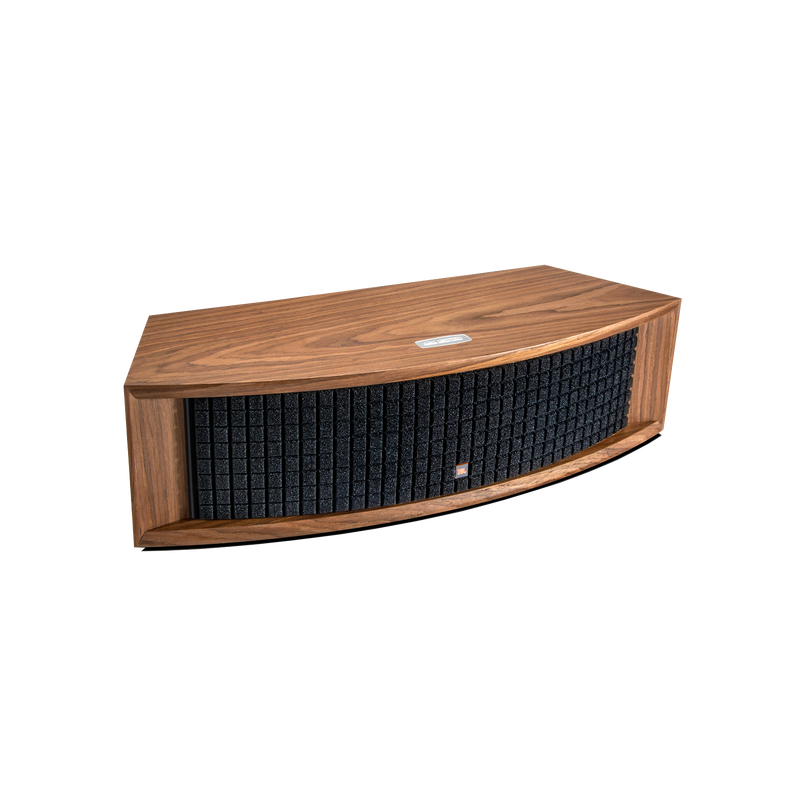

Satin walnut furniture-grade wood veneer finish

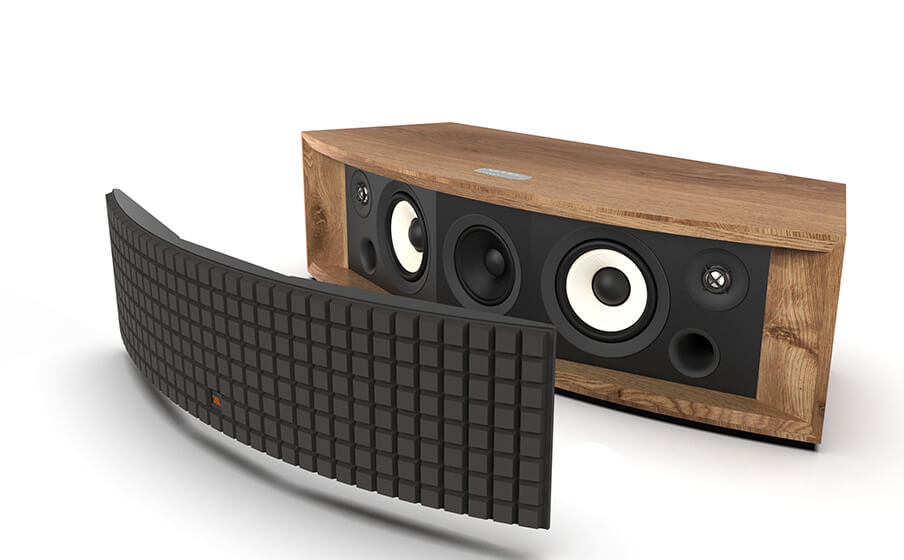

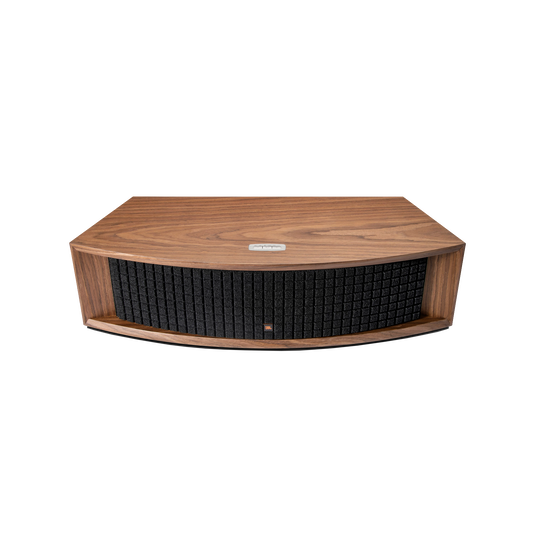

Black Quadrex foam grille

Features

JBL L75ms Music System Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth wireless audio - Image

Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth wireless audio

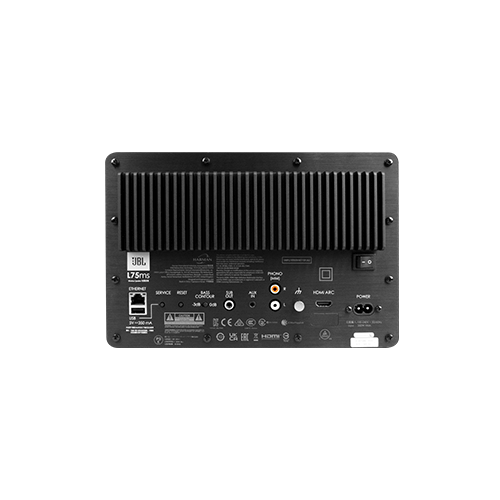

JBL L75ms Music System HDMI Arc, Moving Magnet phono and 3.5mm auxillary inputs - Image

HDMI Arc, Moving Magnet phono and 3.5mm auxillary inputs

JBL L75ms Music System selectable soundfield expander and bass contour controls - Image

selectable soundfield expander and bass contour controls

Specs & Downloads

Item# JBLL75MSAM

Description

JBL L75ms Music System

The JBL L75ms Music System caters to the enthusiast who seeks an easier way to listen to their music collection without sacrificing acoustic performance. As a modern re-imagining of the traditional Hi-Fi system, the L75ms finds its design inspiration from the JBL Classic Series with which it shares its walnut wood veneer cabinet finish and black Quadrex foam grille. Behind that retro appearance lies thoroughly modern acoustic technology including high-res audio capability and a wealth of wired and wireless connectivity.

General Specifications

Type
Streaming tabletop loudspeaker system
Low Frequency Drivers
Dual 5.25" (130mm) Pure Pulp cone woofers
High Frequency Drivers
Dual 1” (25mm) Aluminum dome tweeters with waveguides
Midrange Driver
4” (100mm) Pure pulp cone midrange
Amplifier Power
125W RMS per woofer, 25W RMS per tweeter, 50W RMS for center (350W RMS total)
Sound Controls
Speaker placement compensation, selectable sound-field expander
Wireless Inputs
WiFi streaming, Bluetooth 4.2

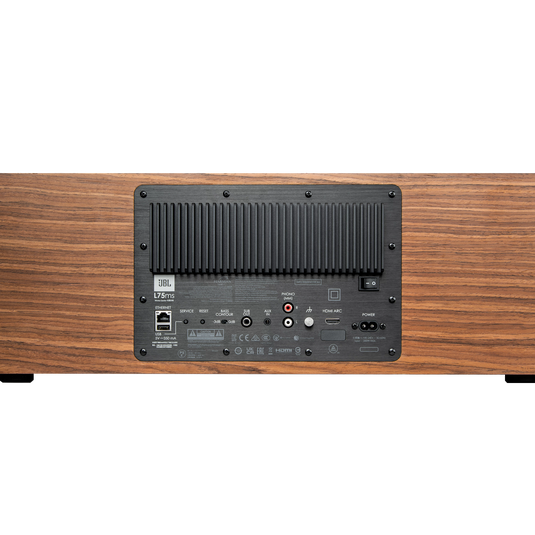

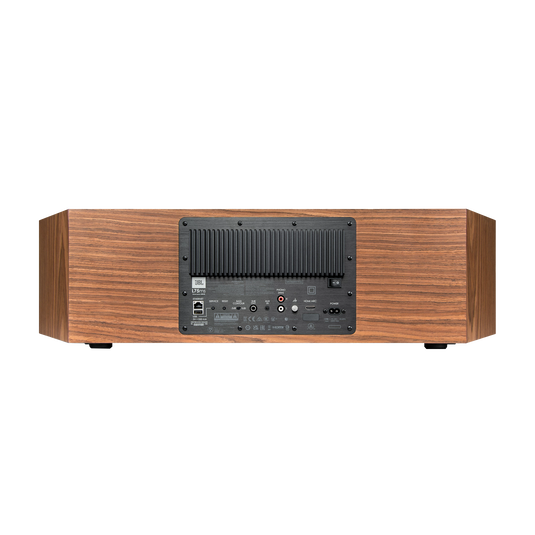

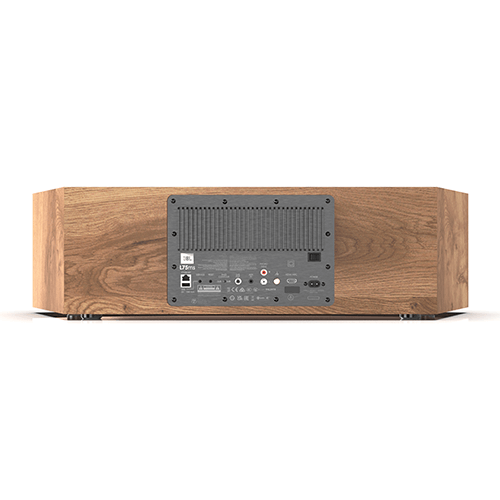

Wired Inputs

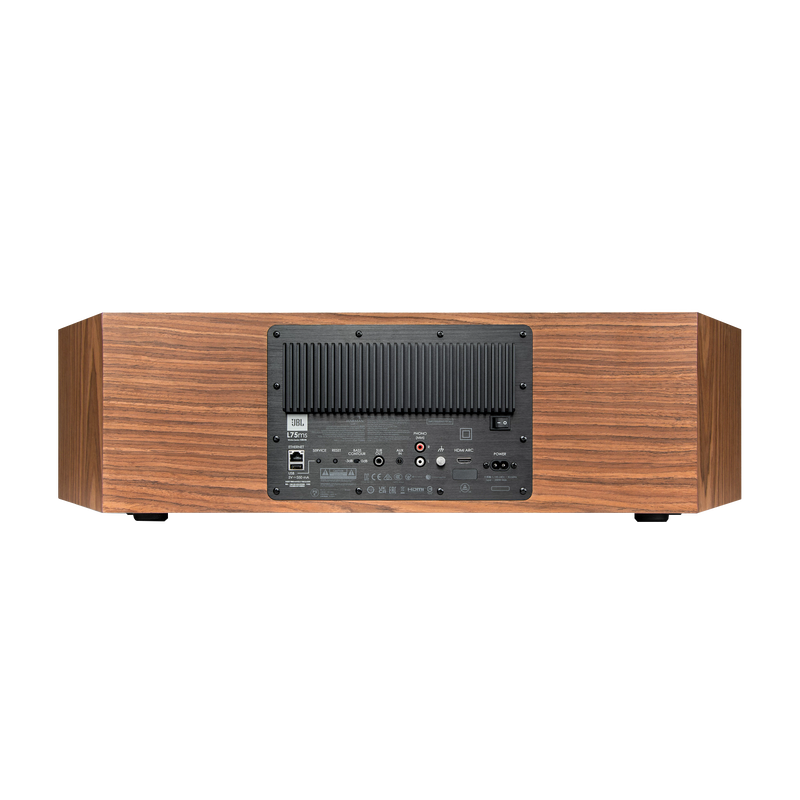

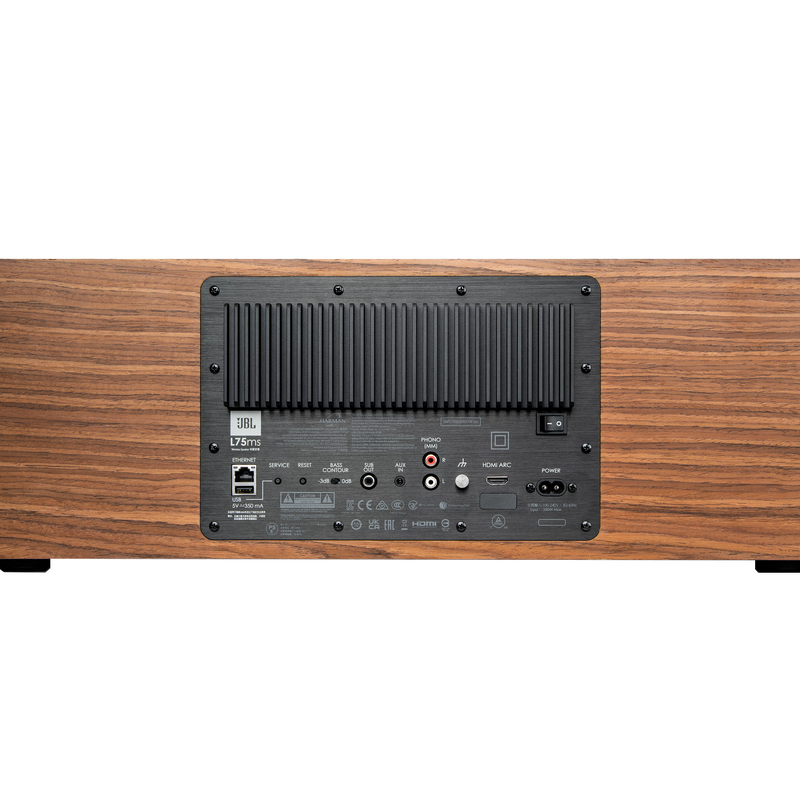

HDMI ARC, ethernet, phono (MM), 3.5mm AUX
Resolution
Up to 32-bit, 192 kHz
Frequency Response
45 Hz - 25 kHz (-6 dB)
Maximum SPL
106 dB @ 1m
Subwoofer Output
2V RMS with auto-sense/engage HPF
Enclosure
Front-ported tabletop in satin walnut furniture-grade wood veneer

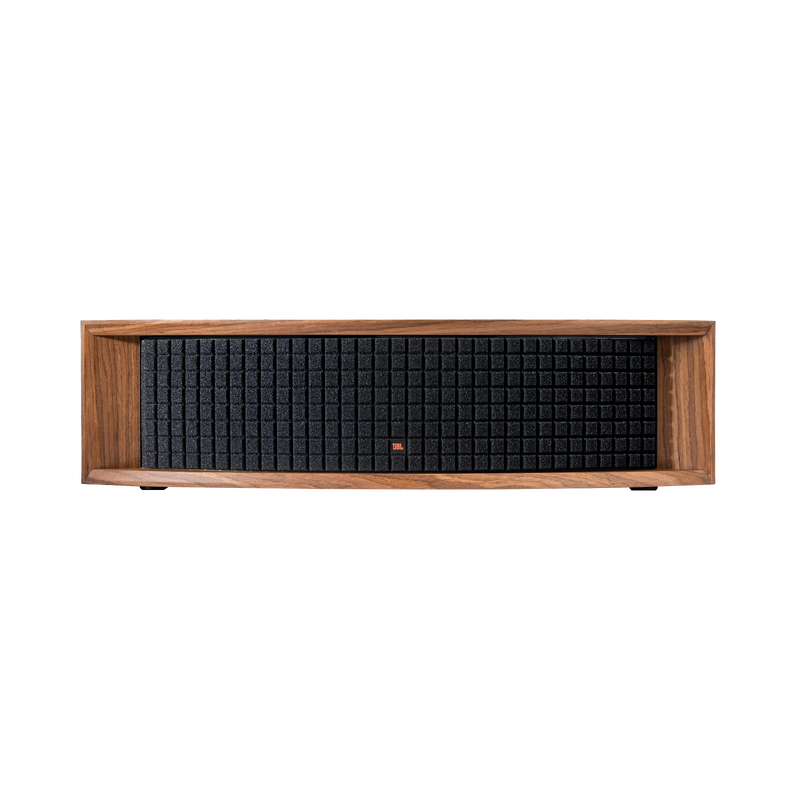

Grille
Black foam Quadrex grille
Dimensions with grille
8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)

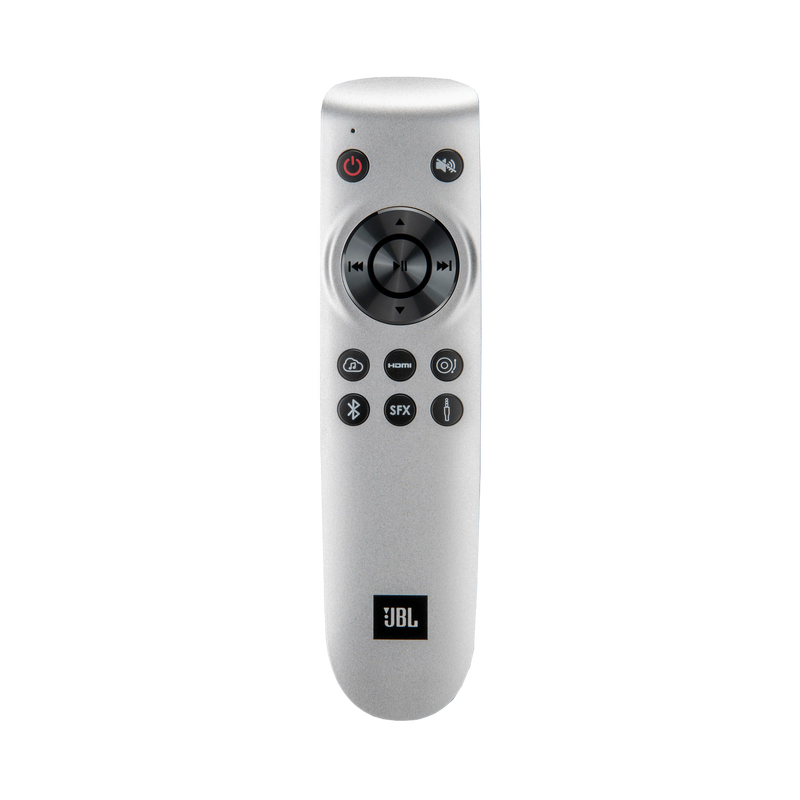

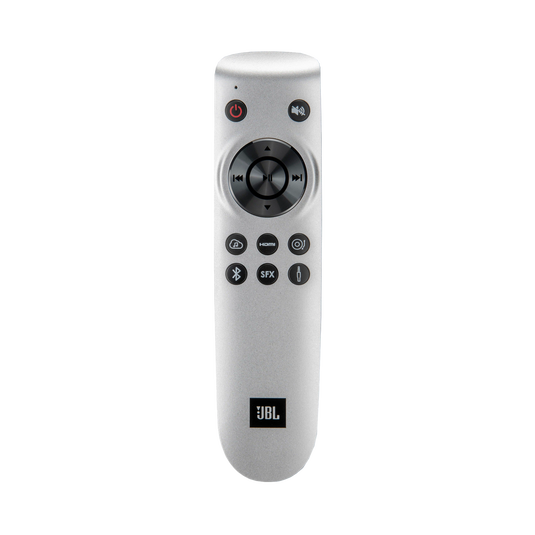

Remote Control Type
BTLE
Product Weight (Each)
35 lbs. (15.9 kg)
Shipping Weight
44 lbs. (20.0 kg)
Shipping Units of Measure
Each
Warranty
5 Years
