JBL Shock Wave 4T

Features

JBL Shock Wave 4T Bullet Type Phase Plug Horn Design - Image

Bullet Type Phase Plug Horn Design

The bullet type phase plug horn is capable of delivering remarkably efficient, high output for a given input power. The tweeter helps optimize sound dispersion by controlling directivity, allowing greater SPL whether on or off axis.

JBL Shock Wave 4T Compression Driver Technology - Image

Compression Driver Technology

The tweeter utilizes compression driver technology for increased maximum SPL, sensitivity and bandwidth, as well as reduced harmonic distortion.

JBL Shock Wave 4T High Quality Die Cast Aluminum Housing - Image

High Quality Die Cast Aluminum Housing

The elegant aluminum die cast housing allows for a classy aesthetic integration in any car.

JBL Shock Wave 4T Titanium Diaphragm - Image

Titanium Diaphragm

The extremely rigid titanium diaphragm is light weight and low density, allowing for a flatter response, broad frequency range and pinpoint accuracy.

JBL Shock Wave 4T Versatile Installation Options - Image

Versatile Installation Options

The Shock Wave 4T is conveniently designed with a 37mm (1.5-inch) mounting depth and 72mm (2.8-inch) cutout diameter, allowing it to be installed in either car door or A pillar.

JBL Shock Wave 4T Supplied Capacitor - Image

Supplied Capacitor

Two 2.2uF/100 volt capacitors are included to help eliminate potentially harmful low end frequencies.

Specs & Downloads

Item# JBLSPKSW4TRU

Description

JBL Pro audio super tweeter with bullet horn design, compression driver technology, titanium diaphragm and die cast aluminum housing. The bullet type phase plug design offers directional control of the radiation pattern, and effortlessly reproduces competition level high-end volume and frequency response while maintaining crystal clarity. Two 2.2uF/100 volt capacitors are included to eliminate potentially harmful low frequencies.

General Specifications

Power Handling
35W RMS, 70W peak
Sensitivity (@1w/m)
103dB
Frequency Response
2.5kHz – 20kHz
Nominal Impedance
4.0 ohms
Crossover Circuit
2.2 μF/ 100V

What's in The Box?

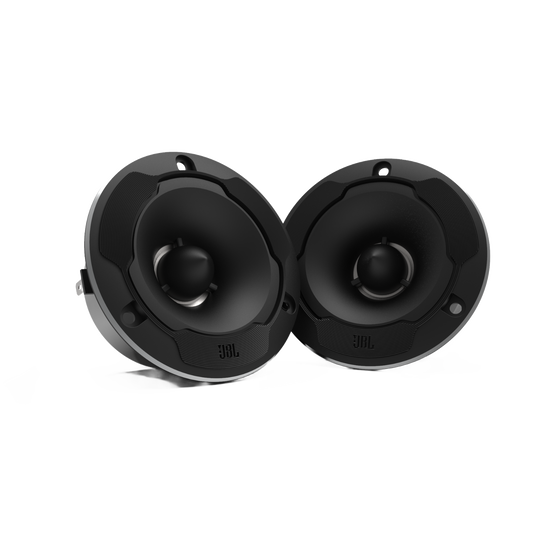

  • 2 x Tweeter
  • 2 x 2.2uF 100 volts capacitor
  • 1 x Owner's Manual
What's in The Box?
