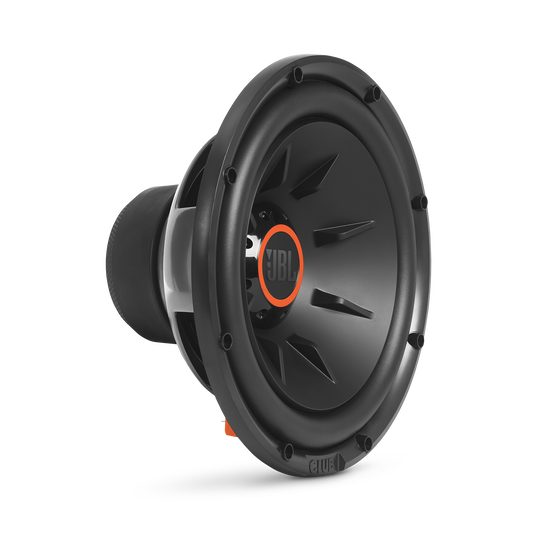

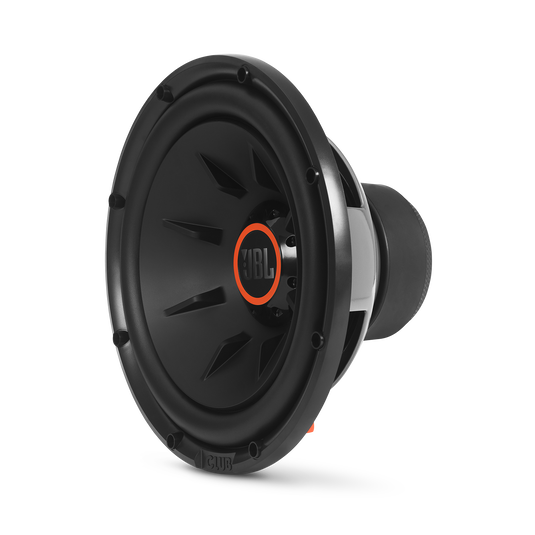

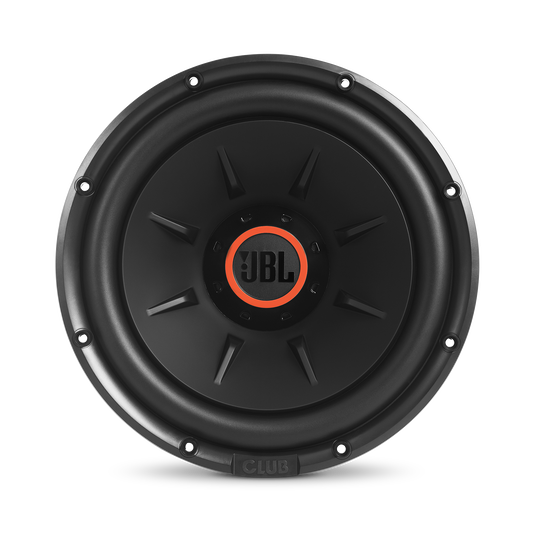

Club 1224
$104.95 Price reduced from $139.95 to Save 25%

Features

Club 1224 SSI™ (Selectable Smart Impedance) - Image

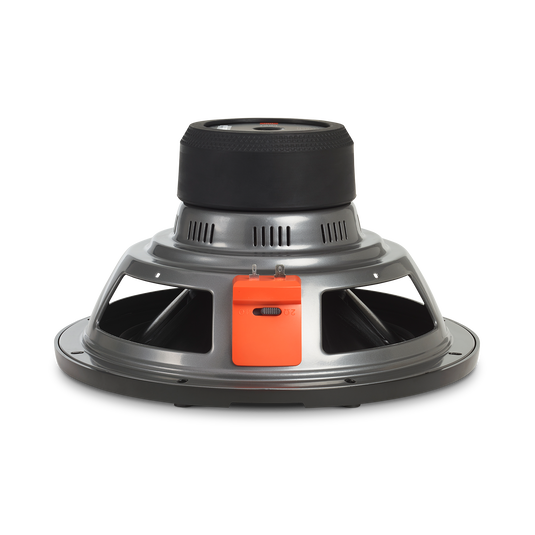

SSI™ (Selectable Smart Impedance)

Most car audio system designs call for 2- or 4-ohm impedance. Series II subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.

Specs & Downloads

Item# JBLCLUB1224AM

Description

Strong on performance, big on flexibility.

Car audio systems rely on powerful bass for great sound. System designers look for configuration flexibility. The Club Series deliver both. Designed to suit a range of applications, these 10- and 12-inch subwoofers produce signature JBL bass performance in sealed or vented enclosures. But the flexibility doesn’t end there. These subwoofers feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system. So you get the powerful JBL bass you want, in the configuration you choose.

General Specifications

Description
12" (300mm) car audio subwoofer
Power Handling
275W RMS, 1100W peak
Sensitivity (@ 2.83V)
93dB
Frequency Response
25Hz – 175Hz
Voice Coil Diameter
2" (50mm)
Impedance
2 or 4 ohms.

Documents & Downloads

Reviews and Q&A

Customer Reviews

Rated 5 out of 5 by from Great Sound have this in a 2019 Subaru Impreza and they hit hard with the club 5 channel amp
Date published: 2019-06-04
Rated 5 out of 5 by from Sounds great Bought two of them they sound great! No problems! Recommend
Date published: 2018-08-18
  • y_2023, m_5, d_27, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_1224clubsubwoofers, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_jbl
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 4ms
  • reviews, product

Product Q&A

can this be free aired

Asked by: dylan10740470
Thank you for your question, We recommend using a box for the subwoofer so you can definitely experience the subwoofer in it's full potential.
Answered by: Mario at Customer service
Date published: 2021-06-06

Would a sealed enclosure with 1.00cu.ft of air space be okay? I understand that 0.75 is recommended but could it perform well and without damage in a 1.00 enclosure.

Asked by: matt38
Thanks for reaching out. It's okay to use a 1.00 ft³, 0.25 ft³ difference is not a big enough difference to drastically affect anything in this sealed box. 1 cubic foot is fine.
Answered by: Customer Support
Date published: 2022-05-09

I Have a JBL GTR1000 amp. I'm currently using 3 stage122d subwoofers in a 4.88 cube box. Can I run 3 of the club 1224 subs off this amp? And at what ohm load? And will it possibly get me more output?

Asked by: Maxx4386
Thanks for your inquiry. Our GTR1001 can run the JBL Club1224 with 4 impedance to get a louder output.
Answered by: Customer Support
Date published: 2022-08-01

What are the AIR requirements for mounting this sub in a Ported and Sealed Enclosures??

Asked by: 619stig
The air requirements for the Club 1224 are as follows: Sealed: 0.75 cubic feet Ported: 2.5 cubic feet with 4" diameter port, 11.7" long, tuned to 30 Hz If you have further questions, please contact your local JBL customer support, thank you!
Answered by: Steven M
Date published: 2022-01-25

What ported Subwoofer enclosure is the best fit for this sub???

Asked by: Murphdog
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Mario at Customer service
Date published: 2021-06-06

What is the size of the sealed box before the sub is placed inside? You say point0.75 but thats after the sub is in whats is before its placed in? Also what is the displacement of the 1224?

Asked by: Loyd 33
Thanks for your question. The displacement of the subwoofer is 0.07 ft3.
Answered by: Customer Support
Date published: 2022-01-27

Does this subwoofer need an external amplifier? If so what amplifier would you recommend.

Asked by: swyman116
To get the most out of the subwoofer, yes. Basically any amplifier that's 2-4 ohms and within 275W RMS (1100W Peak).
Answered by: Homer DLR
Date published: 2022-01-04

what are the dimensions of this sub

Asked by: Evan1234
Thanks for reaching out, Below is the dimensions of the JBL Club 1224. If you have questions or concerns, please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you. Cutout Diameter: 11-1/4" (285mm) Mounting Depth: 6-1/2" (165mm)
Answered by: Jayson D
Date published: 2021-06-06
