JBL STAGEA3001AM

JBL Stage Amplifier A3001

Class D Car Audio Amplifier

Variations
$179.95179.95 each
Product Actions
Add to cart options
Does It Fit My Car?
Promotions

This item is currently not available.

Features

Value Engineered

Value Engineered

Stage amplifier provides true JBL performance at an affordable price while now lacking the features needed to properly tune and optimize performance.

Compact footprint

Compact footprint

With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility.

Full On-Board Protection.

Full On-Board Protection.

Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.

Reliability

Reliability

JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.

Input Level Control

Input Level Control

When Low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 6.0Vrms. When High-level inputs are used, this control adjusts the input sensitivity between 0.5Vrms and 15Vrms.

Switchable bass EQ

Switchable bass EQ

This provides an avaiable bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.

Cool industrial design

Cool industrial design

Black with deep grooves, silver silkscreen, anodized JBL badge top-center with orange end panels and bottom.

Crossover mode switch

Crossover mode switch

LPF crossover controls is switchable between 0dB to 12dB at 45Hz giving user ability to adjust sound to the environment and/or application.

Crossover control gives user additional fine tuning

Crossover control gives user additional fine tuning

Adjusts the crossover turnover frequency between 32Hz and 320Hz. (One knob for each stereo pair.)

Our Point of View

Our Point of View

JBL believes that life is defined by what you experience. Music helps people have experiences that are more extraordinary, by fully immersing them in each moment. To help people have rich experiences, JBL creates full-on sound that draws people in and heightens the feeling. JBL is dedicated to delivering sound that elevates life.

JBL Stage Amplifier A3001 - Black - Class D Car Audio Amplifier - Hero

Specs & Downloads

General Specifications

Power Output 300Wx1@2ohms
Frequency Response 10-300Hz±1dB
THD@ROP 1%
Input Sensitivity 0.2V-5V
Low Pass Filter, Variable 32 -320Hz
Bass EQ@45Hz 0,6,12dB or 0-12dB
Protection DC, OVP, UVP, OCP, OTP

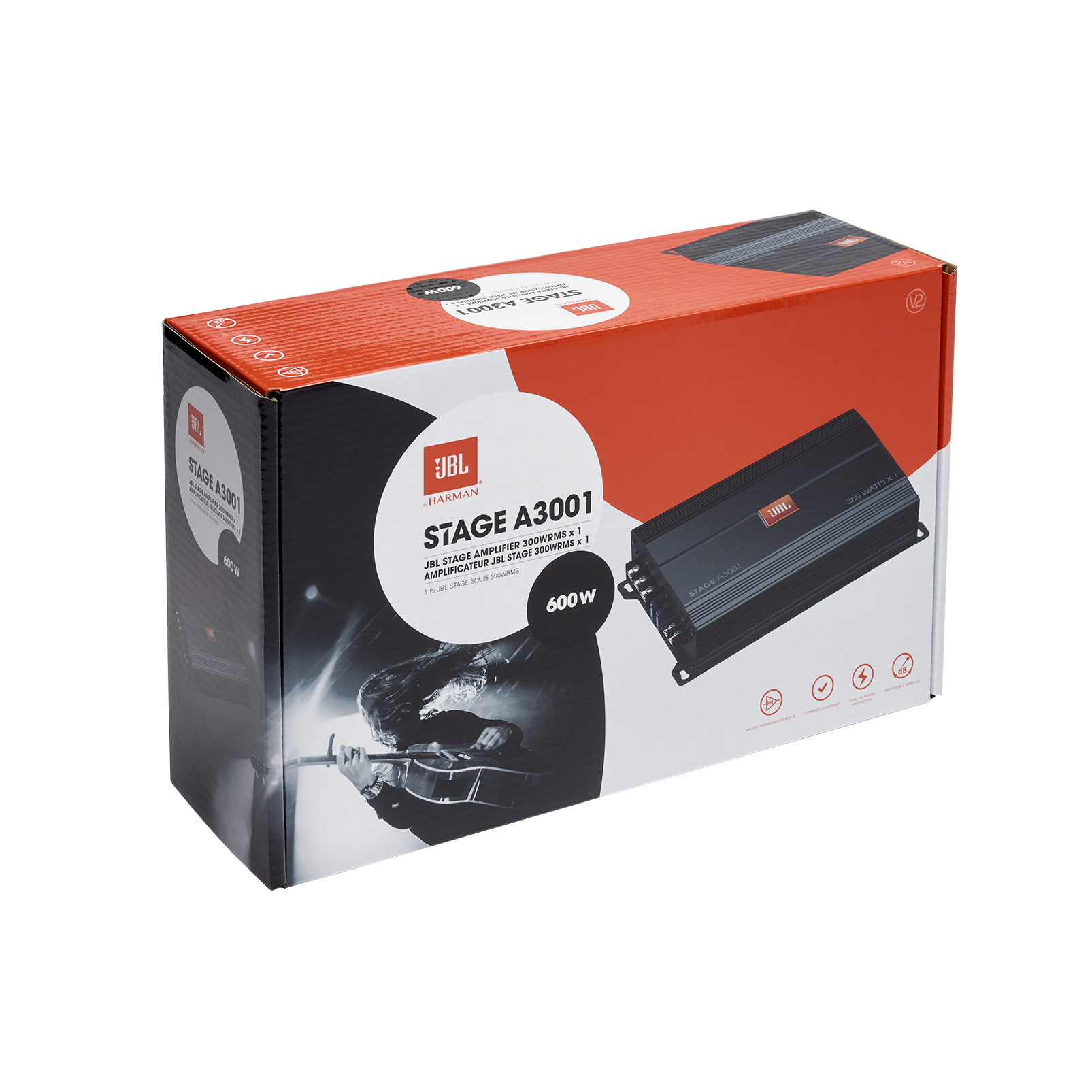

What's in the box?

  • Amplifier
  • Spare Fuse (x2 for 1-channel and 4-channel model)
  • Quick start guide
  • High-level input cable (x2 for 4-channel model).
  • 2x two-color JBL Brand Stickers
JBL CLub One Box visual

Documents & Downloads

Reviews and Q&A

Customer Reviews

Product Q&A

Support

Search Result For ""

Register your
JBL product

Do you own this product? Register it here in case you need to claim warranty

Register Now

Can’t find what
you’re looking for?

Are you looking for product support, documentation, how-tos or older products?

JBL Support

POWER YOU WILL FEEL AT YOUR CORE

JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwooers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable—and once they turn on, they'll make a transducer sit up and sing.
