JBL ARENA 26Be
$2,499.95

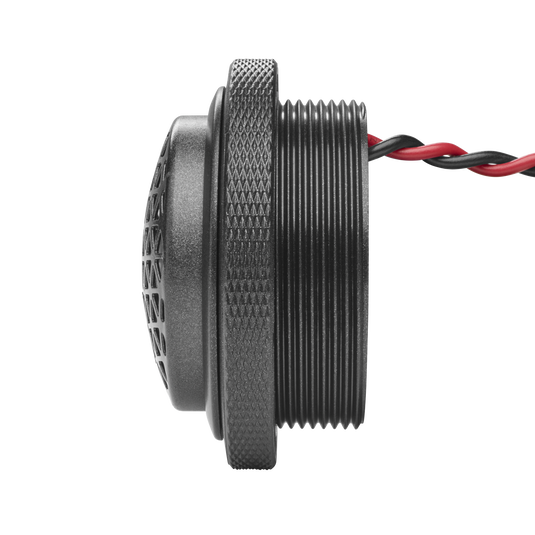

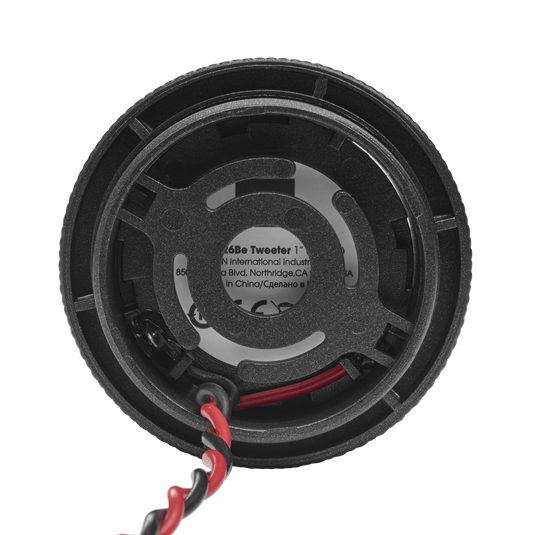

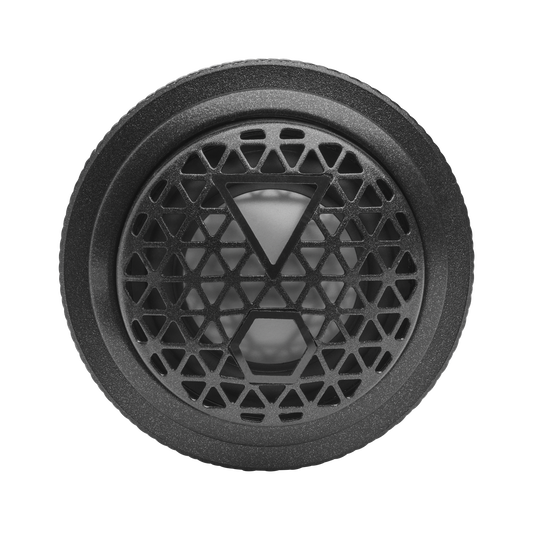

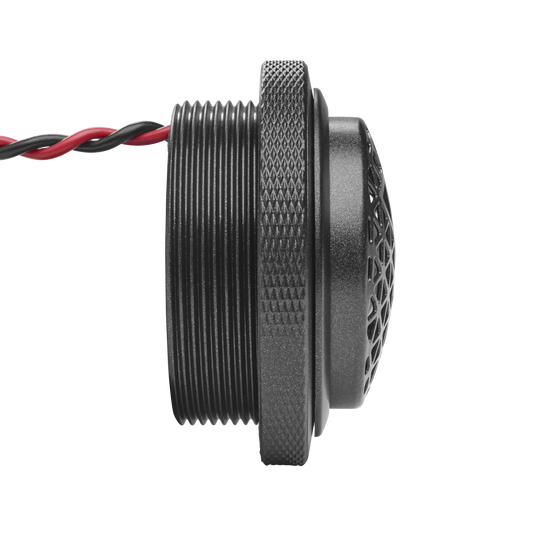

1-inch Edge-Driven Pure Beryllium dome tweeter

Beryllium offers 4.5 times the stiffness and three times more damping than more commonly used Aluminum and Titanium diaphragms, delivering extended high-frequency performance out to 40kHz. This benefits the listener by virtually eliminating all harness in the audio band, delivering a smooth, precise and detailed performance, even at high output levels.

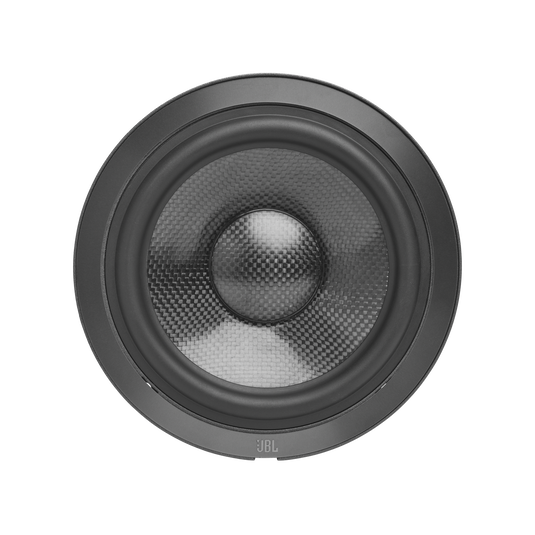

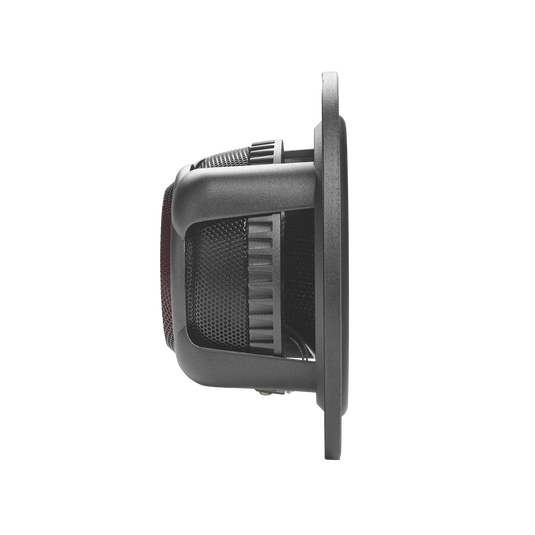

Carbon Fiber Composite Cone Body And Dustcap woofer

The ultra-rigid Carbon fiber dustcap and cone body minimize unwanted cone flexing, ensuring smooth frequency response.

Nomex Spider Woofer

Spider are specifically designed to ensure linear motion in both forward and rearward directions. This mnimizes distortion caused by the speaker's suspension.

Features

JBL ARENA 26Be Neodymium Magnet Motor - Image

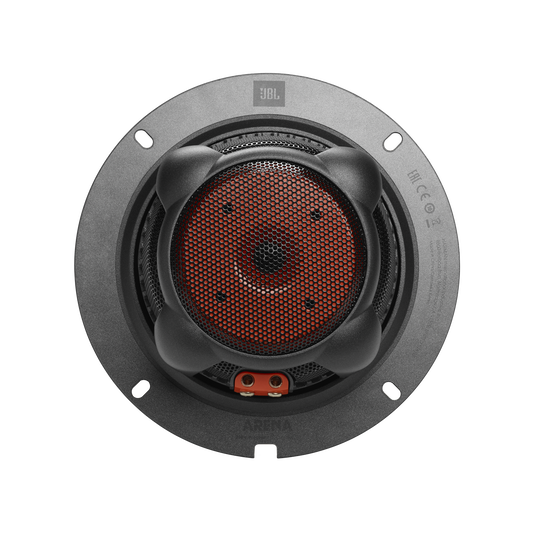

Neodymium Magnet Motor

Provides high flux density, also allows more room for larger steel motor components to provide critical heatsink mass for the voice coil.

JBL ARENA 26Be Die-Cast Aluminium Basket - Image

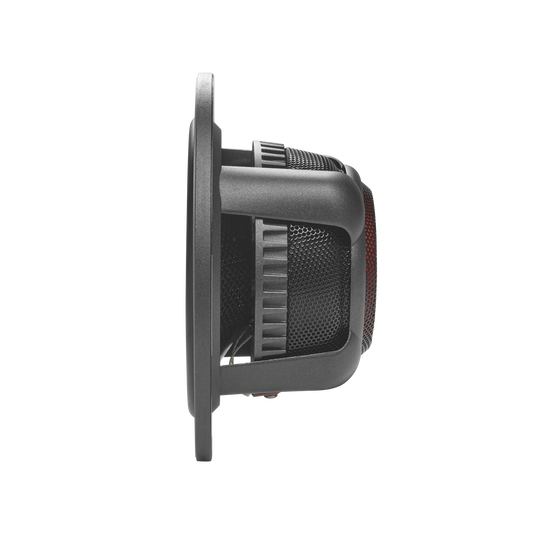

Die-Cast Aluminium Basket

Provides rigid support for the motor structure allowing for tighter tolerence thus yielding reduced distortion and unwanted acoustic anomolies

JBL ARENA 26Be Bi-Amp Capable Precision Outboard Crossover network - Image

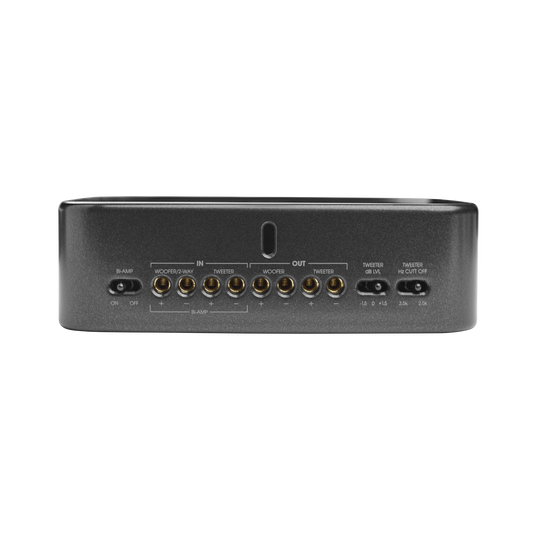

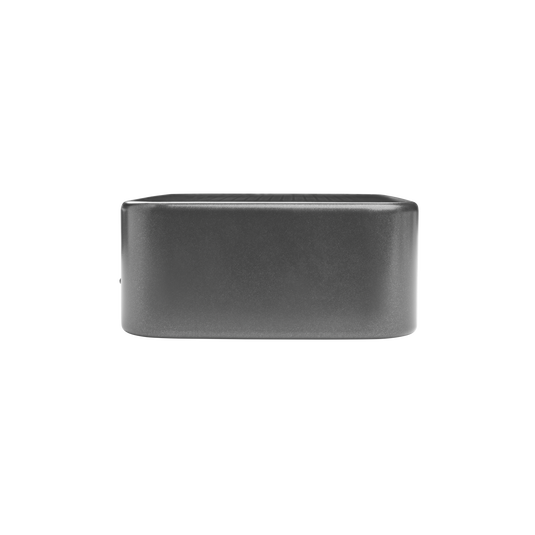

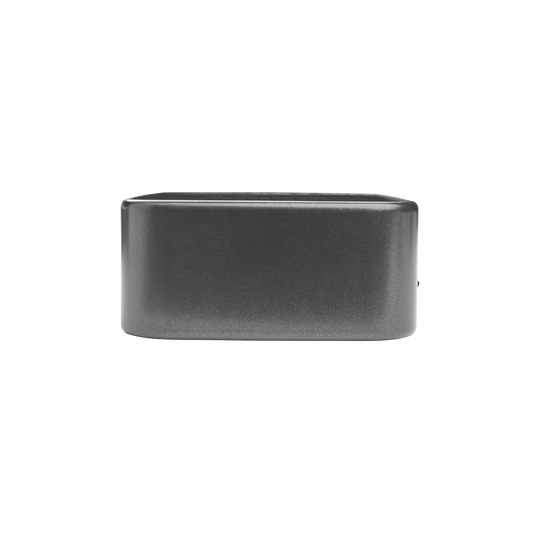

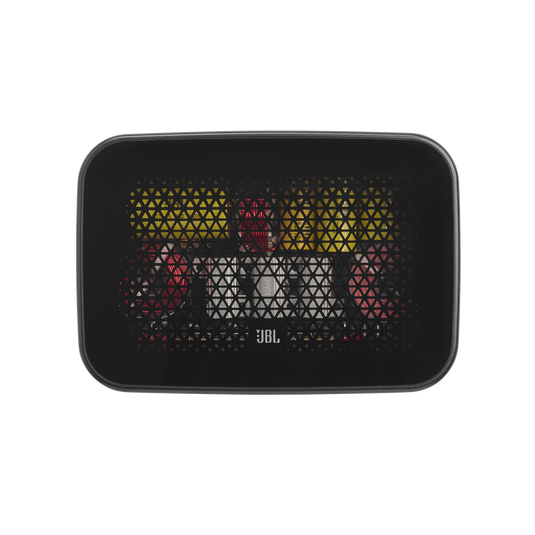

Bi-Amp Capable Precision Outboard Crossover network

High tolerence components are used to enusre purity and low distortion with a 12dB per octave alingment on the woofer and 24dB per octave alignment on the tweeter. It is also setup for biamping if so desired and a three position tweeter output is also included to optimize perofrmance based on location and vehiclel materials.

JBL ARENA 26Be Magnetic adsorption design - Image

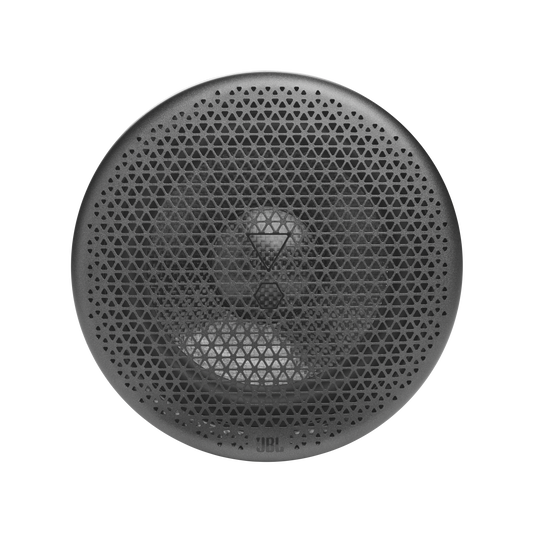

Magnetic adsorption design

Strong magnetic field adsorption technology take you to the new case era. From now on, grill installing became a pleasure. It makes your loudspeakers stand out among crowd. Magnetic strong adsorption loudspeaker grill automatic closing, 1 second installation by you.

Specs & Downloads

Item# JBLSPKAR26BEAM

Description

The JBL ARENA is a passive 2-way automotive system in our ARENA series.The Arena includes a 25mm beryllium tweeter in a slim factory fitting housing. The powerful all-new tweeter is designed to integrate with the directivity of the companion midrange drivers resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters. Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centerpiece of the ARENA automotive loudspeaker series. The Arena 2way passive crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow JBL’s world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional JBL high-order crossover slopes and proprietary transducer integration is seamless. The 6.5-inch (165mm) aluminum basket woofers utilize woven carbon fiber cones for improved performance. The stiff lightweight cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance and Specially formulated acoustic adhesive chosen to provide superior strength and sound quality.

General Specifications

Frequency Response (-6dB)
20Hz - 40kHz
Power Handling
100Wrms, 200W peak
Crossover Frequencies
2.5K or 3.5kHz (selectable)
Nominal Impedance
4 ohms
Sensitivity
90dB (2.83V @1M)
Woofer mounting depth
2.83 in./72 mm
Tweeter flush mouting depth
0.77 in./19.5 mm

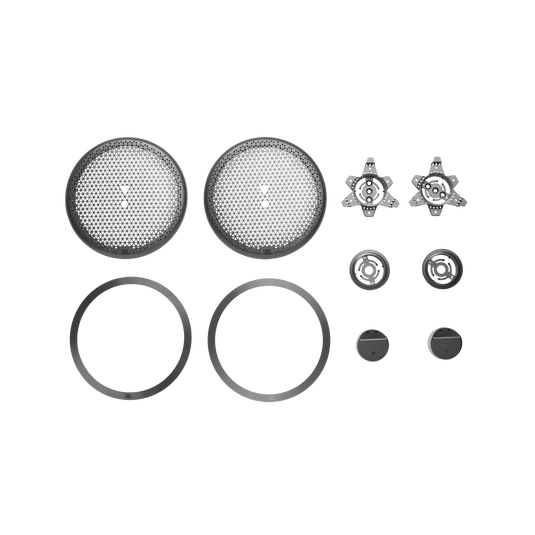

What's in The Box?

  • 1 pair woofers
  • 1 pair tweeters
  • 1 pair passive crossovers
  • 1 pair woofer grille
  • 1 pair woofer decoration ring
  • 1 pair flush mounting tweeter case (installed)
  • 1 pair flush mounting tweeter nut
  • 1 pair angle surface mounting cup
  • 1 pair stealth mounting braket
  • 1 pair woofer gaskets
  • Screws and clips
  • User Manual
