JBL Stage Amplifier A3001


JBL Stage Amplifier A3001 Value Engineered - Image

Value Engineered

Stage amplifier provides true JBL performance at an affordable price while now lacking the features needed to properly tune and optimize performance.

JBL Stage Amplifier A3001 Compact footprint - Image

Compact footprint

With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility.

JBL Stage Amplifier A3001 Full On-Board Protection. - Image

Full On-Board Protection.

Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.

JBL Stage Amplifier A3001 Reliability - Image


JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.

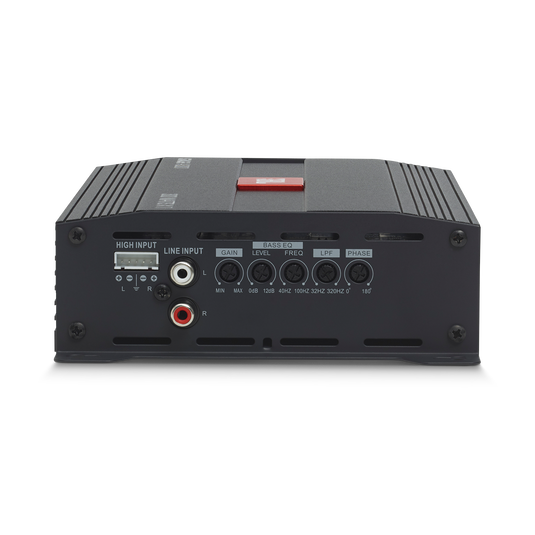

JBL Stage Amplifier A3001 Input Level Control - Image

Input Level Control

When Low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 6.0Vrms. When High-level inputs are used, this control adjusts the input sensitivity between 0.5Vrms and 15Vrms.

JBL Stage Amplifier A3001 Switchable bass EQ - Image

Switchable bass EQ

This provides an avaiable bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.

JBL Stage Amplifier A3001 Cool industrial design - Image

Cool industrial design

Black with deep grooves, silver silkscreen, anodized JBL badge top-center with orange end panels and bottom.

JBL Stage Amplifier A3001 Crossover mode switch - Image

Crossover mode switch

LPF crossover controls is switchable between 0dB to 12dB at 45Hz giving user ability to adjust sound to the environment and/or application.

JBL Stage Amplifier A3001 Crossover control gives user additional fine tuning - Image

Crossover control gives user additional fine tuning

Adjusts the crossover turnover frequency between 32Hz and 320Hz. (One knob for each stereo pair.)

JBL Stage Amplifier A3001 Our Point of View - Image

Our Point of View

JBL believes that life is defined by what you experience. Music helps people have experiences that are more extraordinary, by fully immersing them in each moment. To help people have rich experiences, JBL creates full-on sound that draws people in and heightens the feeling. JBL is dedicated to delivering sound that elevates life.

Specs & Downloads

Item# STAGEA3001AM



JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwooers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable—and once they turn on, they'll make a transducer sit up and sing.

General Specifications

Power Output
Frequency Response
Input Sensitivity
Low Pass Filter, Variable
32 -320Hz
Bass EQ@45Hz
0,6,12dB or 0-12dB

What's in The Box?

  • 1 x Amplifier
  • 1 x Spare fuse (x2 for 1-channel and 4-channel model)
  • 1 x Quick start guide
  • 1 x High-level input cable (x2 for 4-channel model).
  • 2 x Two-color JBL brand stickers
What's in The Box?

Documents & Downloads

Reviews and Q&A

Customer Reviews

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

Product Q&A

Can I use just a 4 ohm speaker with this amplifier?

Asked by: jojoruiz
Yes you can use it with a 4 ohm sub but you will only get from 150 to 200
Answered by: davdwg2166
Date published: 2021-06-06

Hey would this amplifier work well with the GT-12BP? I'm looking to upgrade my audio in my car just like a nice sounding bass. Thank you

Asked by: tytheguy
Yes. Our JBL GT-12BP will be compatible with the JBL Stage Amplifier A3001. As the GT-12BP has a power handling of 300W RMS, 1200W peak at 4 ohms and the Stage A3001 provides 300W power at 2 ohms.
Answered by: Customer Support
Date published: 2022-04-06

Good day... It states in the manual that the A3001 does 300W RMS @ 2ohm & that it has no 4ohm rating - what wattage am I to expect if my subs\coils are say 3ohm when wired in parallel? What will happen if I use coils\subs @ 5 or 7 ohm? Thanks...

Asked by: PDXooo
Hi! We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Nick F
Date published: 2021-09-19
