Club A5055
$337.95 Price reduced from $449.95 to Save 25%
0.0 (0)
Write a review
Club A5055 Compact size - Image

Compact size

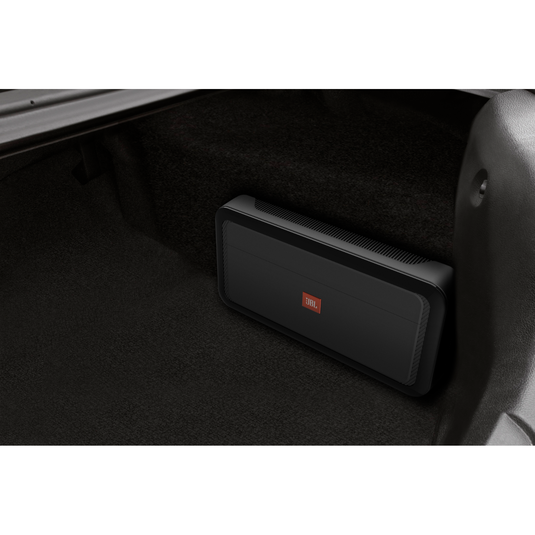

The JBL Club A5055 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

Club A5055 High and low level input - Image

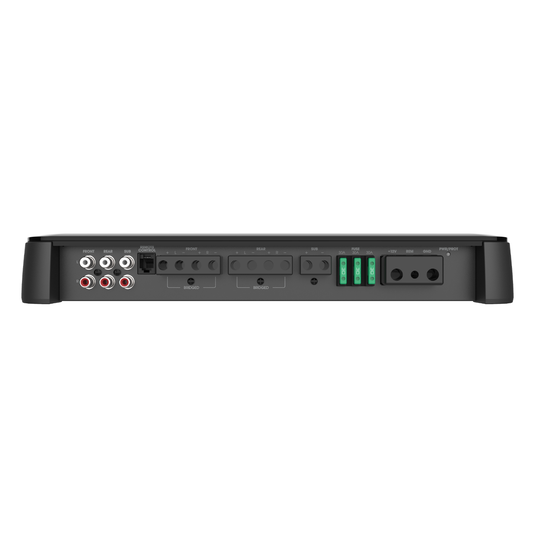

High and low level input

Speaker-level and low-level inputs allow the Club A5055 to integrate with both aftermarket and factory car stereo systems.

Club A5055 Variable crossover and bass boost - Image

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the JBL Club A5055 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Features

Club A5055 Low noise and distortion - Image

Low noise and distortion

The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Club A5055 Input Level Control - Image

Input Level Control

When the low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Club A5055 Full on-board protection - Image

Full on-board protection

On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Club A5055 Phase Switch - Image

Phase Switch

This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

Club A5055 RBC wired remote - Image

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Specs & Downloads

Item# AMPCBA5055AM

Description

Value engineered car amplifier with JBL power and performance

The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.

General Specifications

5 channel car amplifier

50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms

65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms

140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms

variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels

low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel

bass boost on subwoofer channel (0-12dB at 45Hz)

phase switch on subwoofer channel (0, 180 degrees)

preamp and speaker-level inputs

fuse rating
30A x 3

4-gauge power and ground leads recommended — wiring and hardware not included with amplifier

WxHxD=360mm x 51.3mm x 180mm WxHxD=14-3/16” x 2-1/16" x7-1/8”

What's in The Box?

  • 1 x Club A5055 five channel amplifier

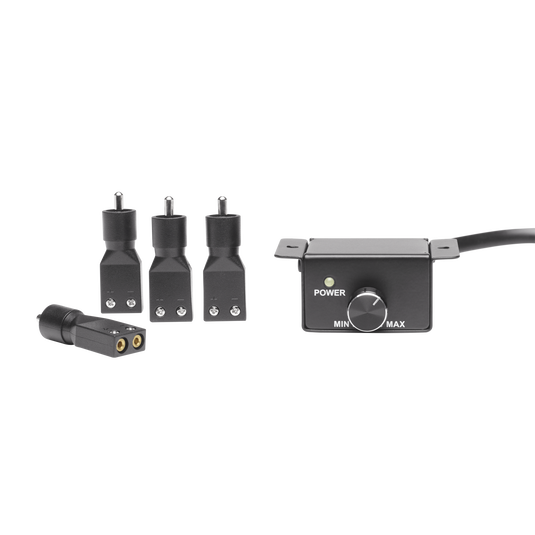

  • 4 x Bare wire-to-RCA adapters
  • 6 x 30A ATO fuses (3 installed, 3 spare)
  • 1 x Remote bass control module
  • 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
  • 2 x Self-tapping screws for remote (M3 x 15mm)
  • 4 x Mounting screws (M4 x 53mm)
  • 1 x Owner's manual
What's in The Box?

Documents & Downloads

Reviews and Q&A

Customer Reviews

  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

Product Q&A

Jus curious on what the bare wire to rca connectors are used for

Asked by: Tim1980
Please contact our customer support for assistance in regards to the RCA Connectors of the Club A5055: https://support.jbl.com/us/en/#contact
Answered by: Mario at Customer service
Date published: 2021-09-05

The remote bass adjust is very non-linear. From 0 to 1/4, it is normal, from 1/4 to 1/2, there is little difference. From 1/2 to max, there is no difference. I have tried with a variety of gain and bass boost settings and switching sub impedance.

Asked by: Amadensor
We'd like to work with you directly on this one. Please reach out to our Customer Support at https://bit.ly/3etA1v8
Answered by: Homer DLR
Date published: 2021-08-09

I was gonna get a one GX Series 12" Single-Voice-Coil 4-Ohm Subwoofer and wanted to know if this amp will run it reliably, I also put 2gx coaxial in the rear and 2 gx components in the front with tweeters, wondering if this amp will run all of this.

Asked by: Cody W
We'd like to work with you directly and know more information about how you're planning your set up. Please reach out to our Customer Support. We're here to help.
Answered by: Chastine
Date published: 2021-06-06

Besides the missing wiring, does this amp need anything else to connect with a factory system ?

Asked by: Anthony_25
Our JBL Club A5055 has three pairs of RCA jacks are provided for the input Front, Rear, and Subwoofer, with the Front and Rear inputs also accepting high-level signals. If using high-level, 4 speaker wire-to-RCA adapters are provided. Aside from the speaker wiring, there's nothing else needed.
Answered by: Customer Support
Date published: 2022-07-04
