Description

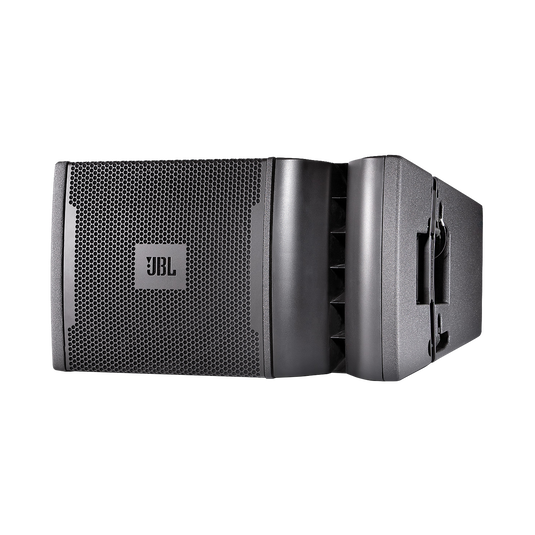

12" Two-Way Line Array Loudspeaker System

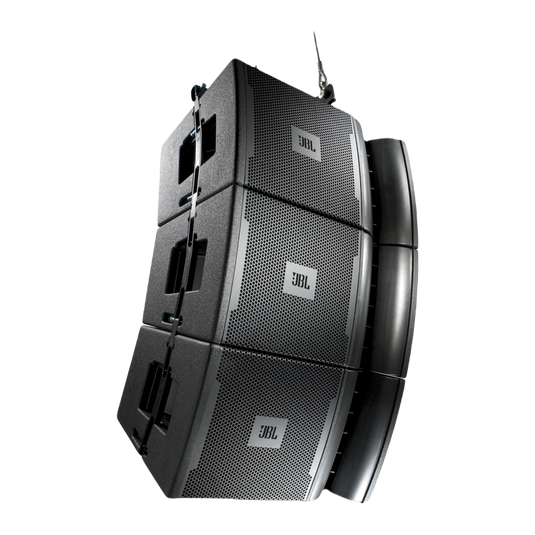

The VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures. Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means of the Array Configuration Selector (ACS), a feature that provides amplitude shading when the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely interchangeable and can be used together. When operated in passive mode, frequency response characteristics are exactly the same and both can be used in the same array.
General Specifications
- Coverage Pattern (Nominal)
- 100° x 15°
- Frequency Range Hz (-10 dB)
- 57 - 20,000
- Frequency Response Hz (±3 dB)
- 75 - 20,000
- Maximum SPL (peak dB)
- 130
- Nominal Impedance (ohms)
- 8
- Power Rating (W, Continuous)
- 800
- Power Rating (W, Peak)
- 3200
- Sensitivity (dB SPL 1w/1m)
- 95
Dimensions
- Depth (in)
- 15
- Depth (mm)
- 381
- Height (in)
- 13.75
- Height (mm)
- 349
- Weight (kg)
- 21
- Weight (lbs)
- 46
- Width (in)
- 23.5
- Width (mm)
- 597
Design
- Enclosure
- 18 mm, 11-ply birch plywood
- Suspension / Mounting

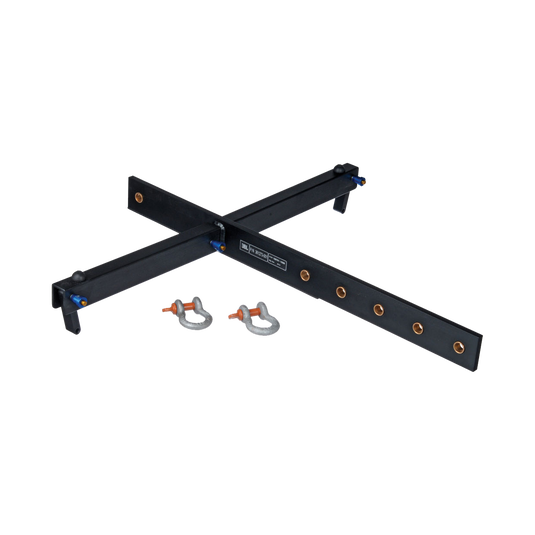

- Optional VRX932LA-AF line array frame kit
- Finish
- Black DuraFlex™ finish
- Grille
- Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Features
- Dual-angle pole-mount socket
- Yes
- JBL professional tunings and presents available
- Yes
- M10 suspension points
- Yes
