L100 Classic
0.0 (0)
Write a review

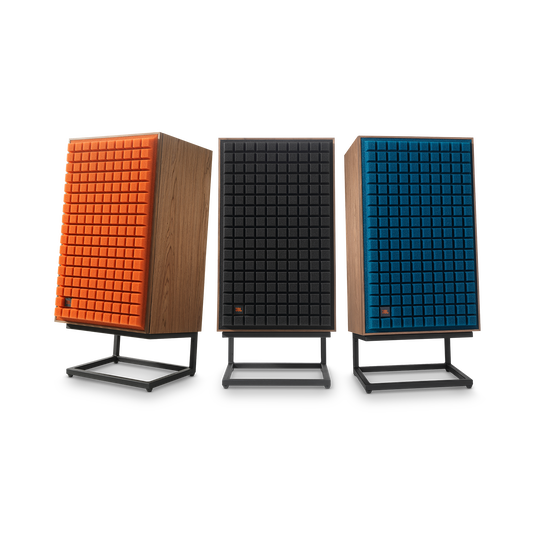

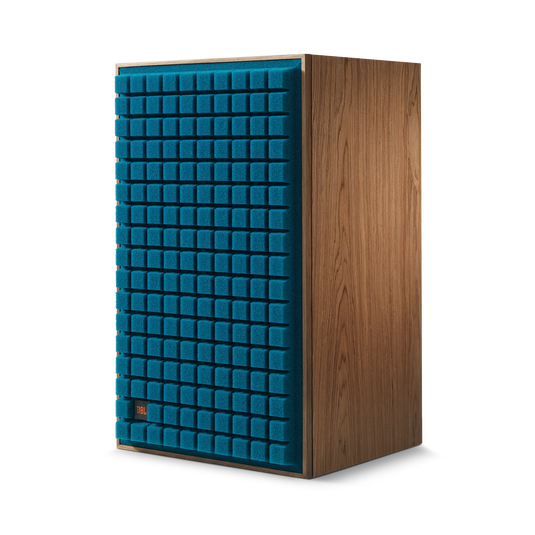

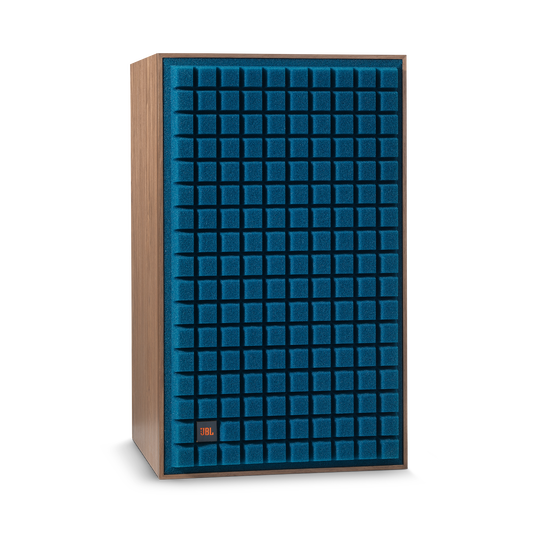

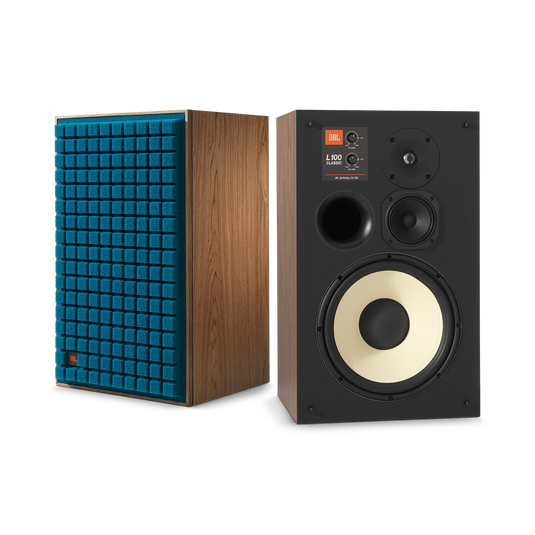

L100 Classic Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue - Image

Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue

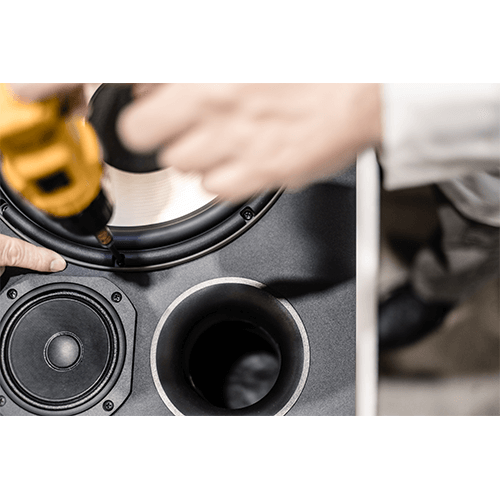

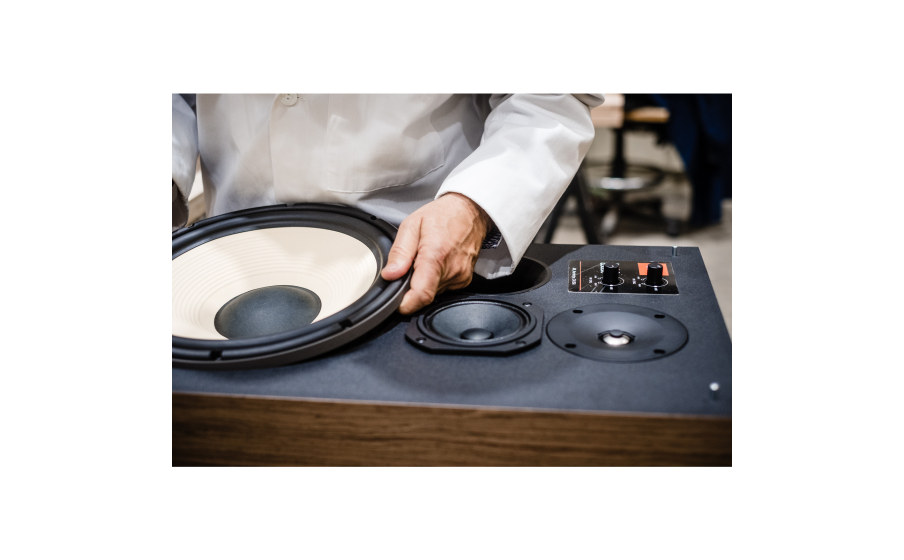

L100 Classic 12-inch (300mm) cast-frame, white pure-pulp cone woofer in bass-reflex design with front-firing tuned port. - Image

12-inch (300mm) cast-frame, white pure-pulp cone woofer in bass-reflex design with front-firing tuned port.

L100 Classic Genuine satin walnut wood veneer. - Image

Genuine satin walnut wood veneer.

Features

L100 Classic 5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver. - Image

5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.

L100 Classic 1-inch (25mm) titanium dome tweeter mated to acoustic lens waveguide. - Image

1-inch (25mm) titanium dome tweeter mated to acoustic lens waveguide.

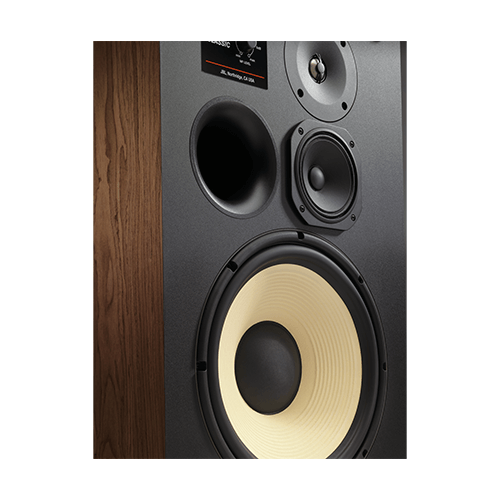

L100 Classic Bass-reflex design and front-firing port - Image

Bass-reflex design and front-firing port

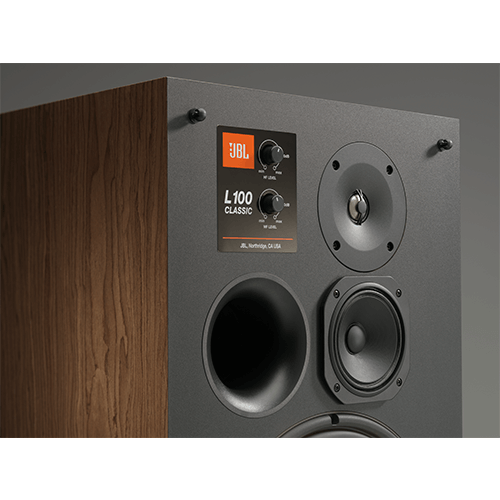

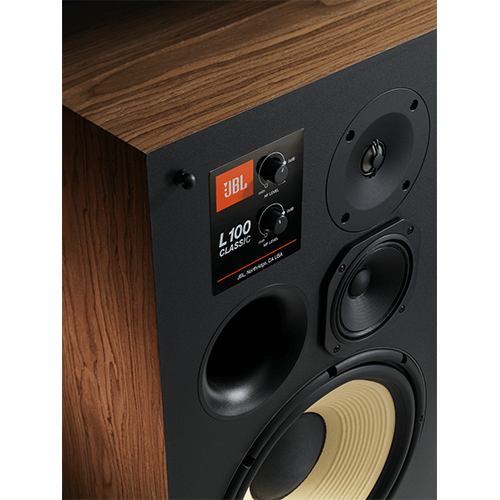

L100 Classic High-frequency and mid-frequency level attenuators. - Image

High-frequency and mid-frequency level attenuators.

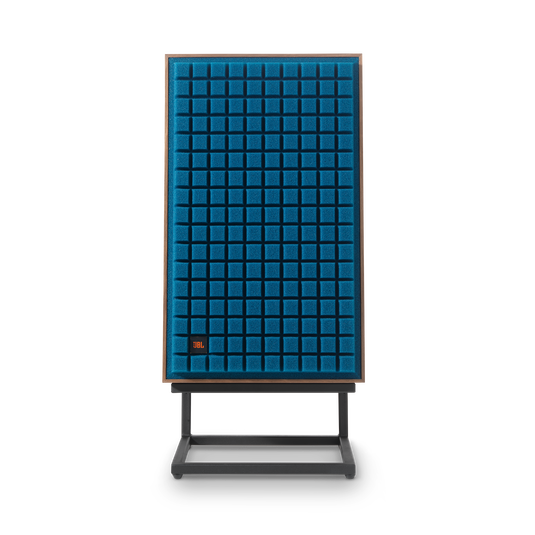

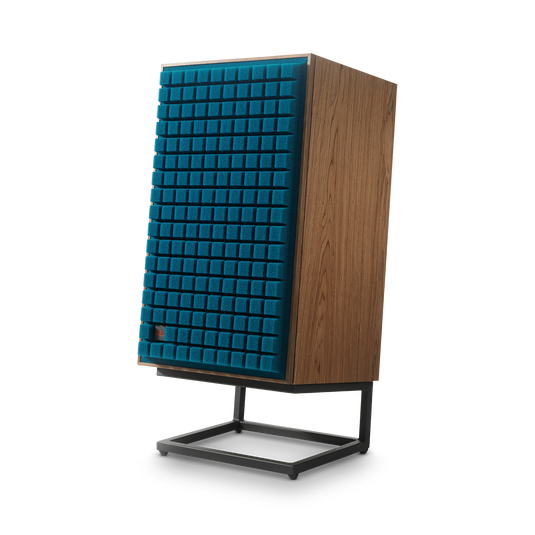

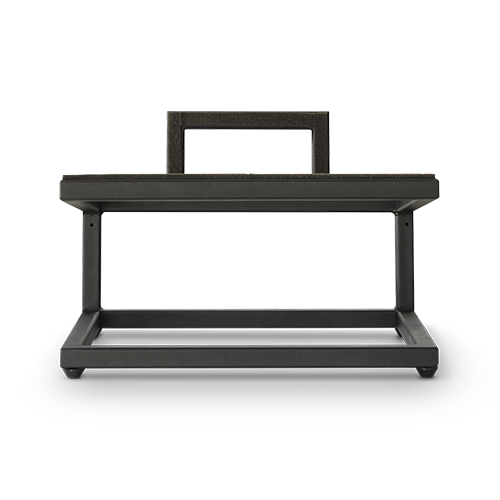

L100 Classic Recommended JS-120 speaker stands (sold seperately). - Image

Recommended JS-120 speaker stands (sold seperately).

Specs & Downloads

Item# JBLL100CLASSICUAM

Description

L100 Classic

In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL’s history. We are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance. Accessory JS-120 floor stands lift and tilt the speaker for optimimum performance.

General Specifications

Low-frequency transducer
12-inch (300mm) pure pulp cone woofer (JW300PW-8)
Mid-frequency transducer
5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
High-frequency transducer
1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
Sensitivity
90dB (2.83V/1m)
Power Handling
25 - 200 Watts RMS
Crossover Frequencies
450Hz, 3.5kHz
Impedance
4 Ohms
Frequency Response
40Hz – 40kHz (-6dB)
Dimensions
25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
Weight
58.5 lbs (26.7 kg)
