SSW-1

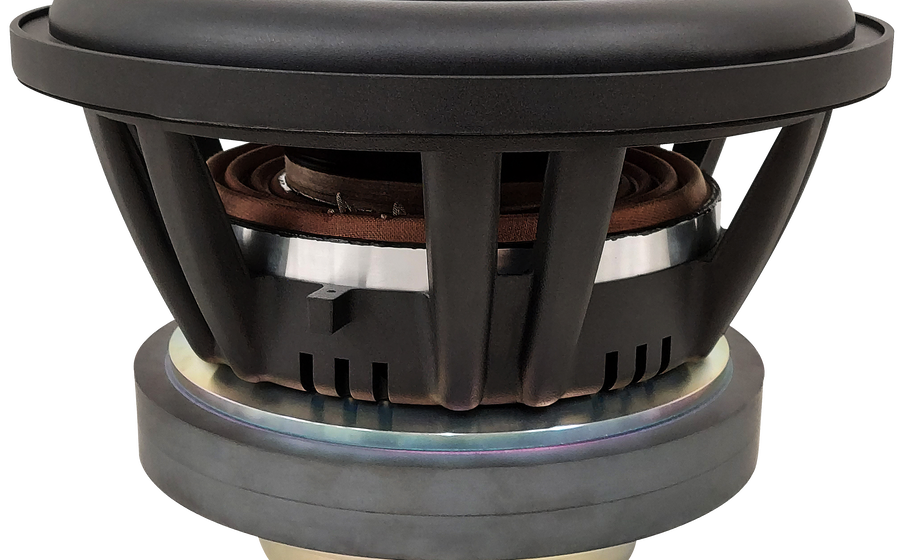

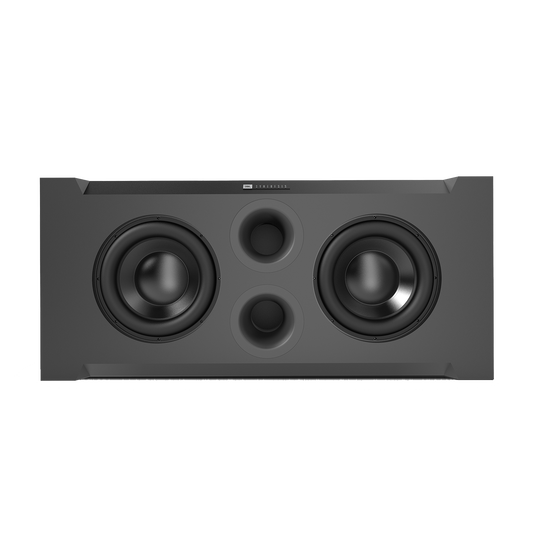

SSW-1 Dual 15" (380mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers with 6-inch (150mm) Voice Coils - Image

Dual 15" (380mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers with 6-inch (150mm) Voice Coils

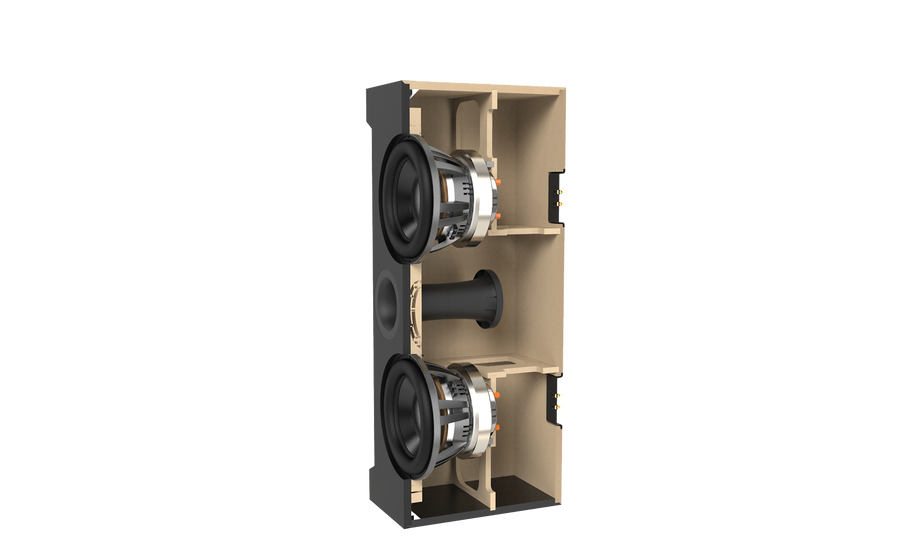

SSW-1 Heavily-braced, 1-inch (25mm) thick MDF Enclosure - Image

Heavily-braced, 1-inch (25mm) thick MDF Enclosure

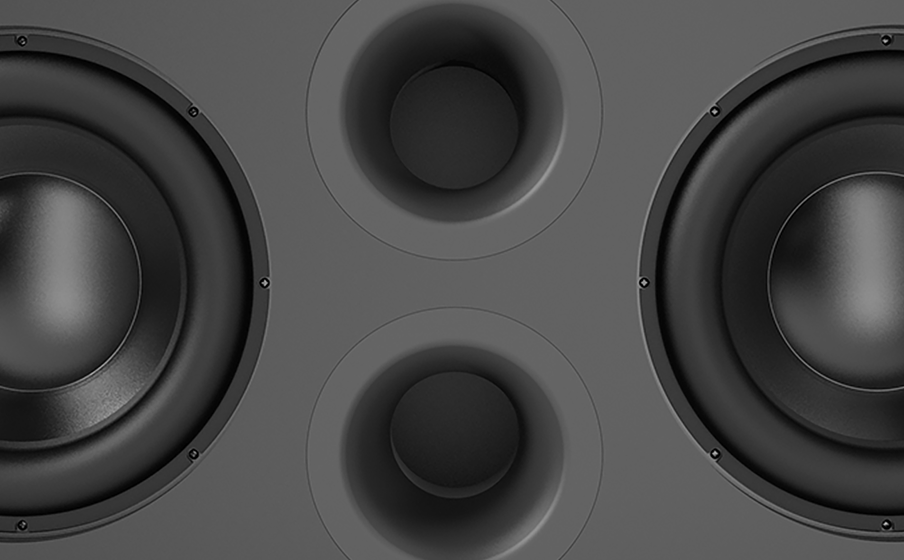

SSW-1 Dual Patented Slipstream™ Front-firing Ports - Image

Dual Patented Slipstream™ Front-firing Ports

Features

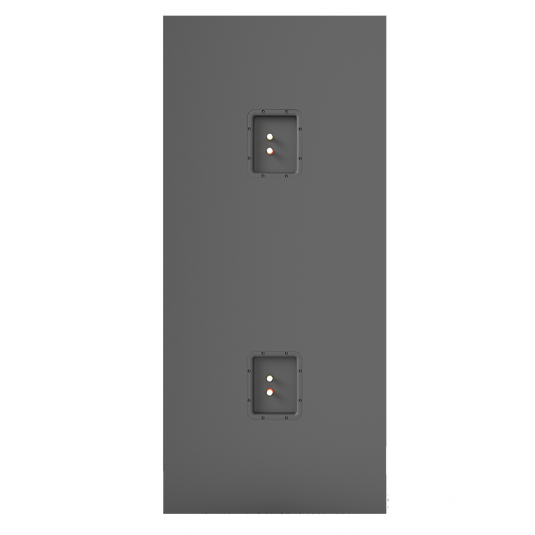

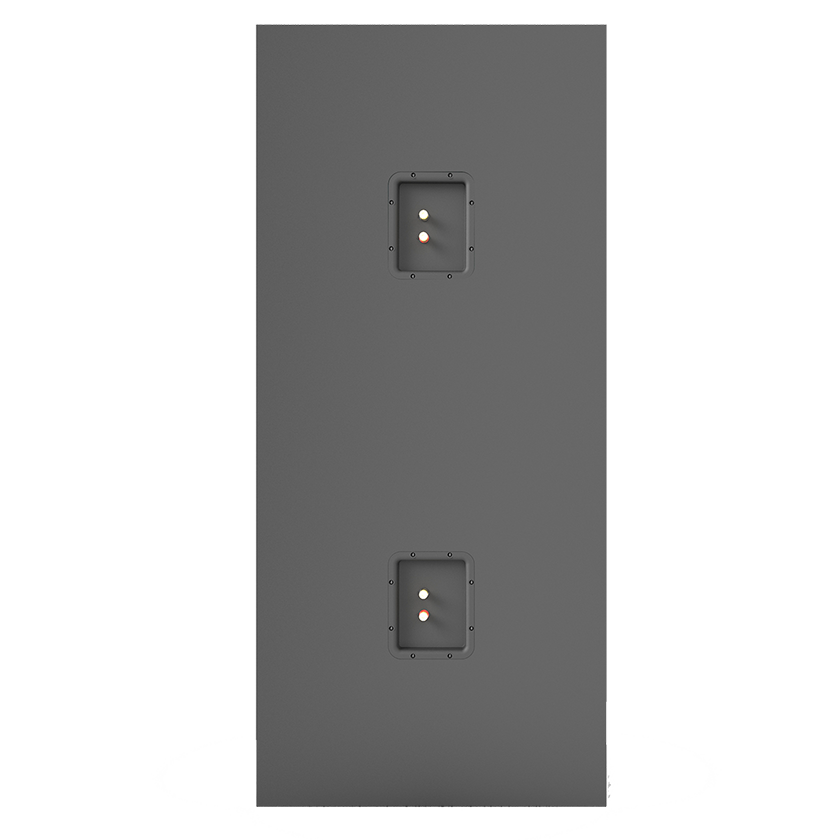

SSW-1 Dual Gold-plated Binding Post Input Terminals - Image

Dual Gold-plated Binding Post Input Terminals

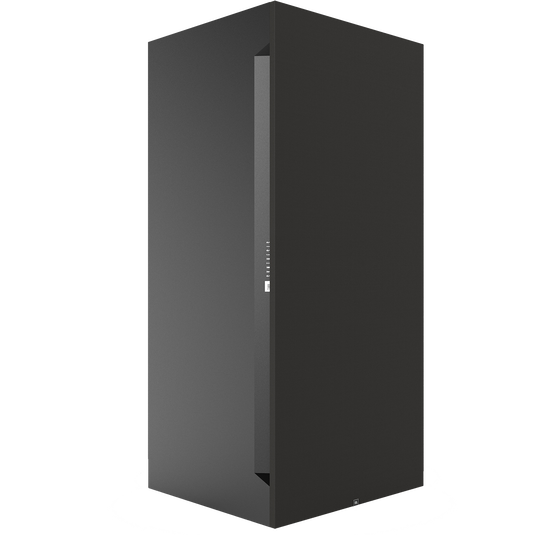

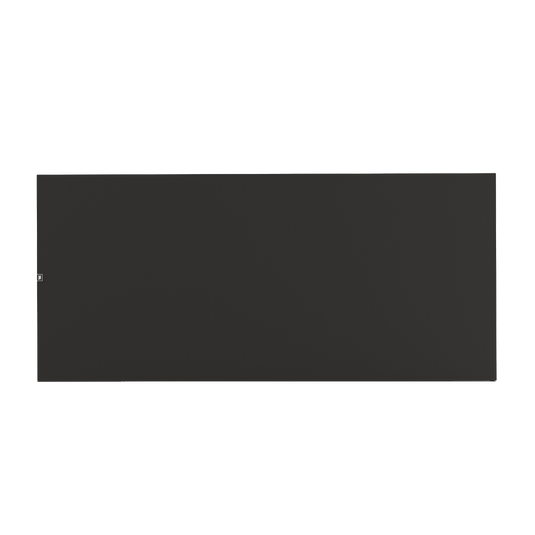

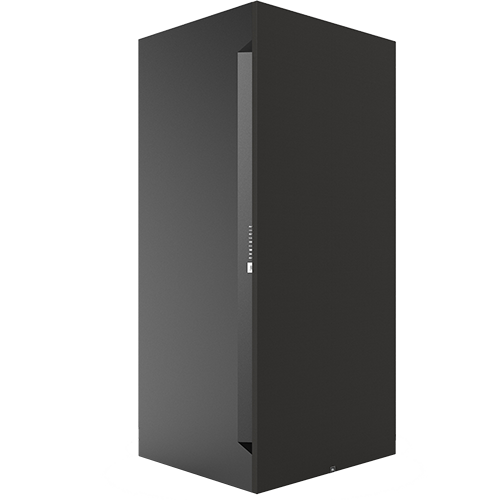

SSW-1 Steel frame, Magnetically-attached Black Cloth Grille - Image

Steel frame, Magnetically-attached Black Cloth Grille

Specs & Downloads

Item# JBLSSW1BLK

Description

SSW-1

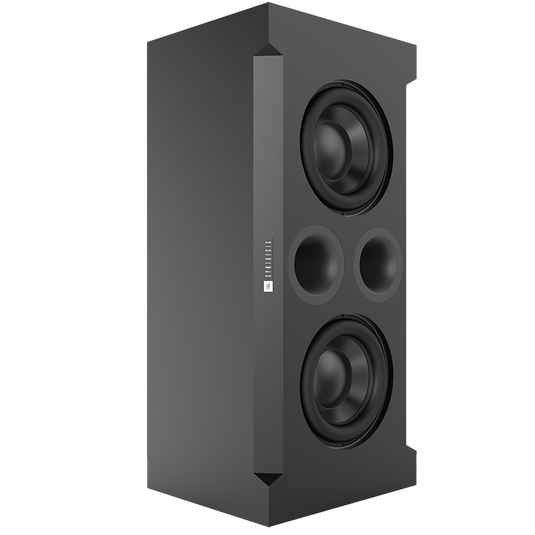

The SSW-1 is a custom in-room/built-in subwoofer and is the flagship of the JBL Synthesis SSW subwoofer range. It features dual 15-inch (380mm) high-excursion cast-frame woofers in a heavily-braced, front-ported enclosure constructed from 1-inch MDF throughout. The SSW-1 delivers extreme low-frequency performance and high SPL output levels for custom installations in large to extra-large rooms.

General Specifications

Type
Dual 15-inch (380mm) in-room passive subwoofer
Recommended Amplifier Power
2500 WRMS per woofer (5,000 WRMS total)
Recommended Amplifier
(1) JBL Cinema MA4-D (bridged)
Impedance
8 Ohm per woofer
Loudspeaker Sensitivity
90 dB/1W/1m
Frequency Response
15 Hz – 400 Hz (-6 dB)
Low Frequency Extension
13.5 Hz (-10 dB), 15 Hz (-6 dB), 16.7 Hz (-3 dB)
Enclosure Type
Bass reflex with dual front slipstream ports, tuned to 18 Hz
Grille Dimensions
53.5" H x 24" W x 0.738" D (1358.9mm x 609.6mm x 18.75mm)
Product Dimensions
53.5" H x 24" W x 22" D (1358.9mm x 609.6mm x 558.8mm)
Input Type
Dual sets of gold-plated binding posts
Product Weight
350.5 lb. (159 kg.)
Shipping Weight
541.5 lb. (245.5 kg.) in crate
Shipping Units of Measure
Each, in crate
Warranty
5 Years
