SCS 145.5

Features

null

All-in-one, six-piece optimized performance

The JBL® SSCS145.5 works together as a simple, all-in-one system that delivers JBL signature sound. The result? Better performance than any stand-alone components – by far. And you get more rich, real, true music and movie experiences.

null

Four two-way satellite speakers

The satellite speakers have titanium-laminate domes and are thin but rigid and deliver accurate high-frequency response even when the volume is way up. The high-frequency driver and the midrange driver are video-shielded, so put them wherever you like.

null

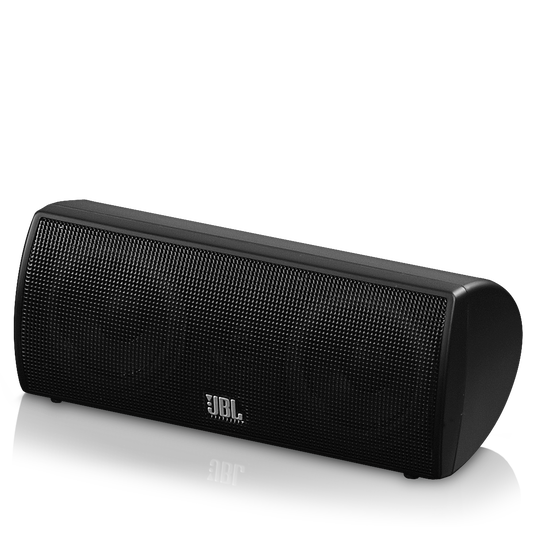

Voice-matched dual-driver center channel

The center channel is probably the hardest-working speaker in a home theater system. You get great power handling and efficiency, and clear dialogue from even the most dynamic movie soundtracks. Components are designed for optimal performance, voice-matched to the center.

null

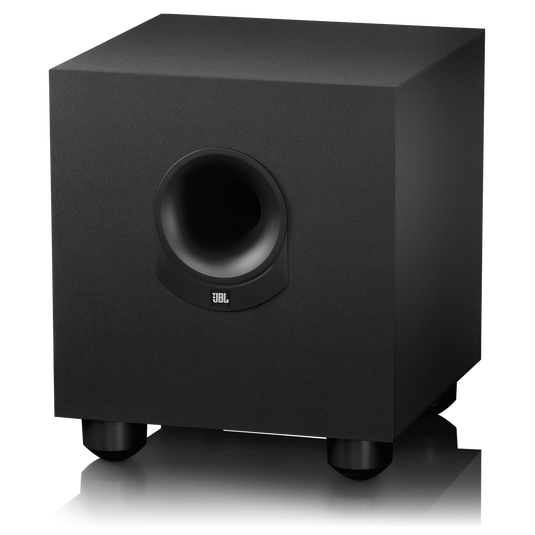

100-watt powered subwoofer

A fast-moving, 8-inch (200mm) woofer and 100 watts of amplification produce clean, lifelike bass. A bass reflex enclosure spreads the response with a double peak, extending it further into the bass region. The effect? Your movies will shake you.

Specs & Downloads

Item# SCS145.5BK

Description

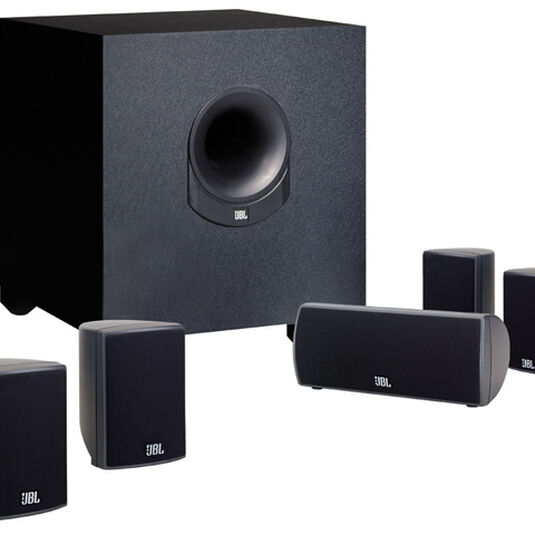

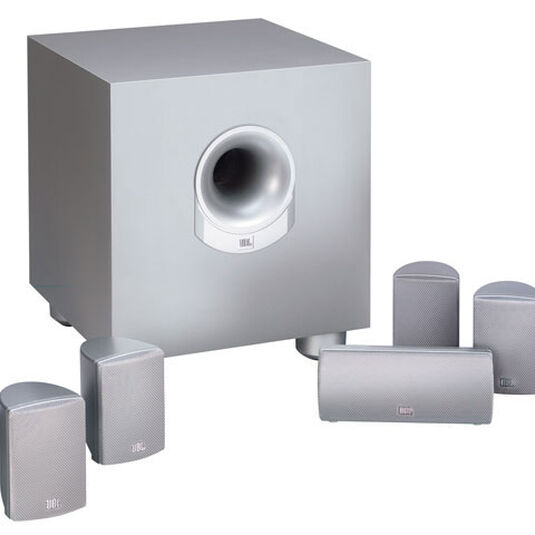

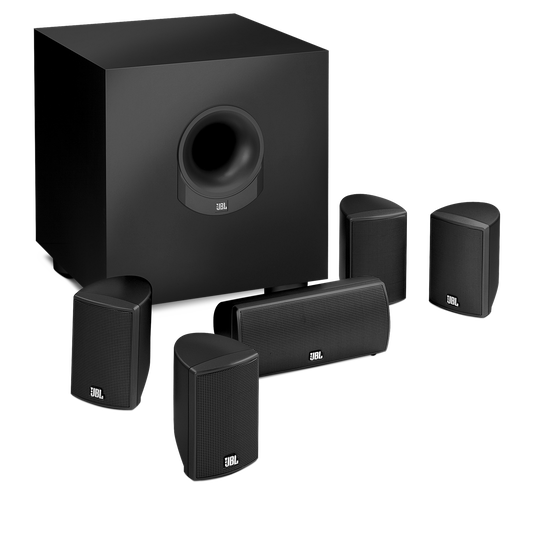

Now JBL brings all of the excitement of the movies directly to your living room. The SCS145.5 loudspeaker system includes four identical 2-way satellite speakers with titanium-laminate dome tweeters; a voice-matched dual-driver center speaker; an 8-inch, 100-watt powered subwoofer that delivers floor-shaking sound effects and all of the cables you need to hook up your speakers and start enjoying your home theater today. The satellites come with wall-mounting brackets, or optional floor stands may be purchased separately.

General Specifications

Finish
Black
Series
Surround Cinema Sound Series
Speaker Enclosure Type
Sealed

Audio Specifications

Speaker Sensitivity
(2.83V@1m) 86dB
Speaker Nominal Impedance
8 ohms
Satellite Sensitivity
(2.83V@1m) 86dB
Satellite Nominal Impedance
8 ohms

Dimensions

Subwoofer Weight (kg)
13.6
Speaker Width (mm)
194
Speaker Height (mm)
83
Speaker Depth (mm)
95
Satellite Weight (lb)
1.1
Subwoofer Height (mm)
381
Subwoofer Depth (mm)
356
Satellite Width (in)
3-3/16
Subwoofer Width (in)
13
Satellite Height (mm)
111
Speaker Width (in)
7-5/8
Subwoofer Height (in)
15
Speaker Depth (in)
3-3/4
Satellite Height (in)
4-3/8
Satellite Weight (kg)
0.5
Satellite Depth (in)
3-3/4
Speaker Height (in)
3-1/4
Subwoofer Width (mm)
330
Subwoofer Weight (lb)
30
Satellite Width (mm)
81
Satellite Depth (mm)
95
Subwoofer Depth (in)
14
Speaker Weight (lb)
1.89
Speaker Weight (kg)
0.86
Weight
CENTER... 1.89 lb (0.86kg)
Weight
SATELLITES... 1.1 lb (0.5kg)
Weight
SUBWOOFER... 30 lb (13.6kg)
Dimensions (H x W x D)
CENTER... 3-1/4 inch x 7-5/8 inch x 3-3/4 inch (83mm x 194mm x 95mm)
Dimensions (H x W x D)
SATELLITES... 4-3/8 inch x 3-3/16 inch x 3-3/4 inch (111mm x 81mm x 95mm)
Dimensions (H x W x D)
SUBWOOFER... 15 inch x 13 inch x 14 inch (381mm x 330mm x 356mm)

Control and Connection Specifications

Connections
(Subwoofer) Line-level inputs left and right, LFE input, surround and center speaker direct wiring inputs; (Satellite/Center Speakers) direct wiring inputs.

What's in The Box?

  • (4) Satellite speakers
  • (1) Owner's Manual
  • (4) Wall mount brackets
  • (1) Center channel speaker with adjustable support leg
  • (1) Powered subwoofer
  • (2) 20' speaker cables for connection from receiver to subwoofer
  • (2) 15' speaker cables for connection from subwoofer to front speakers
  • (3) 40' speaker cables for connection from receiver to rear satellites and center speaker

Documents & Downloads

Reviews and Q&A

Customer Reviews

Product Q&A

Please, I have two satelite speakers broken, were I can buy another pair of these same satelite SCS 145.5?

Asked by: mvaladao
Thank you for your question, you can contact our Level 1 support to place the order for the replacement speaker 22PF48JZA-DW02
Answered by: Randy at JBL
Date published: 2021-06-06

is this speakers have bluetooth connectivity?

Asked by: navin
No. The SCS 145.5 doesn't support Bluetooth technology.
Answered by: Joe G at Customer Service
Date published: 2021-06-06

I was just given a new set of speakers jbl' surround sound. Where can buy the wall mounted brackets for them?

Asked by: captcarl
Please submit a case at http://www.jbl.com/contactus. They will gladly help you out.
Answered by: Joe At Customer Service
Date published: 2021-06-06

Will this system work with the Yamaha RX-V385BL reciever

Asked by: Christian1933
Thank you for your question. Yes, these speakers will work well with that receiver. They have the same Impedance and they are also a match with the amount of power they put out/require. If you need further assistance, please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Julia B, Customer Support
Date published: 2021-06-06

Does it requires an amplifier to work?  Is it included?

Asked by: Jtam
Yes, as the SCS145.5 is just a 5.1 home theater speaker system, and not a complete home theater system. You would need either an amp or a receiver for the speaker system to work.
Answered by: Amir at Customer Service
Date published: 2021-06-06

Own 2 sets, purchased yrs apart. Subs ceasd wrkng proprly, around same time: loud fast thumpng; stndby clickng; light alwys red; unresponsiveness; etc. Powr lossz seem cauz. I fixd problm few times w/o knowng xactly how; I can elaborate w/ more charactrs.

Asked by: In O
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Zoe at Customer Service
Date published: 2021-06-06

One of the satelite speaker it doesn't work any more, i bought  it 3 years ago but i used it for a little while like 20 hours in total. Also the subwoofer doesn't makes any sound, the light its red only in stand by. Please help me

Asked by: Edson
Please contact AmpliAudio, our headquarters in Mexico. They will be able to assist you. AMPLIAUDIO S.A. DE C.V. COL. PARQUE INDUSTRIAL NAUCALPAN, Mexico 52 55 5312-9240
Answered by: Joe At Customer Service
Date published: 2021-06-06

Does this system require use of a receiver to work properly? If I do not have a receiver, does that mean I can't really use it?

Asked by: Alex
Yes, that is correct. You need a 5.1 surround sound audio/video receiver in order to use these speakers. This system includes 5 passive speakers and one powered subwoofer.
Answered by: Joe At Customer Service
Date published: 2021-06-06
