SCL-8
0.0 (0)
Write a review

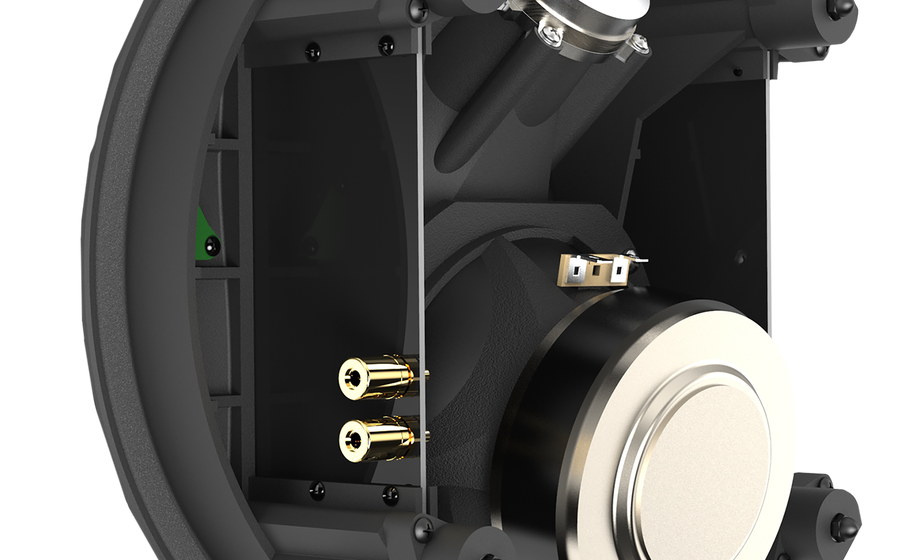

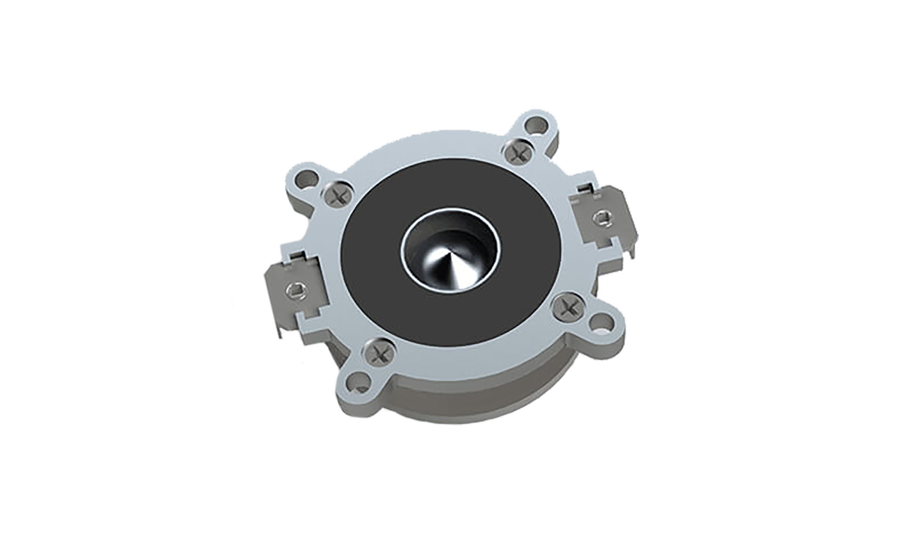

SCL-8 Patented 2410H-2 1-inch (25mm) Compression Driver - Image

Patented 2410H-2 1-inch (25mm) Compression Driver

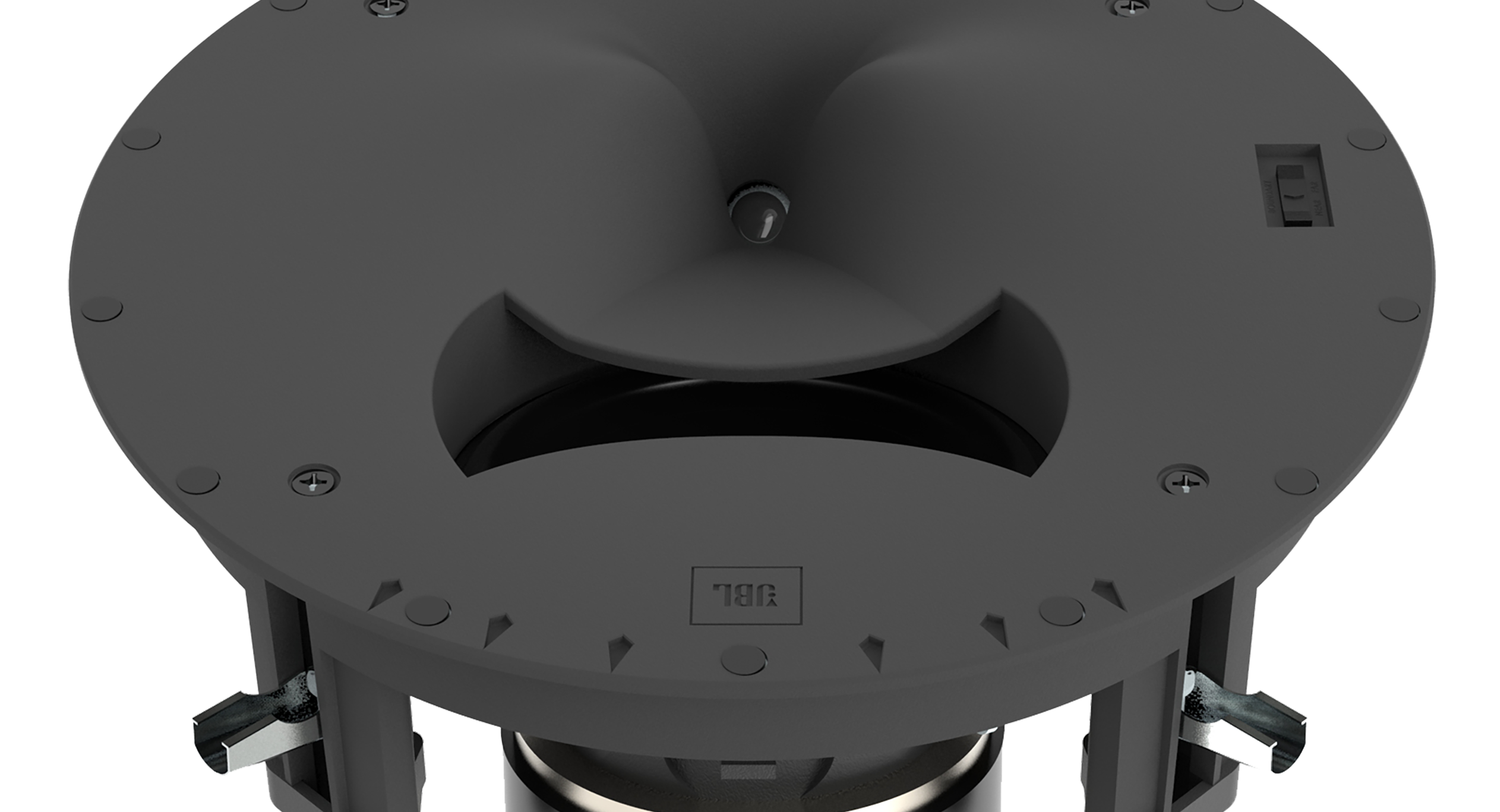

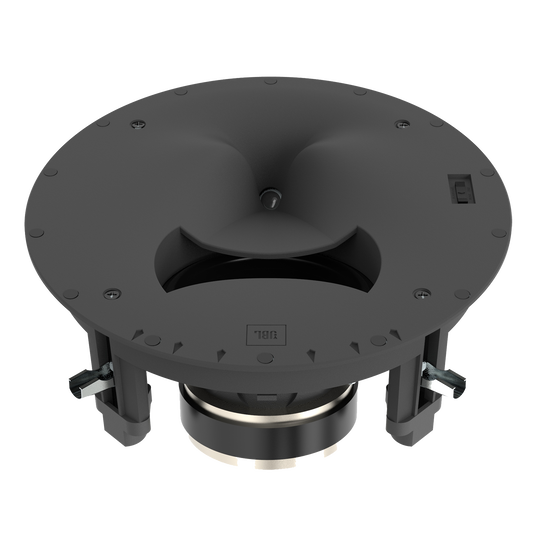

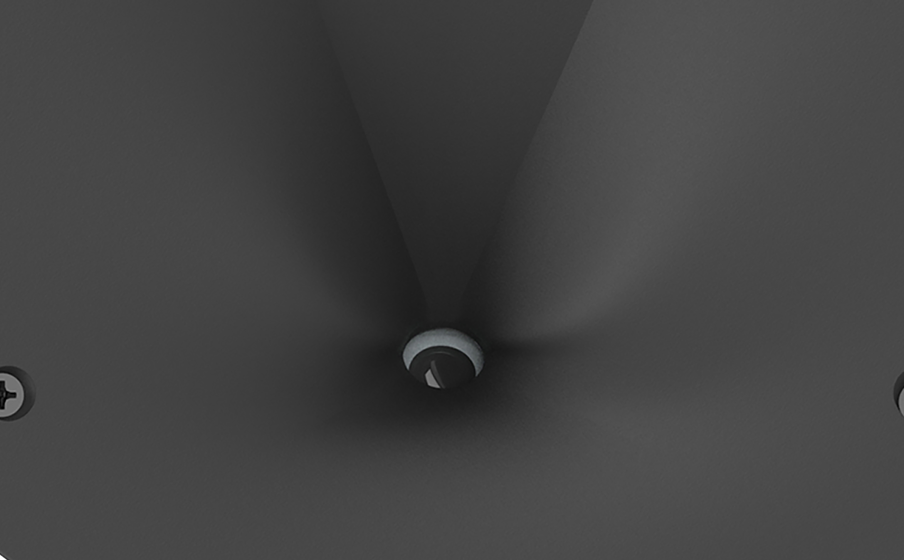

SCL-8 Patented High-Definition Imaging Horn Geometry - Image

Patented High-Definition Imaging Horn Geometry

SCL-8 5.25-inch (130mm) Cast-frame, Advanced Aluminum Matrix Cone Woofer - Image

5.25-inch (130mm) Cast-frame, Advanced Aluminum Matrix Cone Woofer

Features

SCL-8 Molded Baffle with Patented Cat Claw Installation Mechanism - Image

Molded Baffle with Patented Cat Claw Installation Mechanism

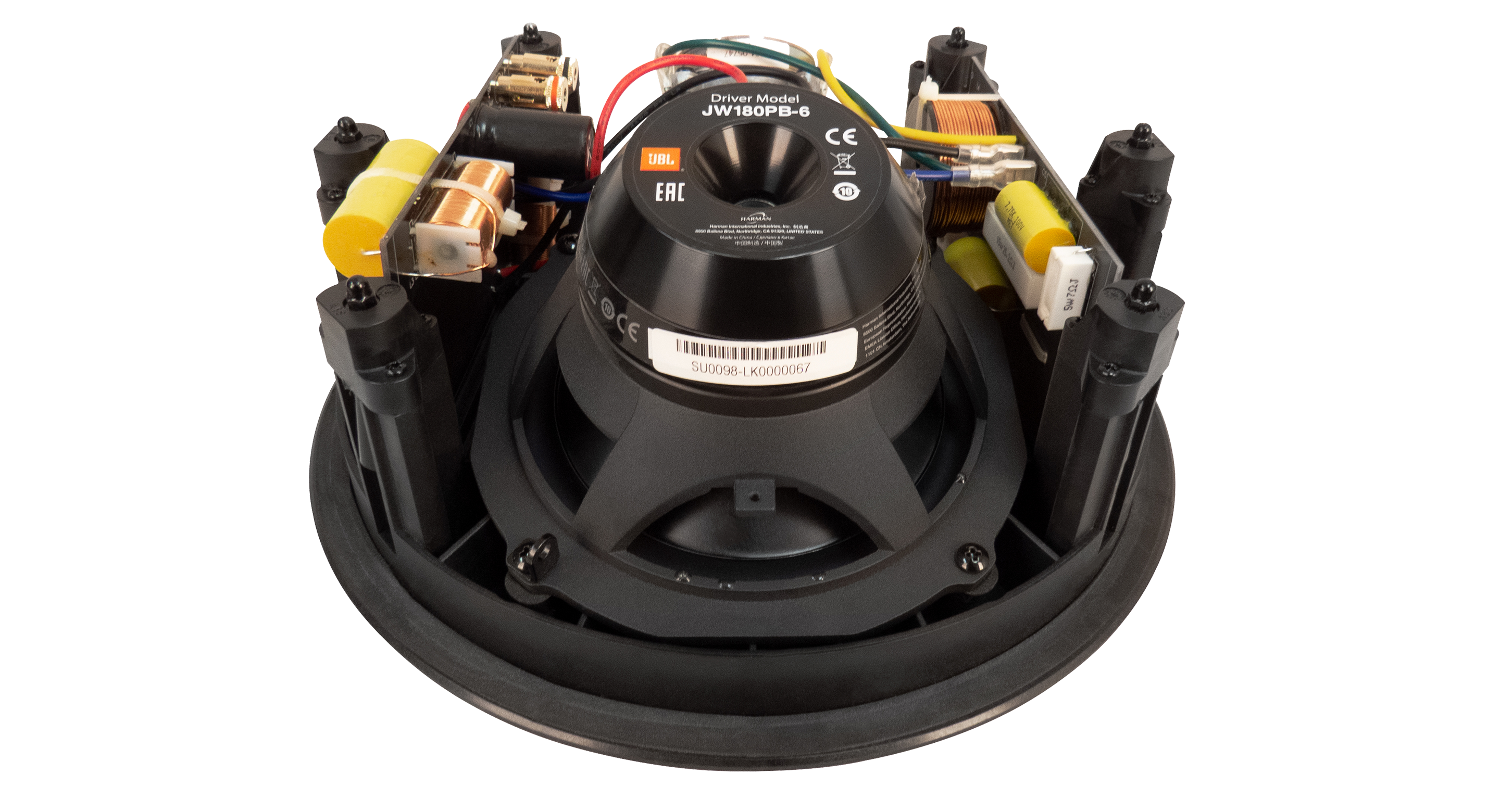

SCL-8 Advanced Crossover Network - Image

Advanced Crossover Network

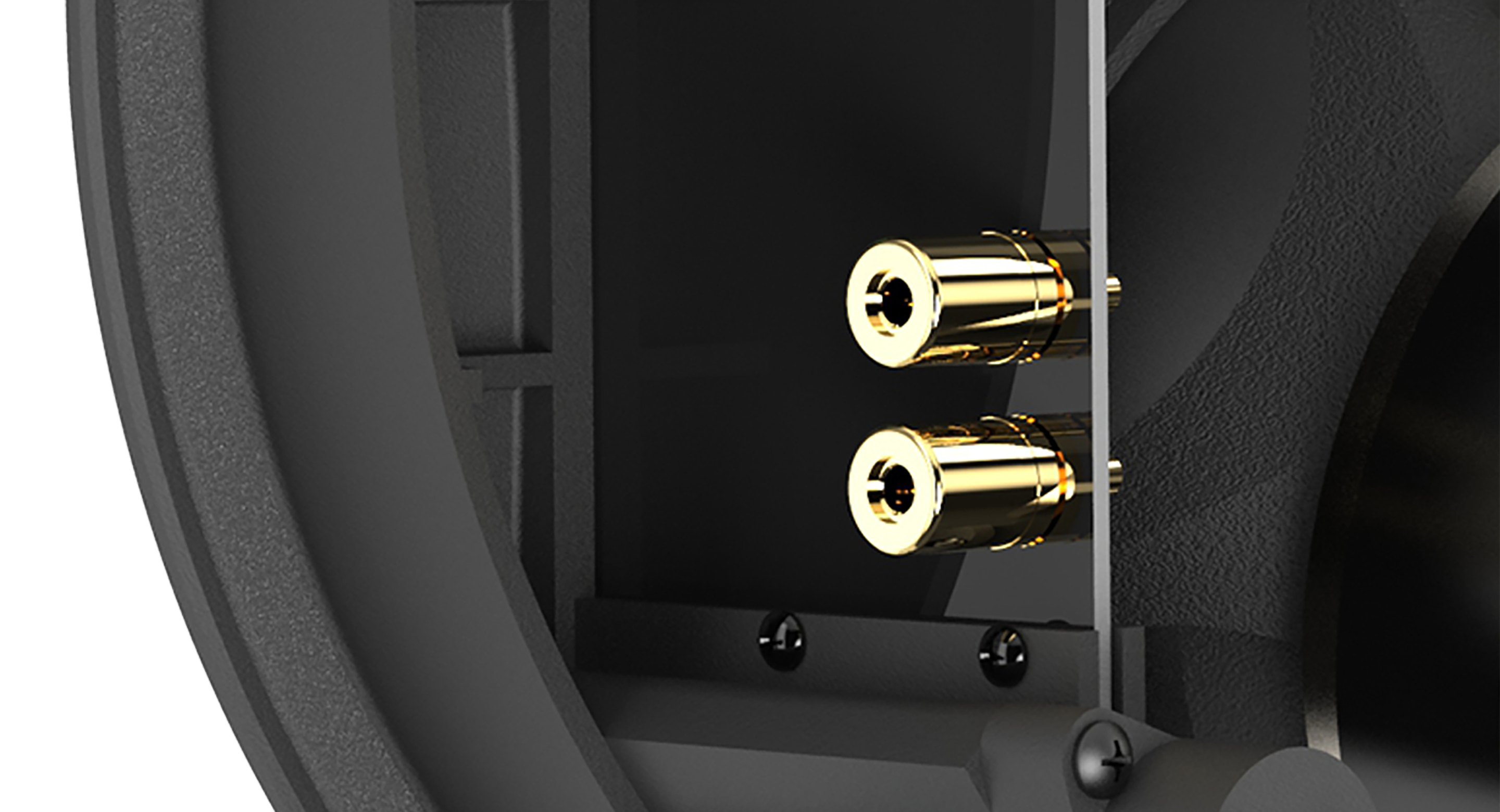

SCL-8 Gold-plated Spring-loaded Binding Post Input Terminals - Image

Gold-plated Spring-loaded Binding Post Input Terminals

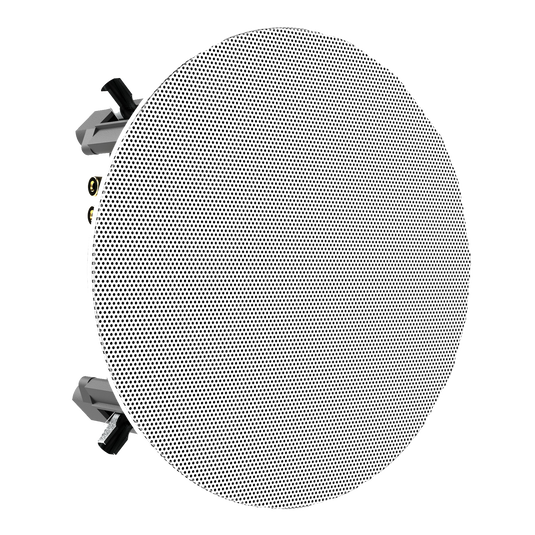

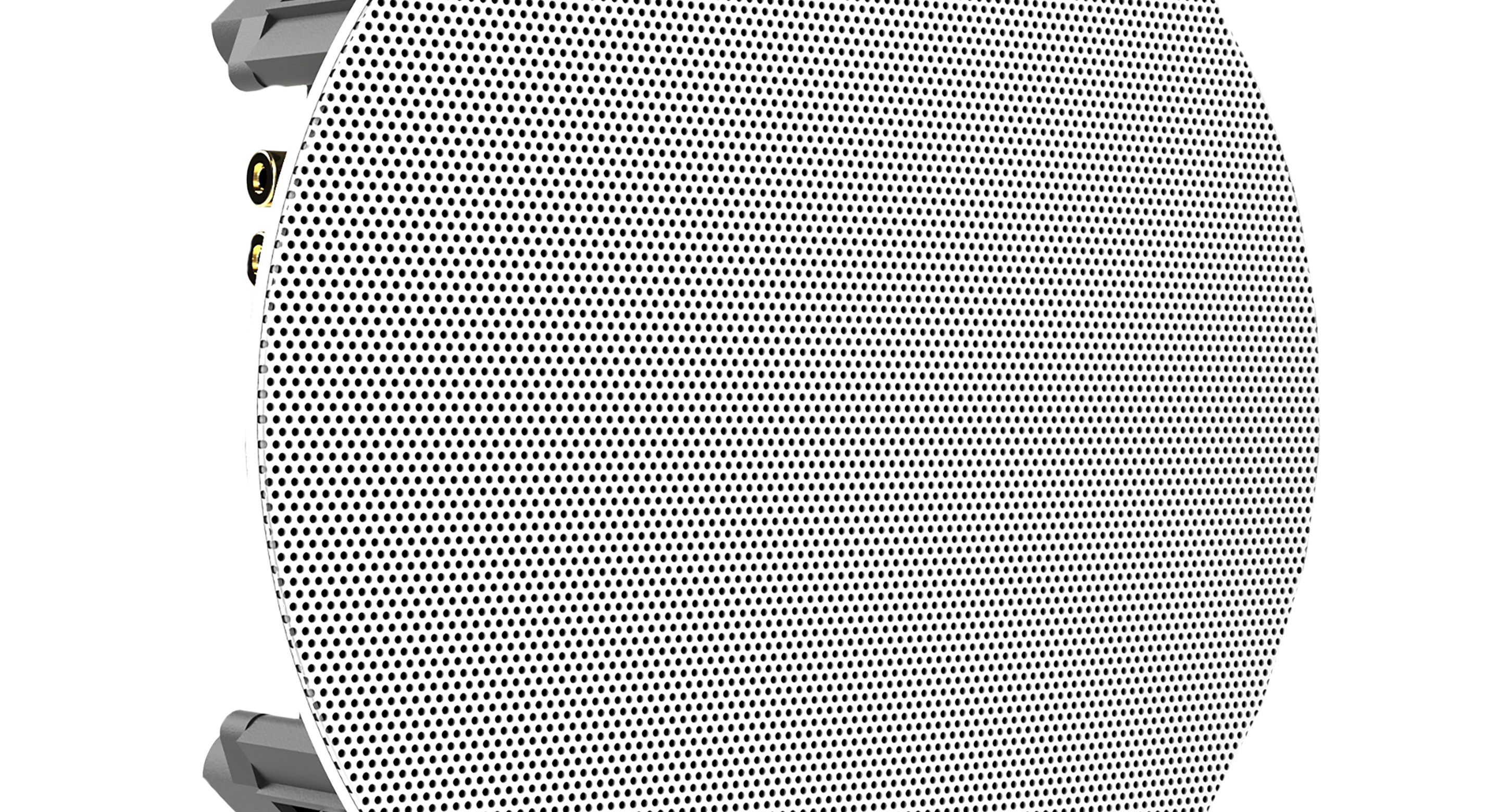

SCL-8 Zero-bezel, Magnetically-attached Paintable Grille - Image

Zero-bezel, Magnetically-attached Paintable Grille

Specs & Downloads

Item# JBLSCL8

Description

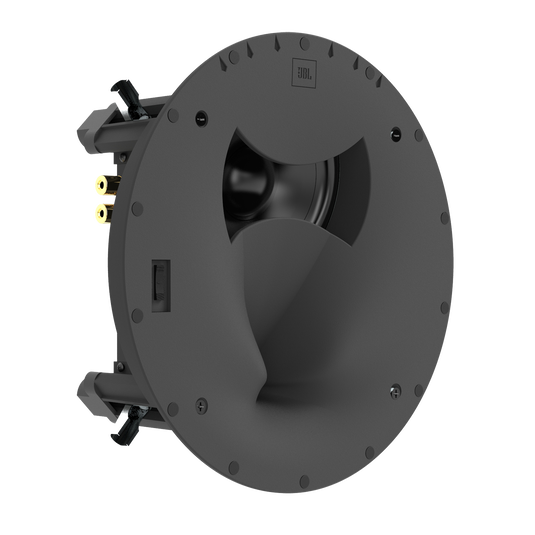

SCL-8

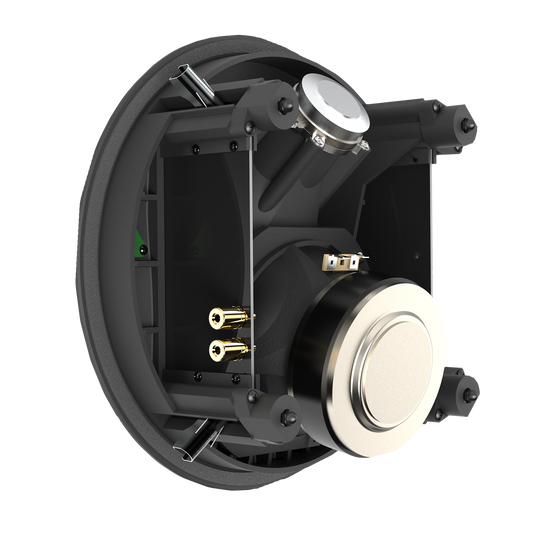

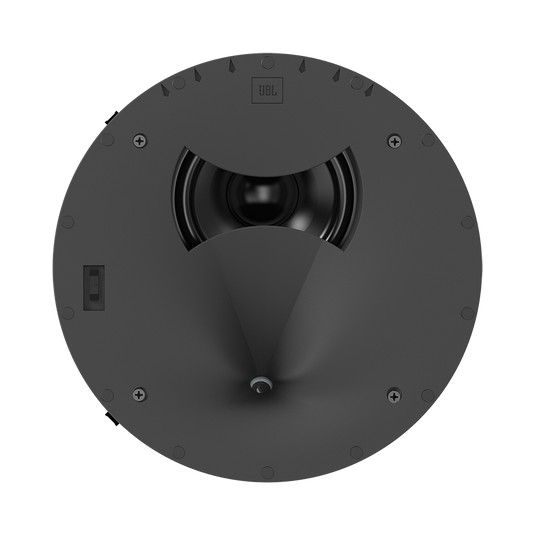

The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker. The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.

General Specifications

Type
2-Way In-ceiling loudspeaker
Low Frequency Driver
5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofer (JW130Al-4)
High Frequency Driver
1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power
25 - 100 W RMS
Impedance
4 Ohm
Loudspeaker Sensitivity
85 dB/2.83V/1m (2pi anechoic)
Frequency Response
55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency
1.8 kHz
High Frequency Coverage Angle (-6dB)
60° Vertical (Up
Enclosure Type
Open back
Controls
Boundary Proximity Control
Warranty
5 Years
Shipping Units of Measure
Each

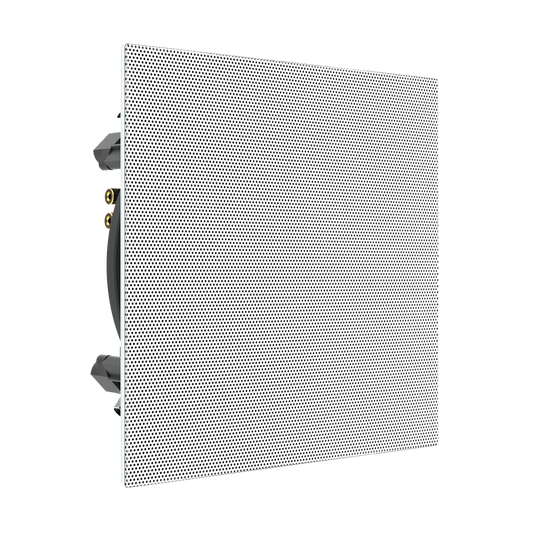

Grill Dimensions (Square)
10.77” (273 mm) x 10.77” (273 mm)

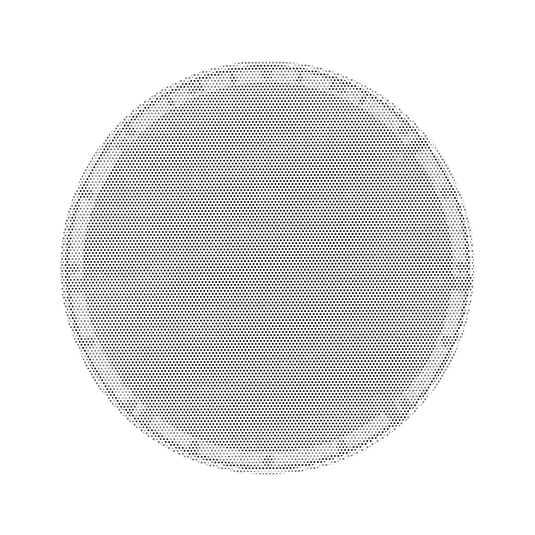

Grille Dimensions (Round)
10.77” (273 mm) Diameter
Product Dimensions (with grille)
10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm)
Cut-out Diameter
9.72” (247 mm)
Accessory Rough-in Bracket
CB8
Mounting Depth
4.54” (115 mm)
Input Type
Gold-plated spring-loaded binding posts
Product Weight
7.8 lb. (3.5 kg)
Shipping Weight
10.6 lb. (4.8 kg)
