SCL-3

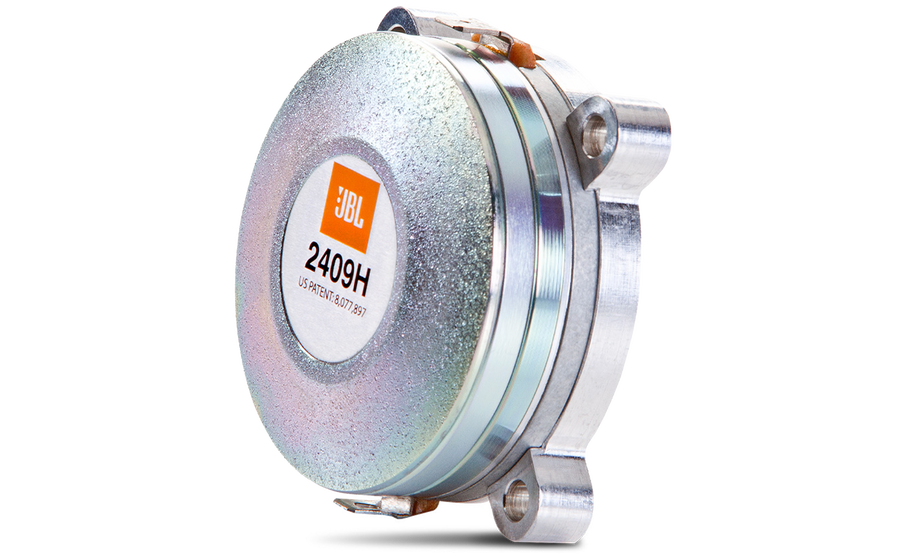

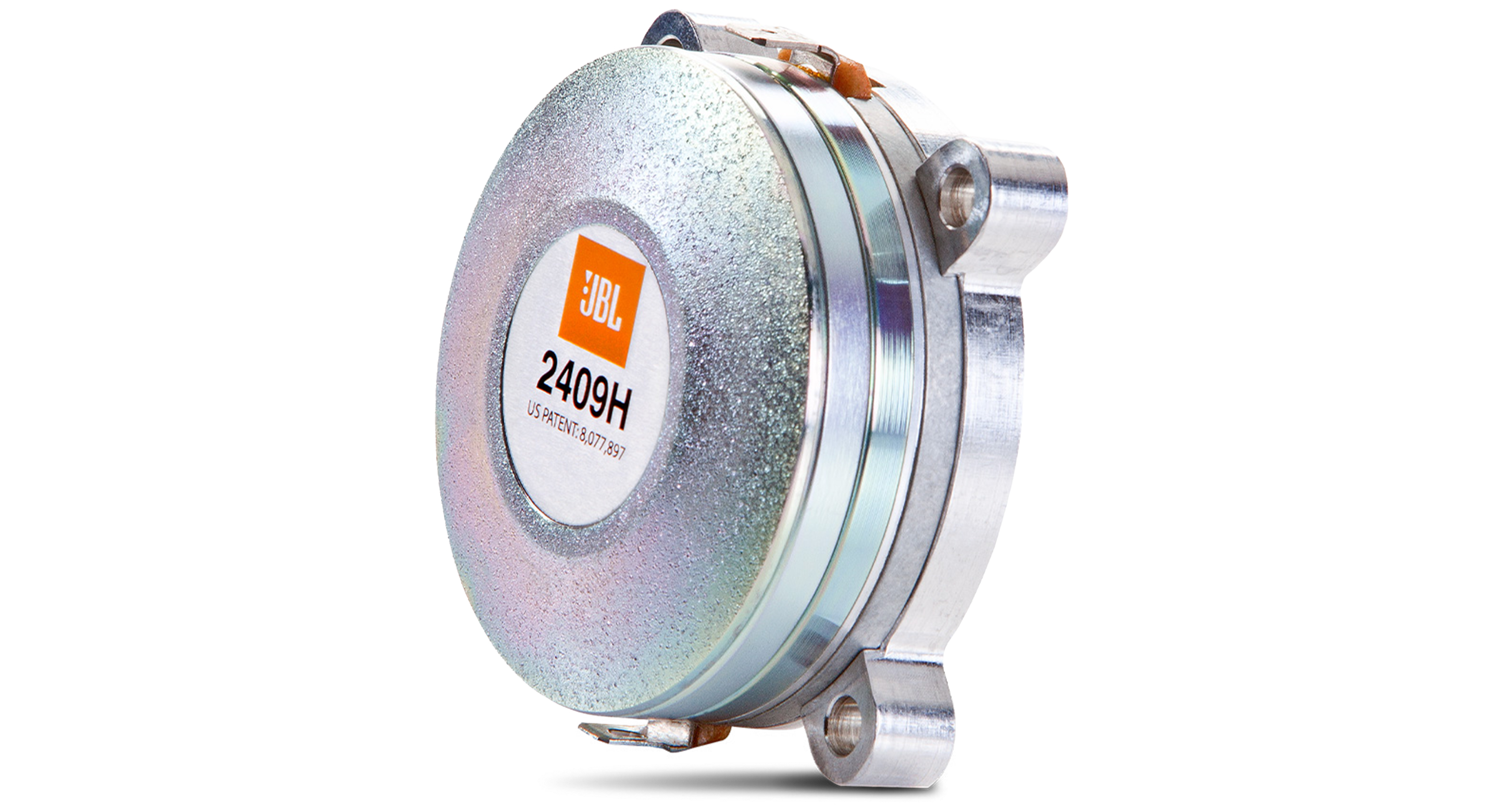

Patented 2409H 1-inch (25mm) Compression Driver

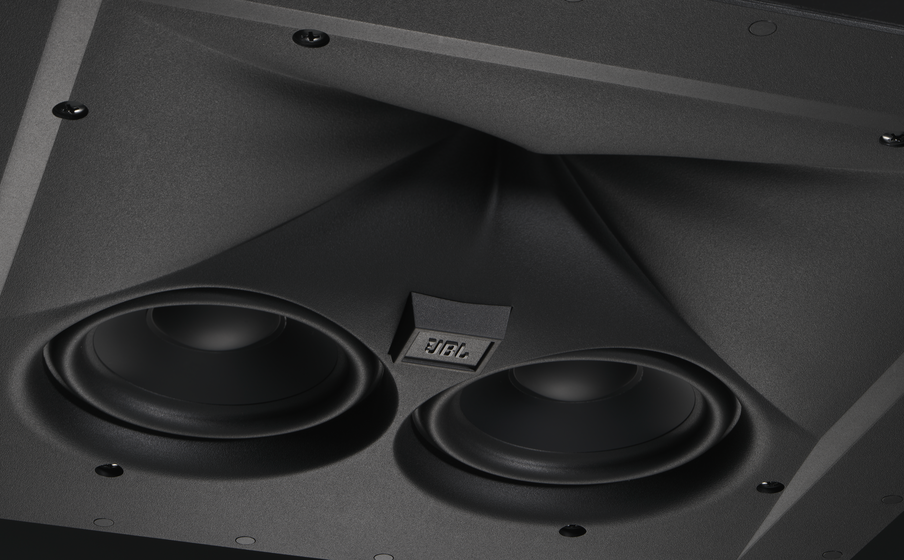

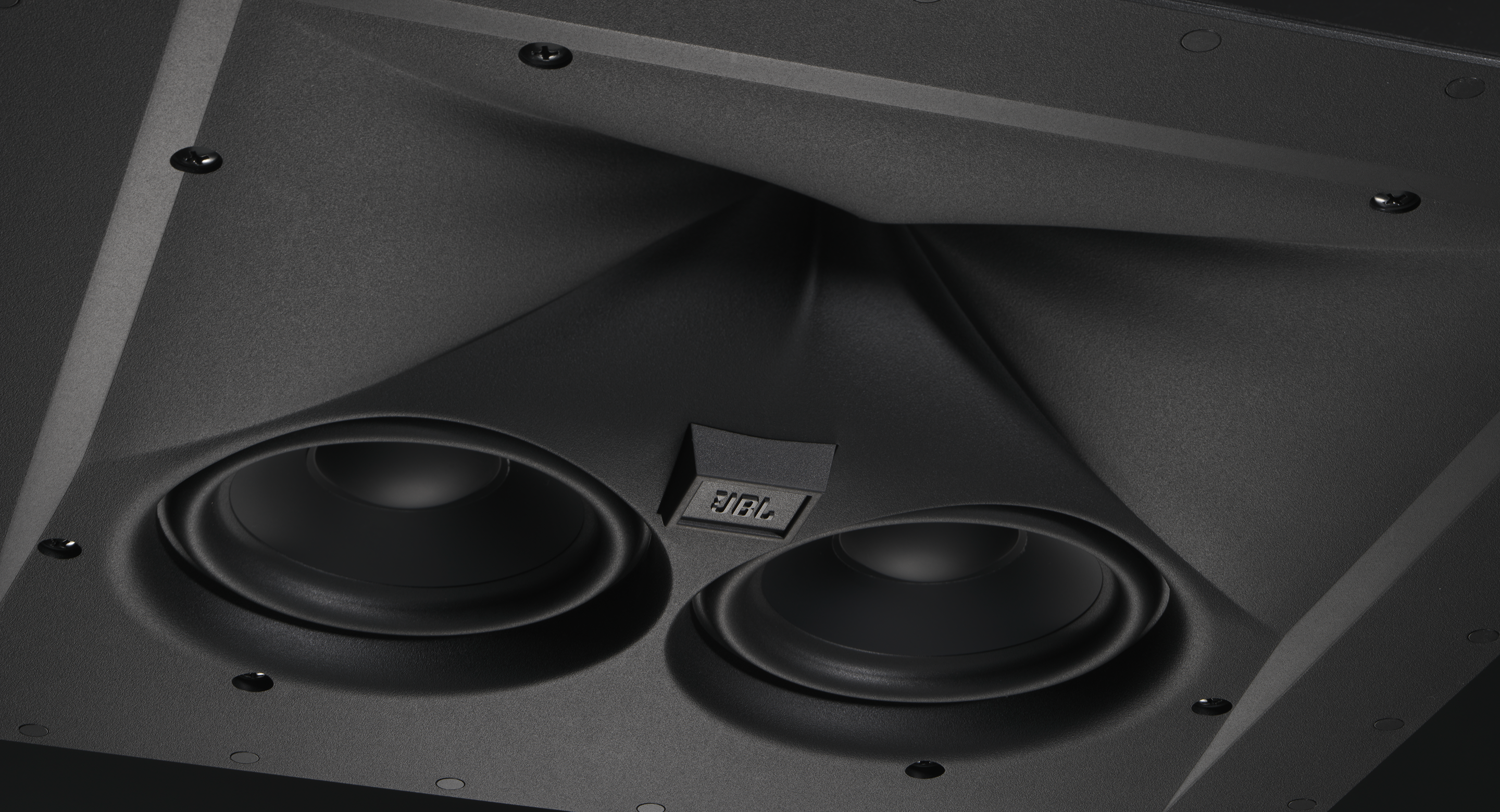

Patented High-Definition Imaging Horn Geometry

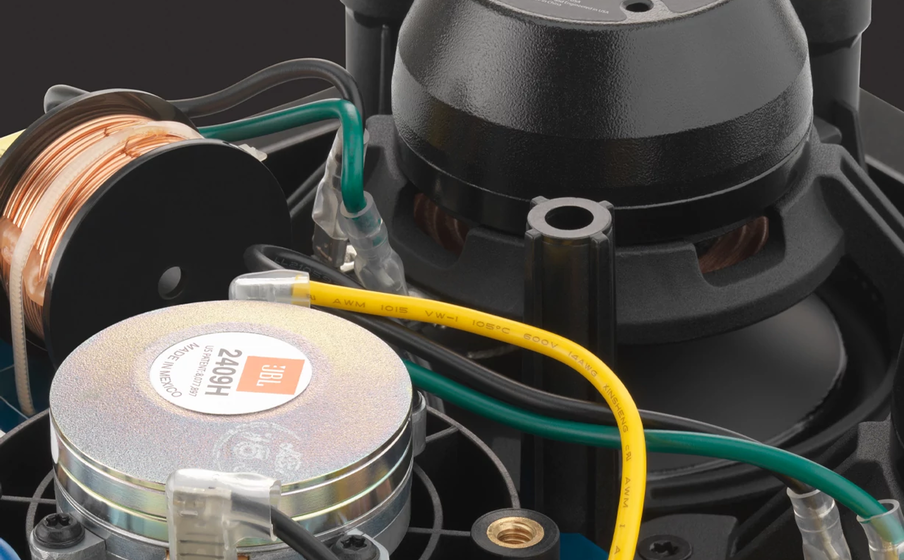

Dual 5.25-inch (130mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers

Features

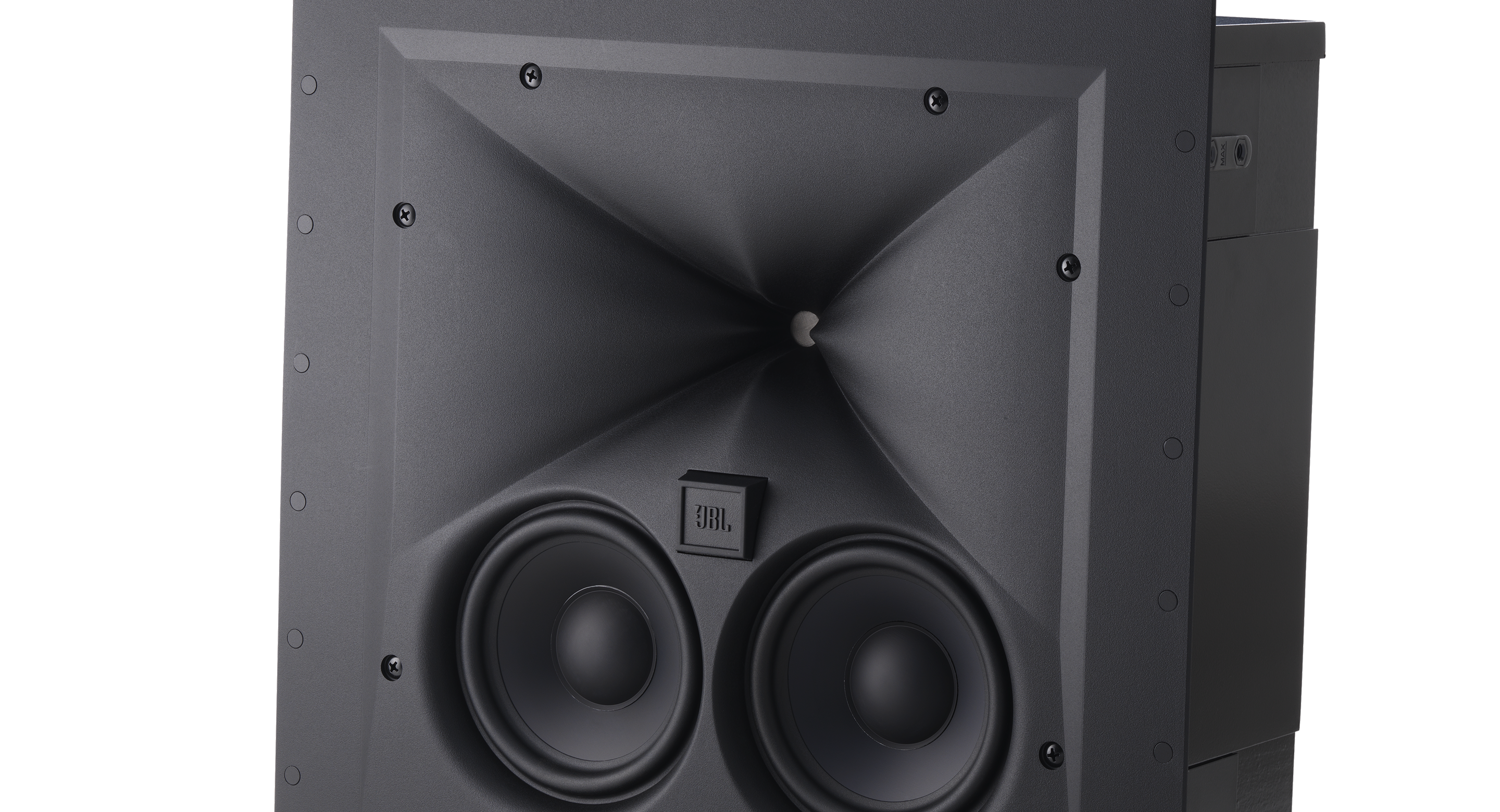

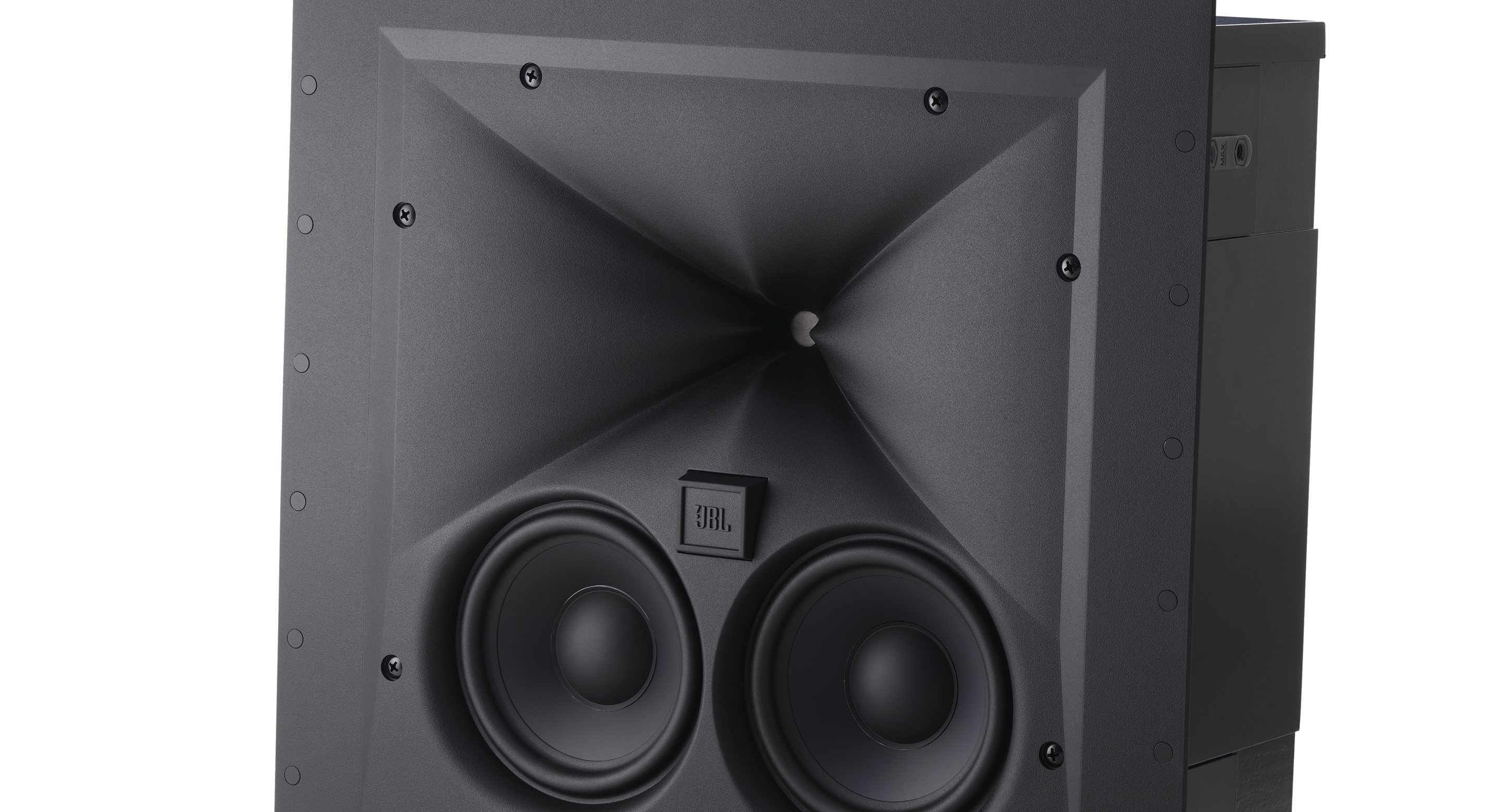

SCL-3 Molded Baffle with Integrated MDF Enclosure and Isolation Mounting System - Image

Molded Baffle with Integrated MDF Enclosure and Isolation Mounting System

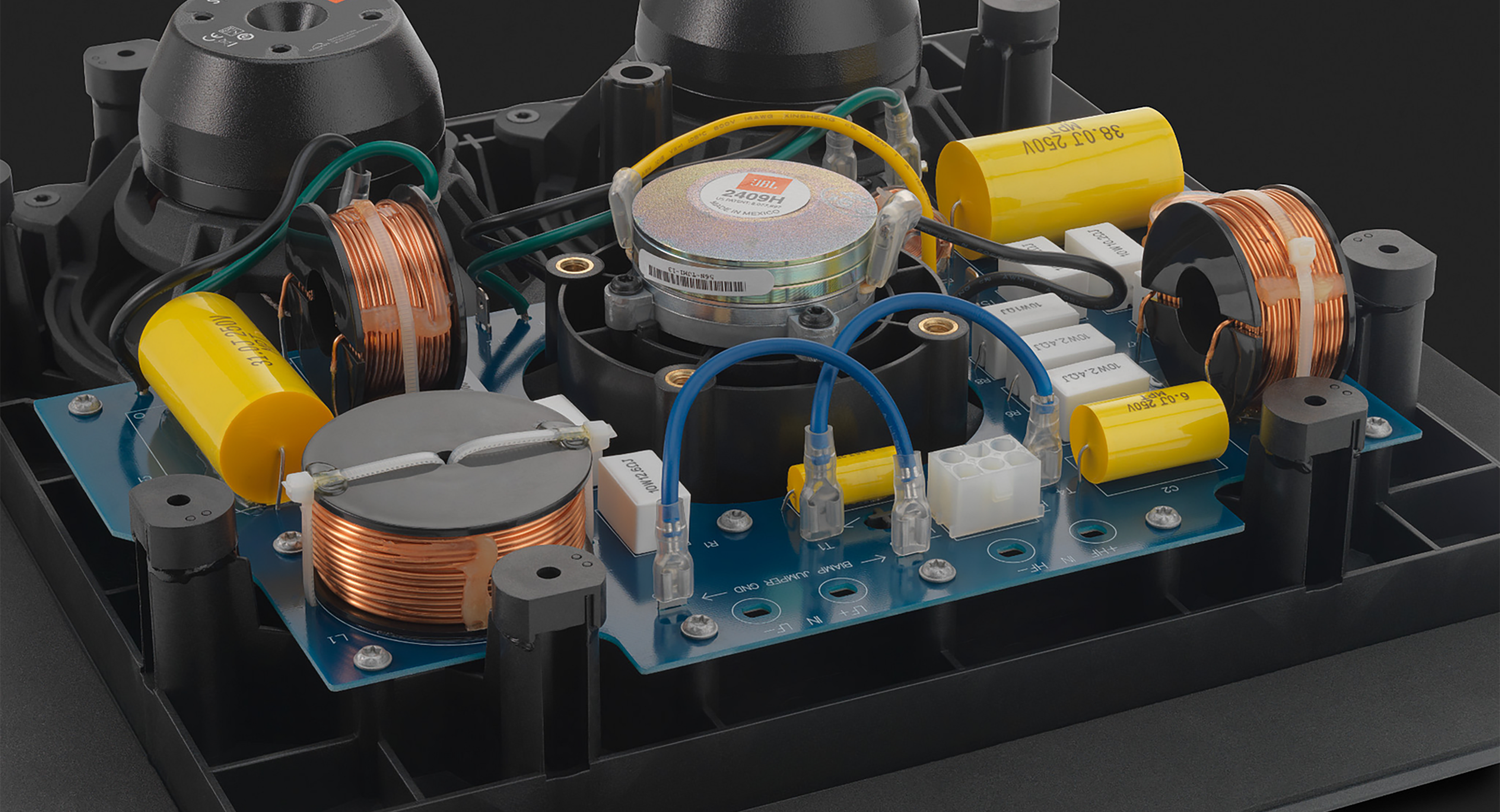

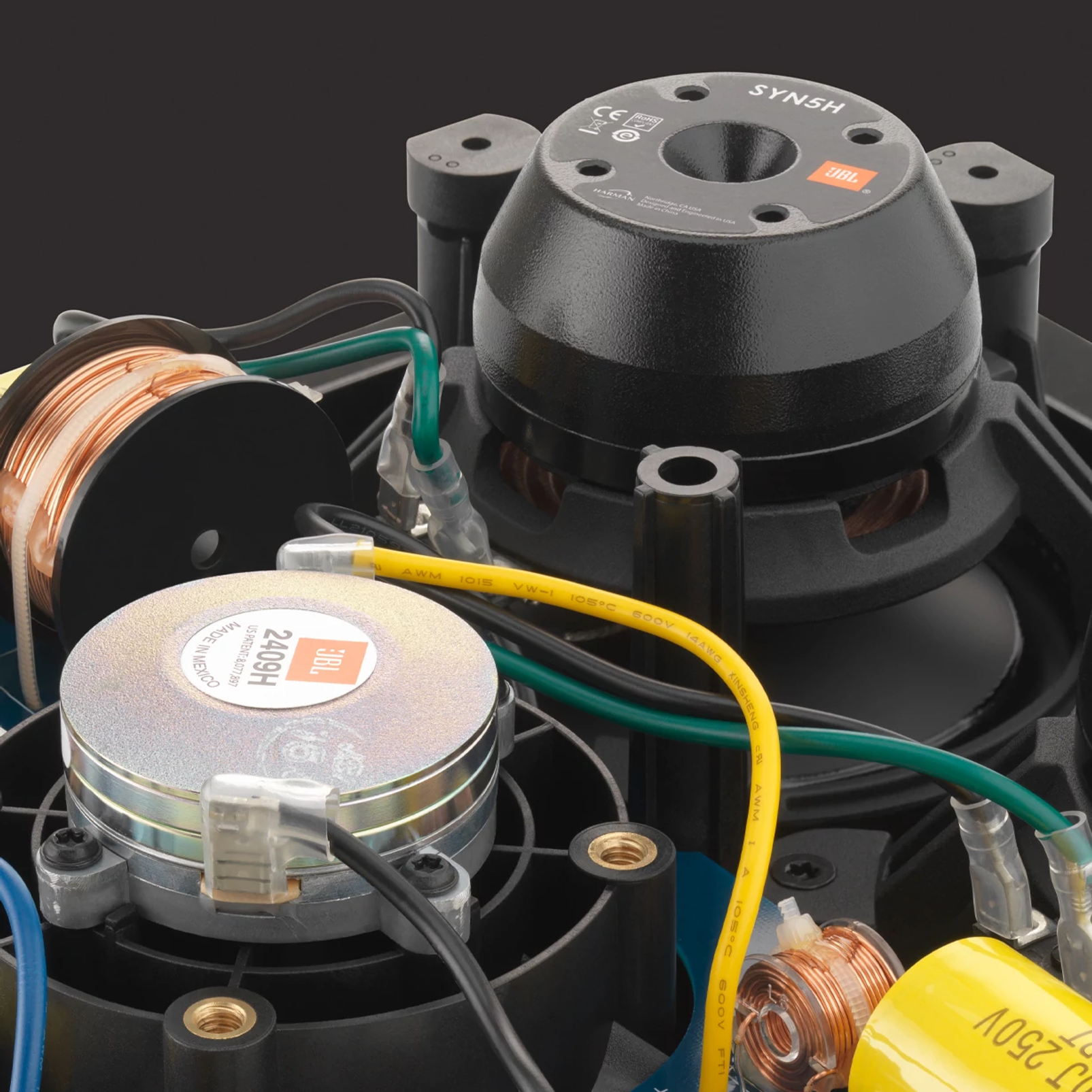

SCL-3 Advanced Crossover Network with Bi-wire/Bi-amp Capability - Image

Advanced Crossover Network with Bi-wire/Bi-amp Capability

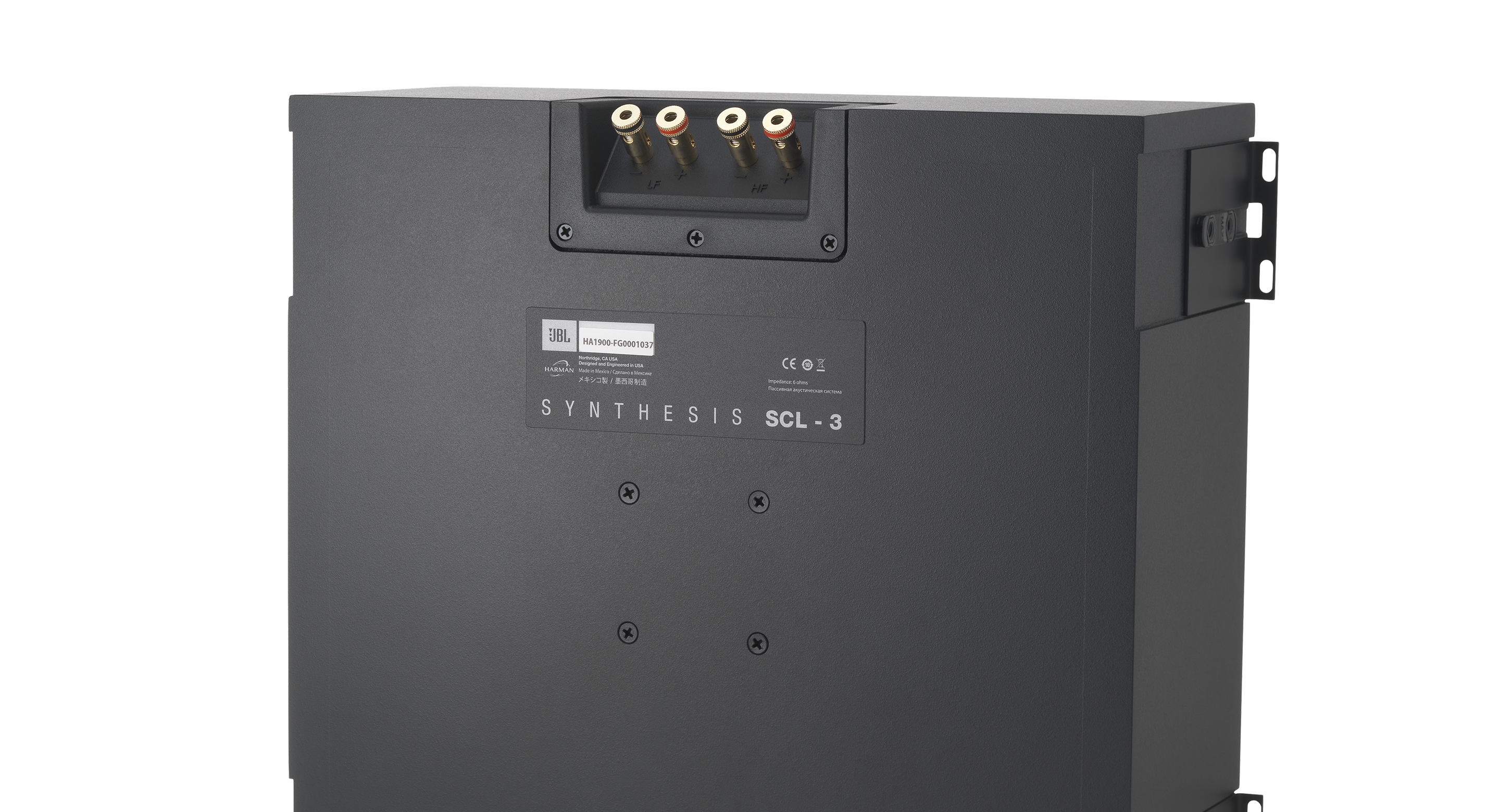

SCL-3 Dual Gold-plated Spring-loaded Binding Post Input Terminals - Image

Dual Gold-plated Spring-loaded Binding Post Input Terminals

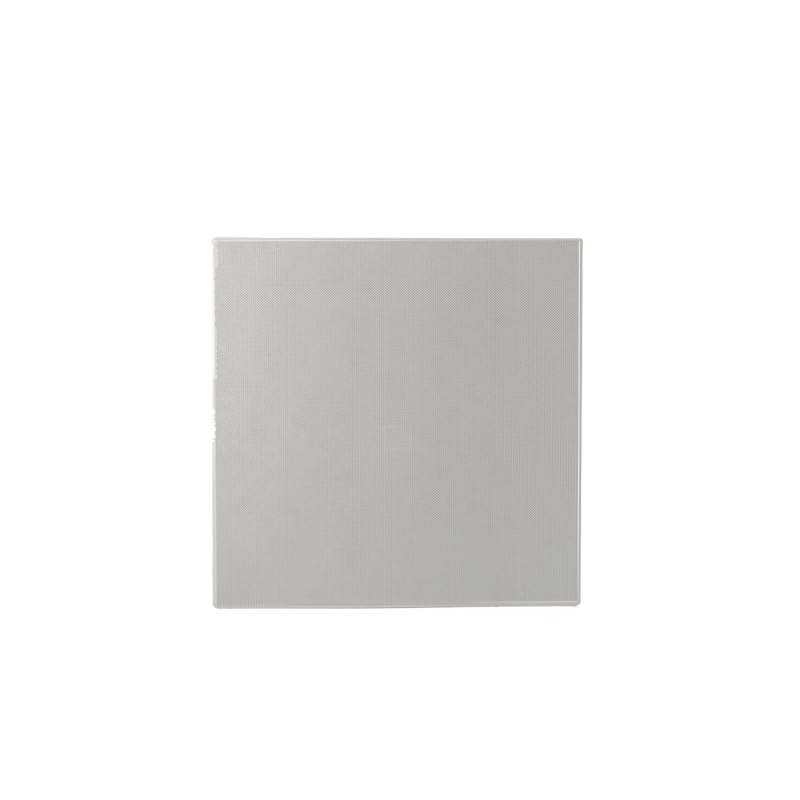

SCL-3 Zero-bezel, Magnetically-attached Paintable Grille - Image

Zero-bezel, Magnetically-attached Paintable Grille

Specs & Downloads

Item# SCL-3

Description

SCL-3

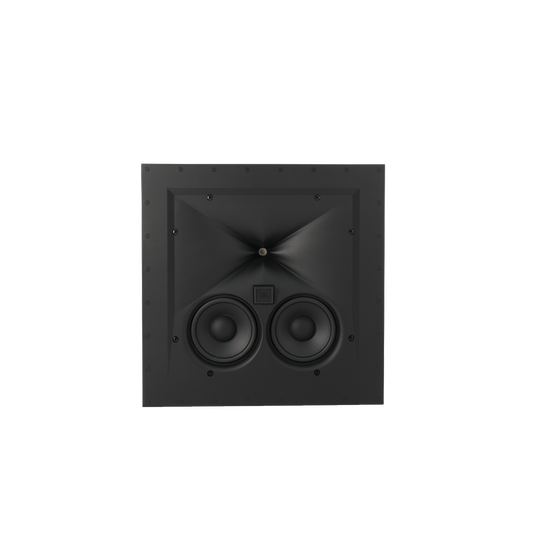

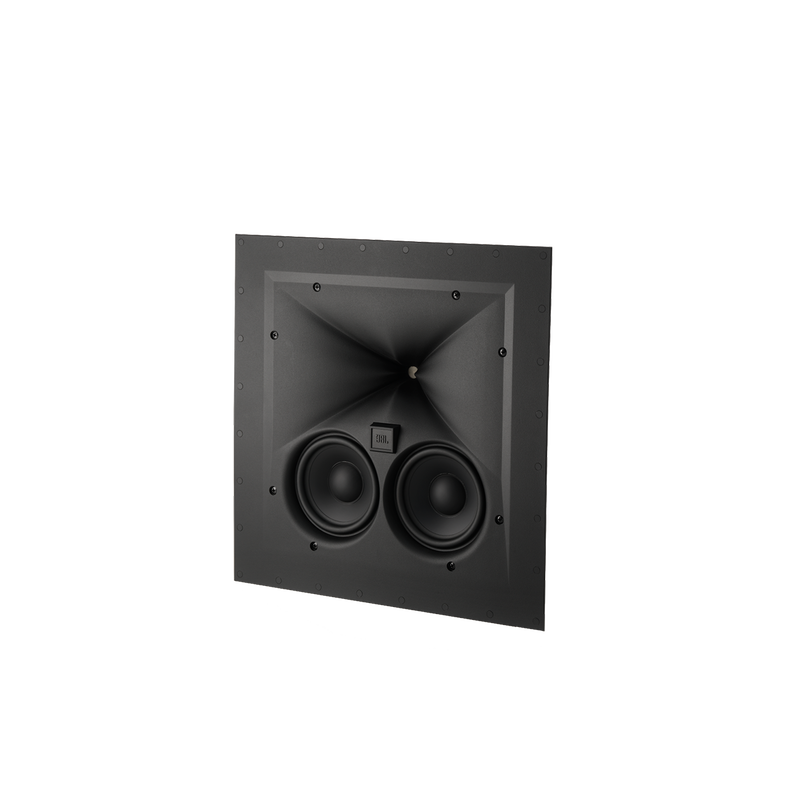

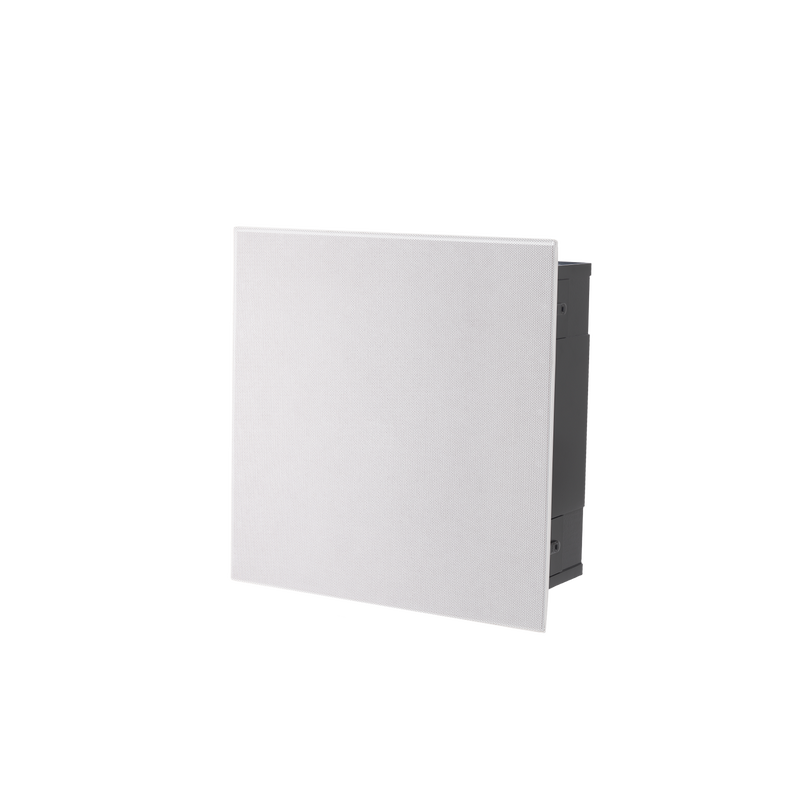

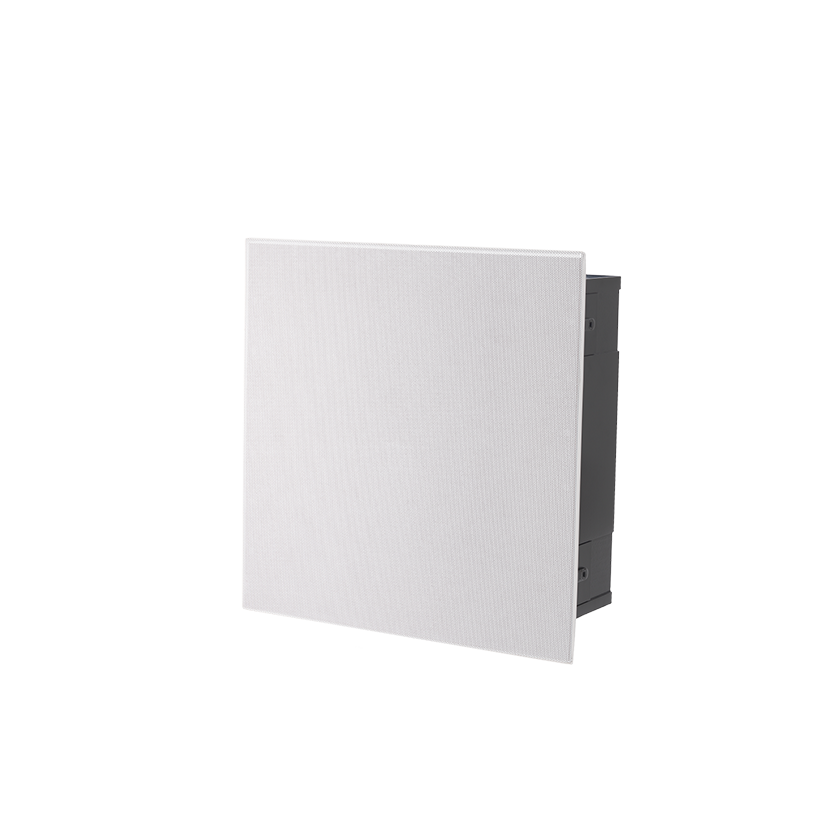

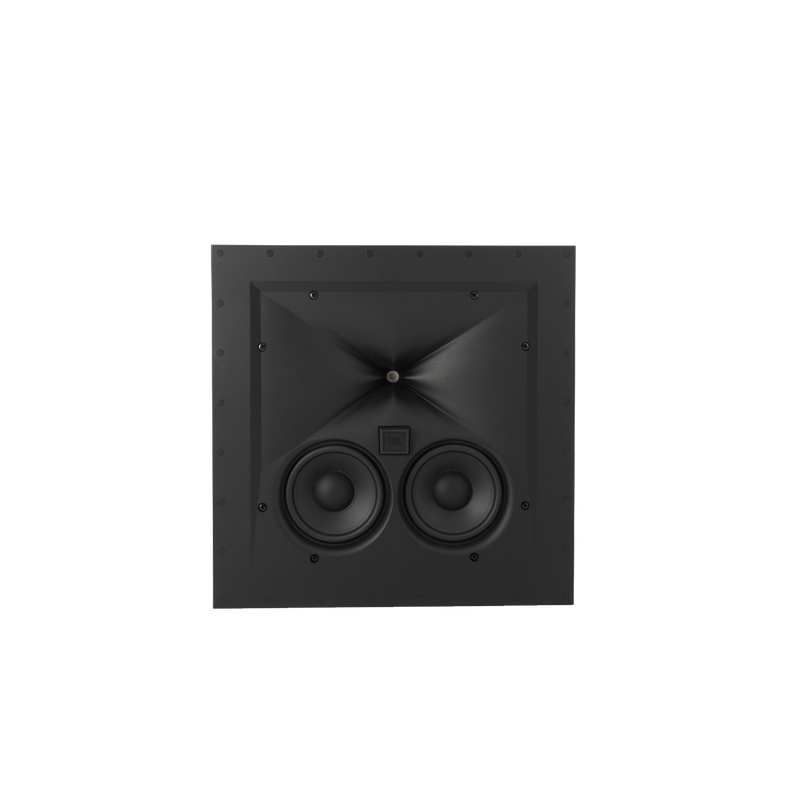

The SCL-3 is a custom in-wall loudspeaker designed primarily for use as an LCR behind projection screens or as a height channel in ceiling applications. It features JBL's patented 2409H 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn. Dual 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers provide detailed and dynamic response with low distortion. The integrated MDF enclosure is designed for installation in standard 2x6 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-3 is ideal for use in medium to large rooms.

General Specifications

Speaker Type
Two-way In-Wall Loudspeaker
Low Frequency Transducer
Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone woofers
Mid/High Frequency Transducer
D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver
Maximum Recommended Amplifier Power
200 watts RMS
Frequency Response (-6dB on-axis)
65 Hz – 33KHz
Coverage area (-6dB @ 20 KHz)
90 x 60 deg, (-6dB @ 10 KHz)
Sensitivity (2.83V@1m)
91dB
Nominal Impedance
6 Ohm
Crossover Frequencies
1.3 KHz
Enclosure type
Sealed In-Wall Mount with included back box
Inputs
Dual Gold-plated Five-way Binding Posts
Dimensions (H x W x D)
16.46" x 16.46" x 6.01" (418mm x 418mm x 153mm)
Weight
24.3 lb (11.02 kg)
Finishes
Matte Black
