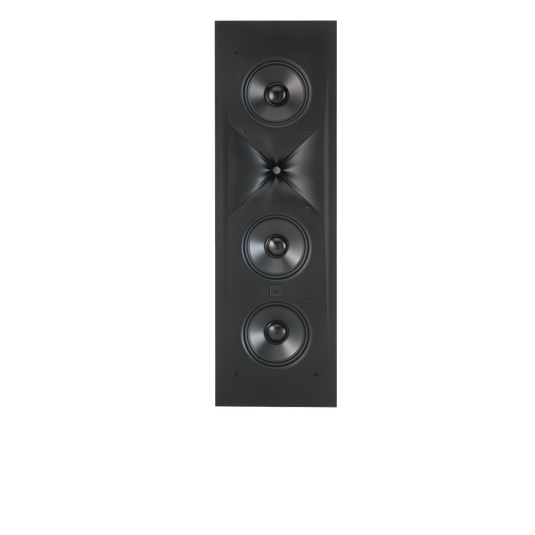

SCL-2
0.0 (0)
Write a review

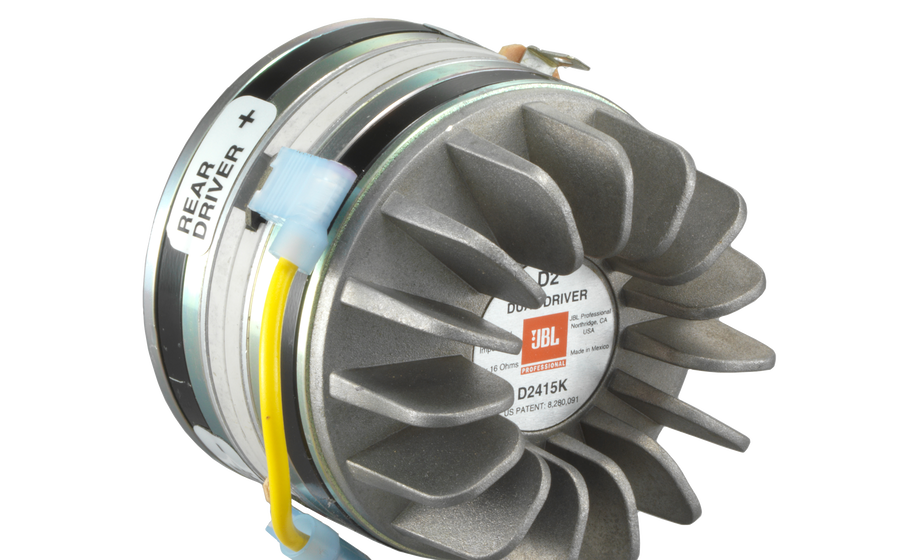

SCL-2 Patented D2415K 1.5-inch (38mm) Dual diaphragm, Dual Motor Compression Driver - Image

Patented D2415K 1.5-inch (38mm) Dual diaphragm, Dual Motor Compression Driver

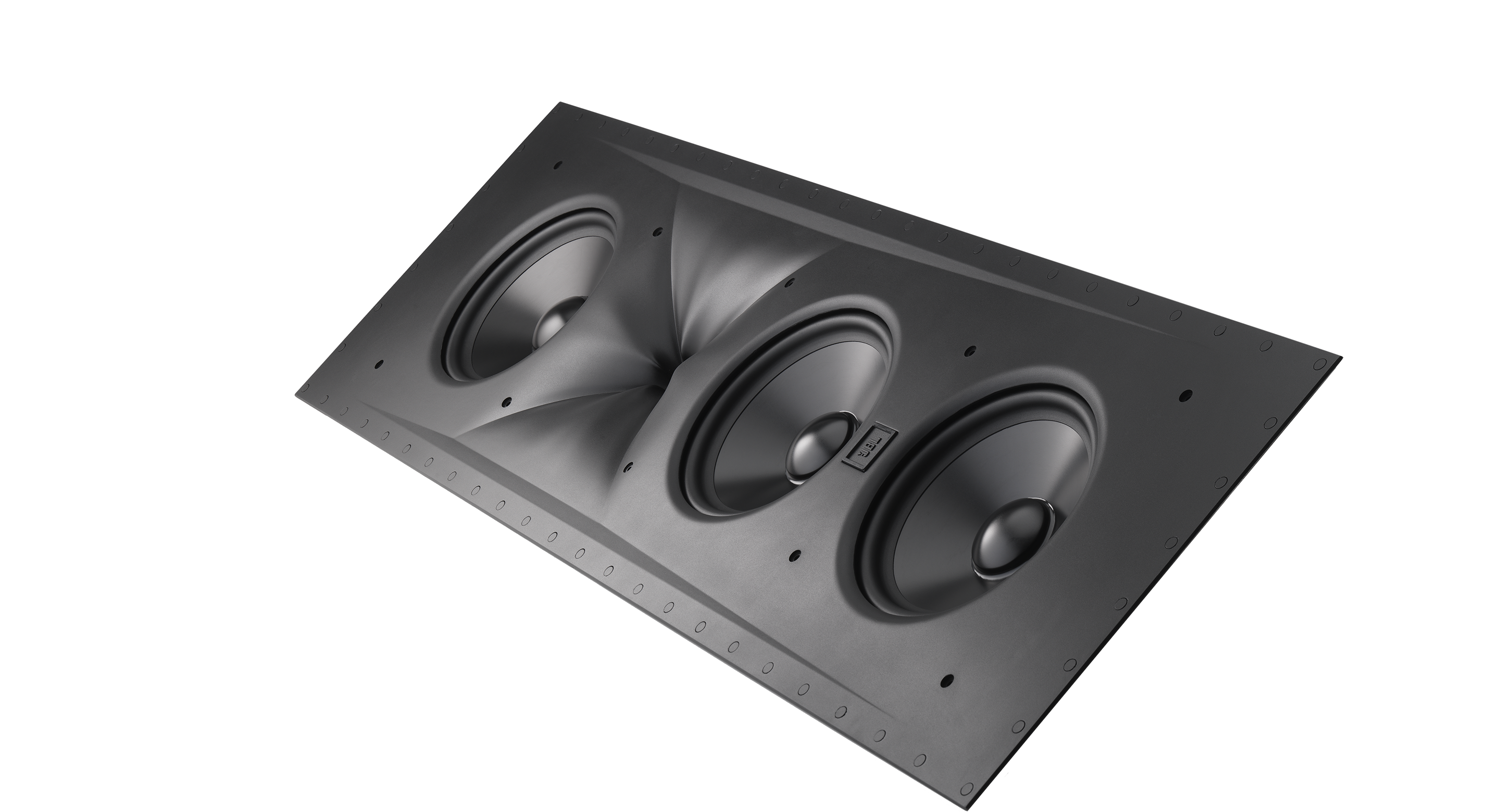

SCL-2 Patented High-Definition Imaging Horn Geometry - Image

Patented High-Definition Imaging Horn Geometry

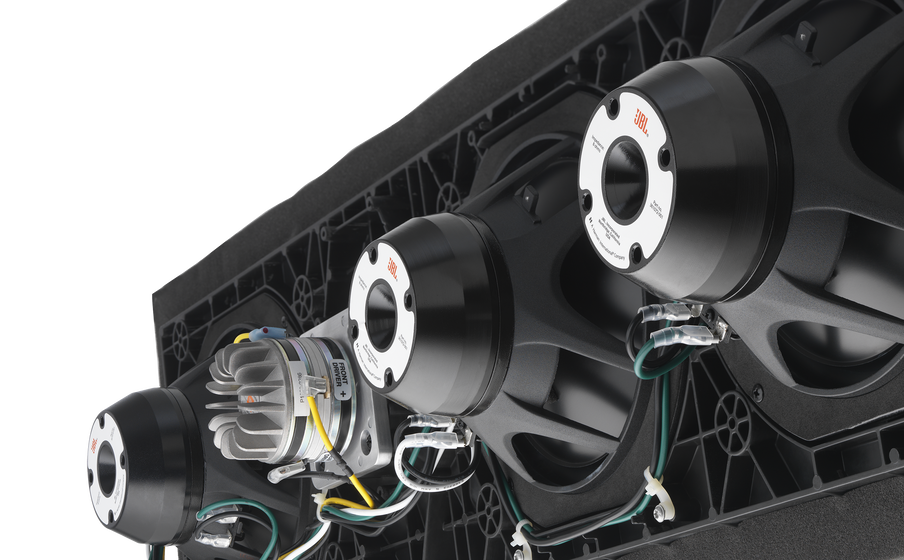

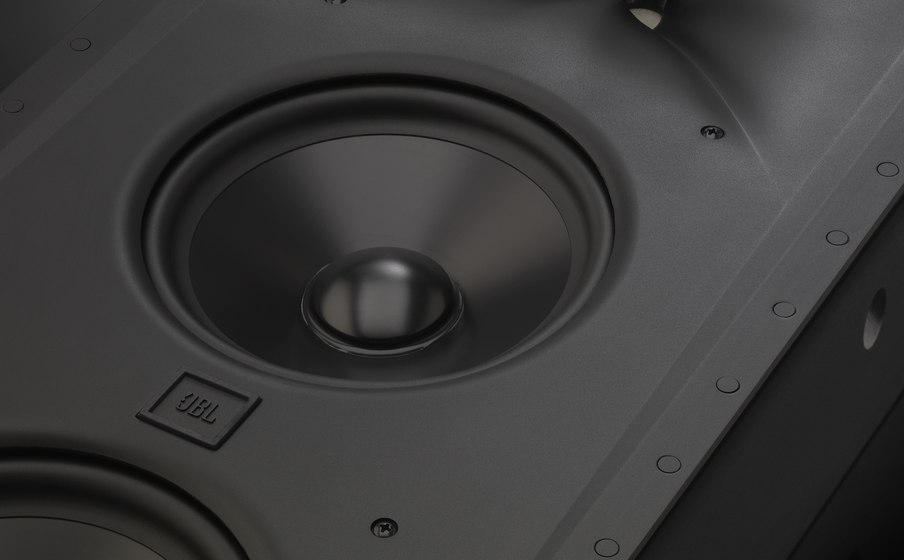

SCL-2 Triple 8-inch (200mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers - Image

Triple 8-inch (200mm) Cast-frame, Advanced Aluminum Matrix Cone Woofers

Features

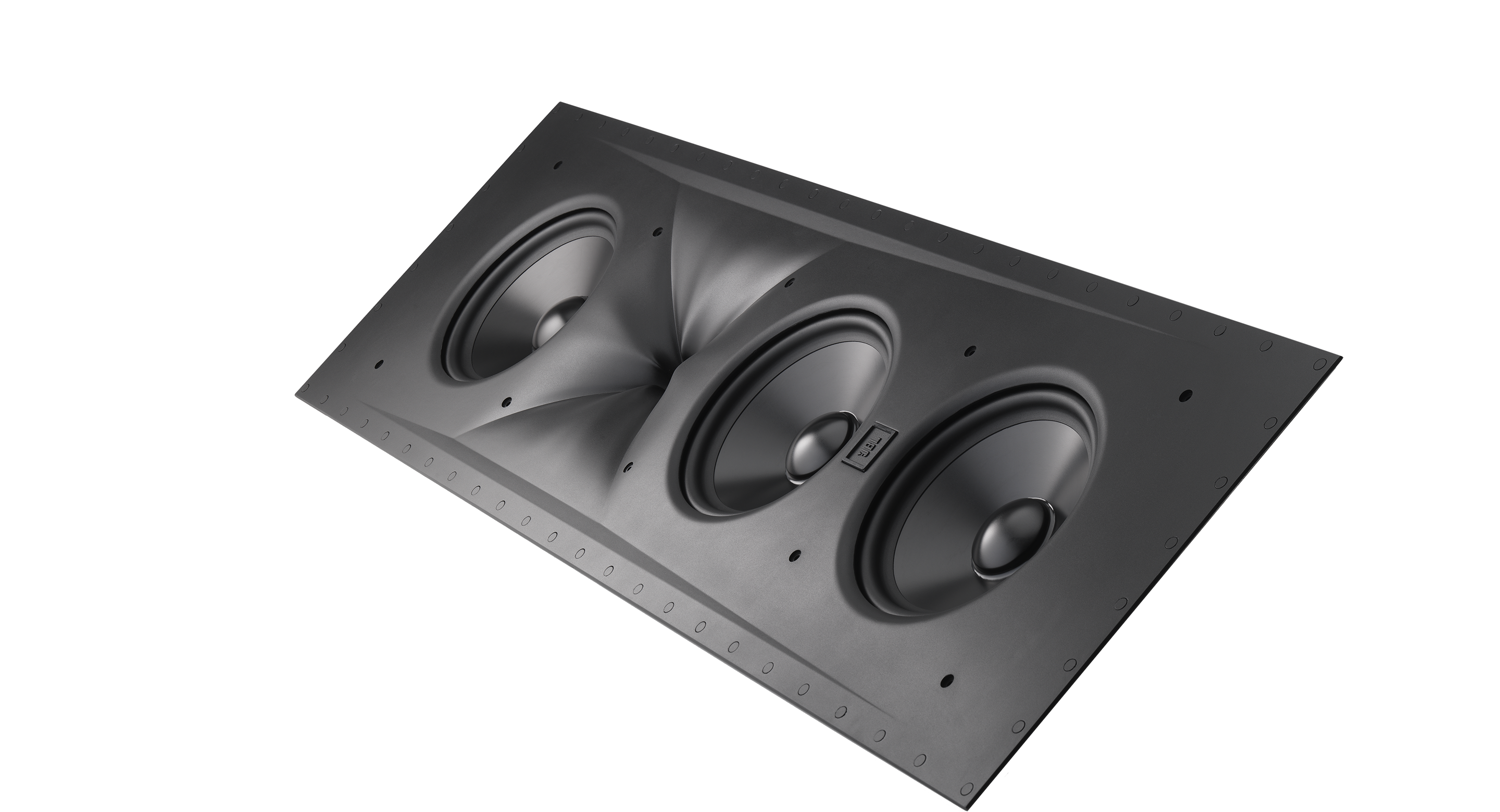

SCL-2 Sonoglass® baffle with Integrated MDF Enclosure and Isolation Mounting System - Image

Sonoglass® baffle with Integrated MDF Enclosure and Isolation Mounting System

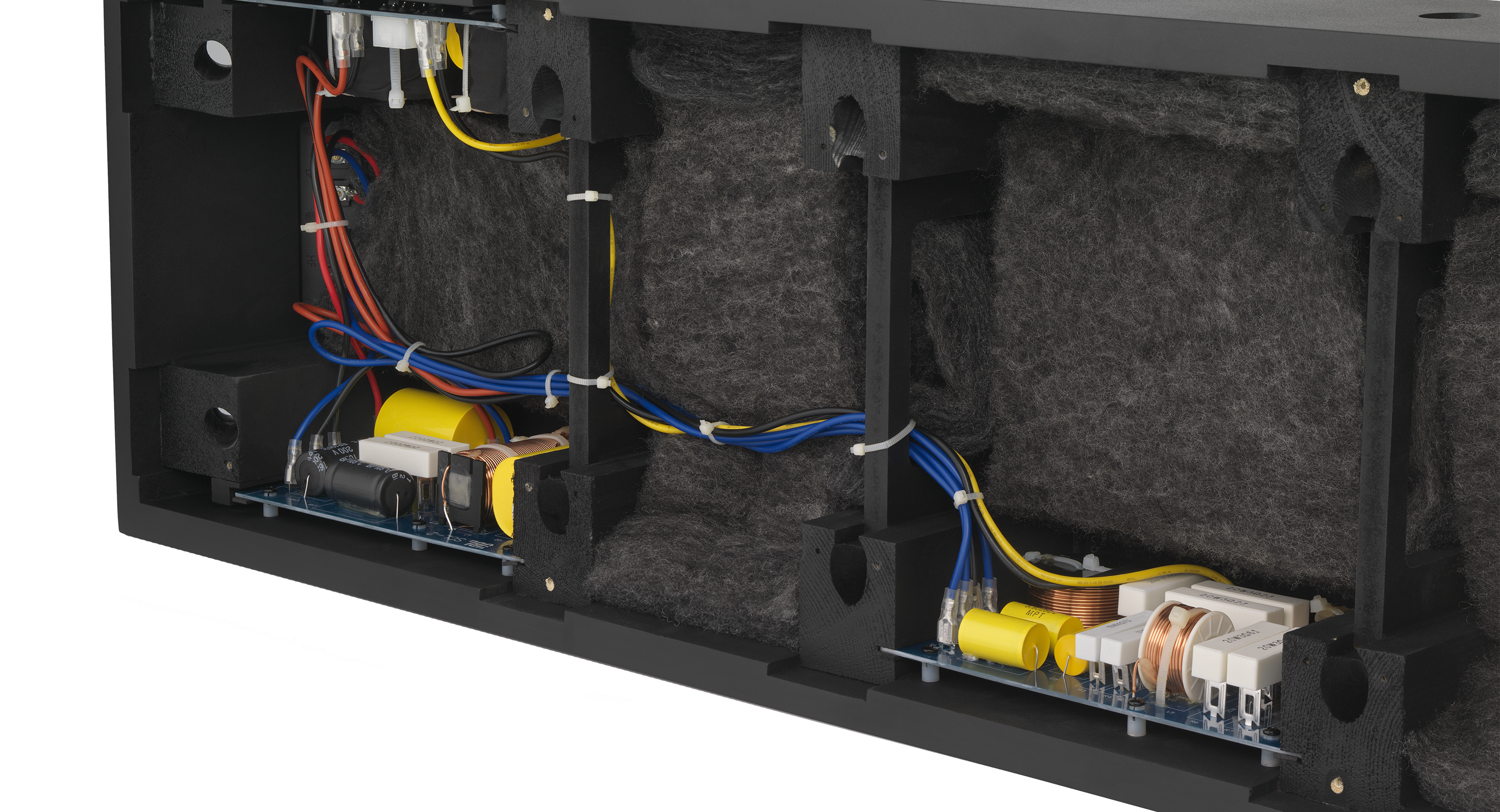

SCL-2 Advanced Crossover Network with Bi-wire/Bi-amp Capability - Image

Advanced Crossover Network with Bi-wire/Bi-amp Capability

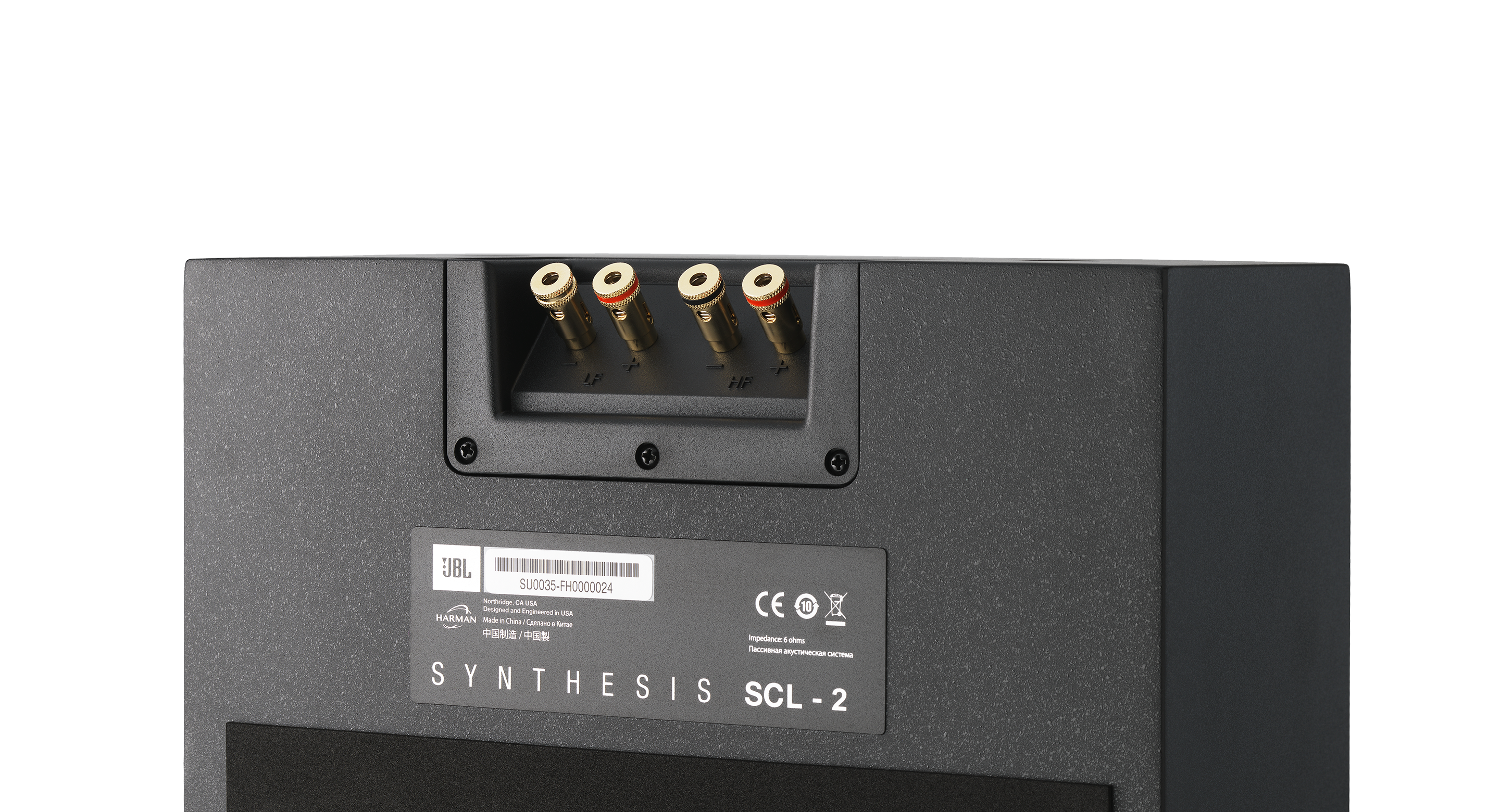

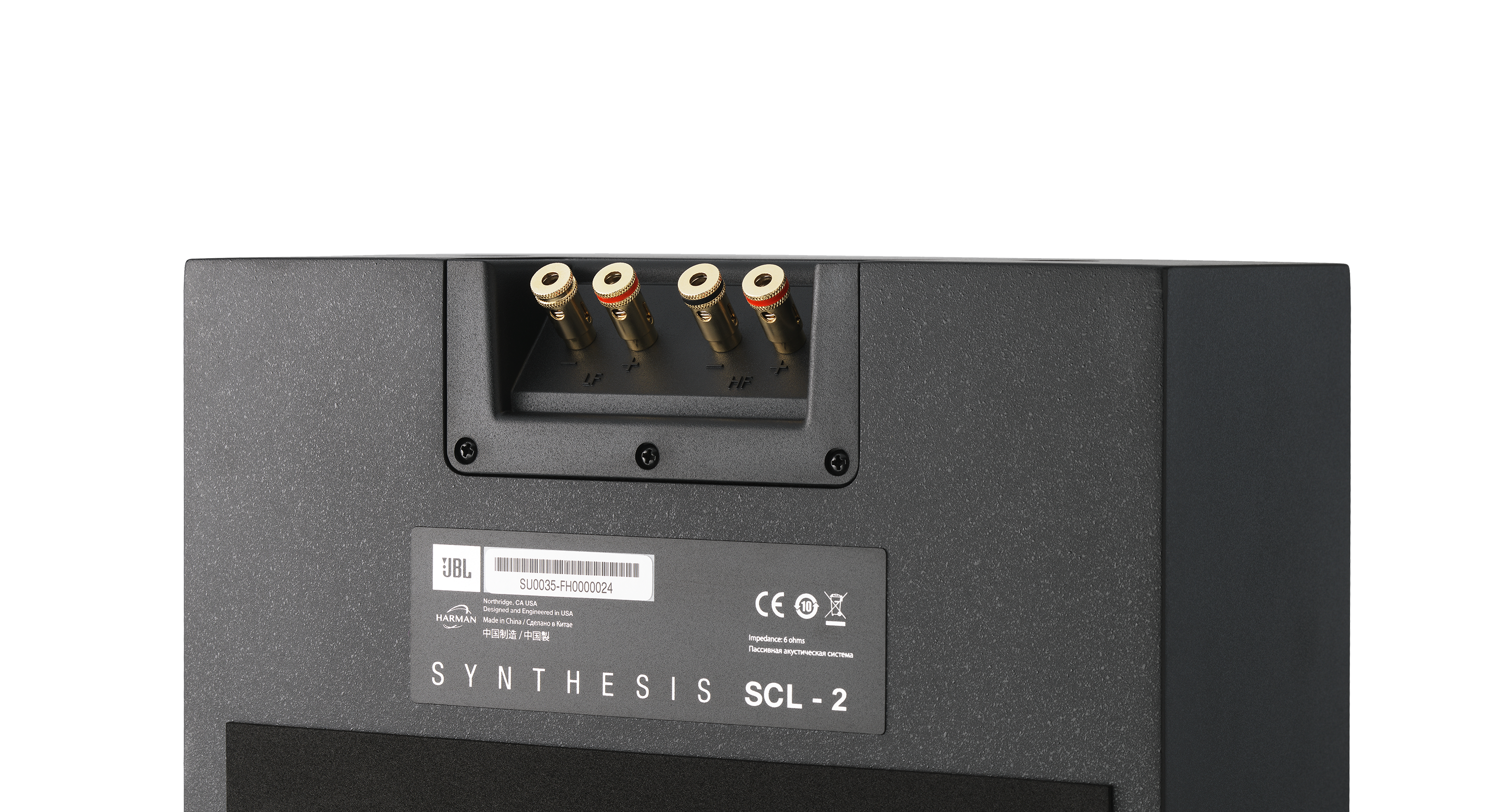

SCL-2 Dual Gold-plated Spring-loaded Binding Post Input Terminals - Image

Dual Gold-plated Spring-loaded Binding Post Input Terminals

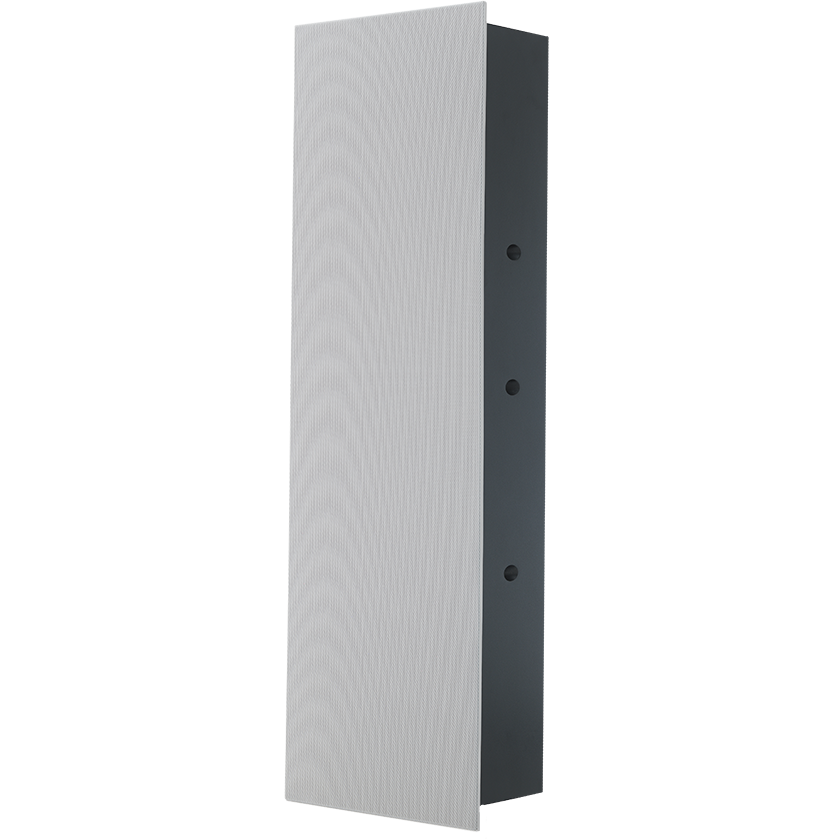

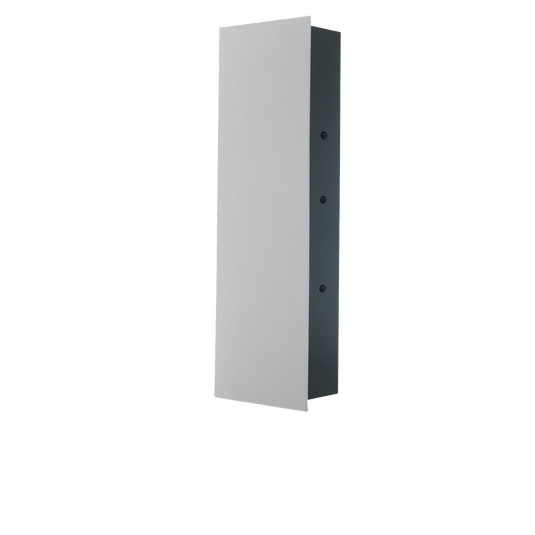

SCL-2 Zero-bezel, Magnetically-attached Paintable Grille - Image

Zero-bezel, Magnetically-attached Paintable Grille

Specs & Downloads

Item# JBLSCL-2

Description

SCL-2

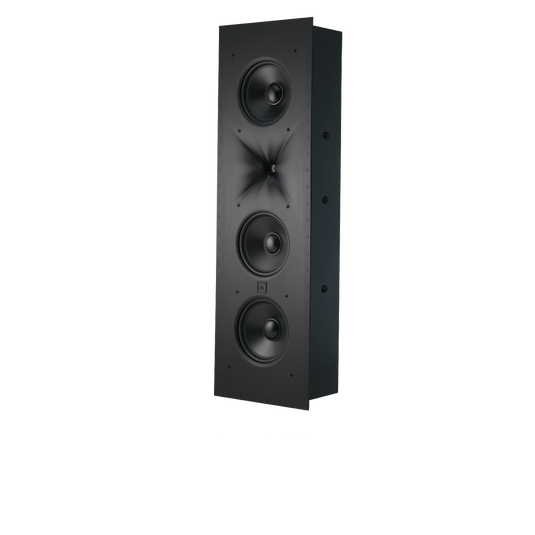

The SCL-2 is a custom in-wall loudspeaker designed primarily for use as an LCR or surround in larger systems. It features JBL's patented D2415K dual 1.5-inch (38mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Triple 8-inch (200mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2.5-way network configuration allowing for installation vertically or horizontally without lobing or other acoustical issues found in traditional designs. The integrated MDF enclosure is designed for installation in standard 2x6 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-2 delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.

General Specifications

Speaker type
2½-way in-wall loudspeaker
Low frequency transducer
Three 8” (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
Mid/High frequency transducer
D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
Maximum recommended power
445 Watts RMS (CEA-426B specification, calculated onto the SCL-2 rated load impedance)
Frequency response (-6 dB on-axis)
57 Hz – 25 kHz
Coverage area (-6dB@20kHz)
80 x 70 Degrees (Hor x Vert)
Coverage area (-6dB@10kHz)
100 x 100 Degrees (Hor x Vert)
Sensitivity (2.83V@1m)
92dB
Nominal Impedance
6 Ohm
Crossover frequencies
225Hz; 1.3kHz
Enclosure type
Sealed in-wall mount with included back box
Inputs
Dual gold-plated binding posts
Finished grille dimensions (H x W)
40.25” x 12.84” (1022.4mm x 326mm)
Final cutout dimensions with backbox (H x W)
38.5” x 11.75” (977.9mm x 298.5mm)
Mounting depth with backbox
5.8” (147mm)
Weight
53.5 lb (24.3 kg)
Finishes
Matte Black with white paintable grille
