GTO804
3.8 (4)
Write a review

Features

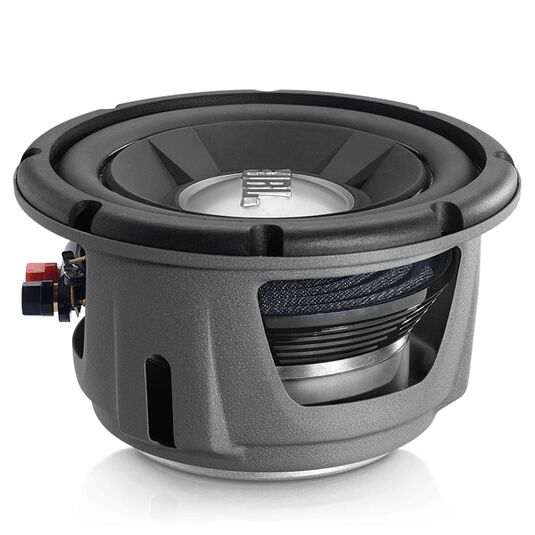

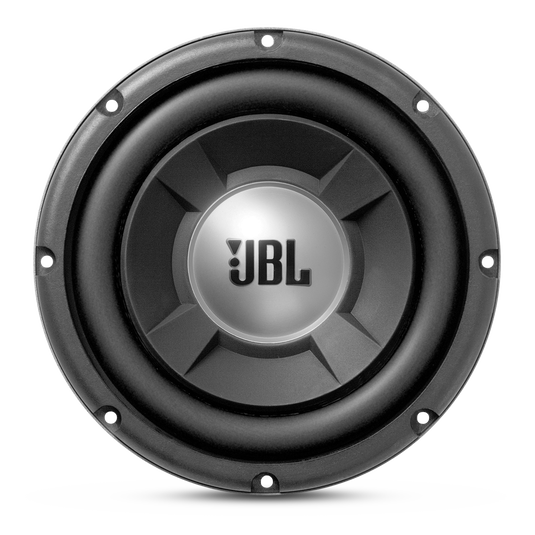

GRAND TOURING GTO 804 Big bass with polypropylene woofer cone - Image

Big bass with polypropylene woofer cone

Road noise can destroy realistic audio that always requires true low frequencies. Polypropylene delivers rigidity with good internal damping and complete weather-resistance. You get an impossible-to-miss increase in thumping bass.

GRAND TOURING GTO 804 Reduced-depth, a full inch shallower than most - Image

Reduced-depth, a full inch shallower than most

A new, JBL-proprietary frame, unique inboard motor structure and new cone design create a woofer that is a full inch shallower than competing brands’ equivalent-sized models, expanding installation options. You can drive a compact car with sound that’s anything but compact.

GRAND TOURING GTO 804 Exceptional venting for increased power handling - Image

Exceptional venting for increased power handling

Woofer motor structures heat up during use, causing distortion or power compression that reduces music’s dynamic range, robbing the sound of its realism. JBL® uses vented motor structures and polepieces that get rid of more heat to deliver more serious bang.

GRAND TOURING GTO 804 Outstanding audio output, low distortion - Image

Outstanding audio output, low distortion

With 200 watts RMS and 800 watts of peak power handling and a frequency response of 30Hz to 400Hz, the GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control for lower distortion at excursion limits.

GRAND TOURING GTO 804 Outstanding audio output, low distortion - Image

Outstanding audio output, low distortion

With 200 watts RMS and 800 watts of peak power handling, the GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control at excursion limits.

Specs & Downloads

Item# GTO804

Description

Hi-roll rubber surrounds provide exceptional cone edge suspension and long-throw linearity with the proper amount of control and stability at excursion limits. Vented pole pieces provide additional cooling to the motor structure, resulting in an increase in the subwoofer’s thermal power handling capability.

General Specifications

Series
Grand Touring
Size
8"
MSRP U.S.
$99.95 each

Audio Specifications

Nominal Impedance
4 ohms
Peak Power
800W
Frequency Response
30Hz–400Hz
Sensitivity
(2.83V/1m) 91dB
Power Handling (Peak)
800W
Power Handling (RMS)
200W

Dimensions

External Diameter (in)
8-1/4
Mounting Depth (mm)
112
Mounting Cutout Diameter (in)
7-3/16
Mounting Depth (in)
4-3/8
External Diameter (mm)
210
Mounting Cutout Diameter (mm)
183

Documents & Downloads
